Digital Conference System

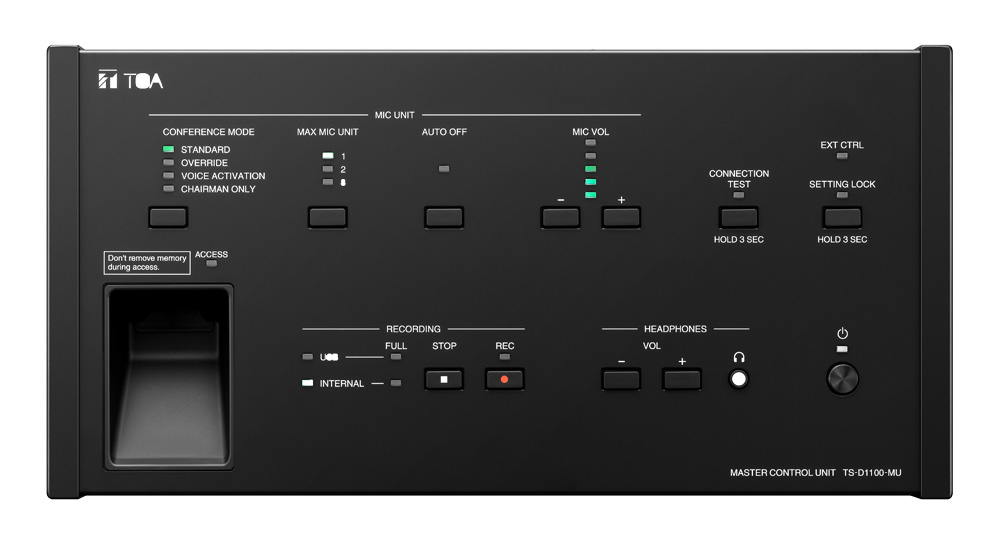

TS-D1100-MU

The TS-D1100-MU Master Control Unit of TOA Digital Conference System is designed with simple connection to it's Chairman and Delegate units using CAT5e STP LAN cables. This Master Control Unit is equipped with recording function, PC control (*¹) and one-touch connection confirmation capability. A simple daisy chain configuration can connection up to 32 Chairman/Delegate units. And for further expansion of the system, up to 5 TS-D1000-SU Sub Control Units can be added, making it possible to connect up to as many as 246 Chairman/Delegate units. Connection to a PC enables audio input and output during web meetings and conferences, providing participants with clear, easy-to-hear audio.

The TS-D1100-MU is also equipped with FES (feedback suppression), enabling effective control of acoustic feedback. An internal MP3 recorder makes it possible to record all conference contents to either a connected USB memory drive or internal memory.

With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).

(*¹) free operating software provided

Z-TSD100C-AS

The Digital conference system's dedicated Z-TSD100C-AS Chairman unit can be instantly used by simply connecting it to the Z-TSD110M-AS Master control unit using CAT5e STP LAN cables.
It can also be optionally equipped with their the TS-D1000-M1 Standard microphone or the TS-D1000-M2 Long microphone.

Z-TSD100D-AS

The Digital Conference System's dedicated Z-TSD100D-AS Delegate unit can be instantly used by simply connecting it to the Z-TSD110M-AS Master Control unit using CAT5e STP LAN cables.
It can also be optionally equipped with either the TS-D1000-M1 Standard microphone or the TS-D1000-M2 Long microphone.

Z-TSD110M-AS 1

The Z-TSD110-M-AS Master Control Unit of TOA's Digital Conference System is designed to be used by way of simple connection to its Chairman and Delegate units using CAT5e STP LAN cables. This Master Control Unit is also equipped with a recording function, PC control (*1), and one-touch connection confirmation capability. Up to 32 Chairman/Delegate units can be connected in a simple daisy chain configuration. However, for further expansion, up to 5 TS-D1000-SU Sub Control units can be added to the system, making it possible to connect as many as 246 Chairman/Delegate units in one fully integrated conference system. Connection to a PC enables audio input and output during Web meetings and conferences, providing participants with clear, easy-to-hear audio.

The Z-TSD110M-AS is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition, the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).

(*1) Relevant control software is supplied on a custom-made basis.

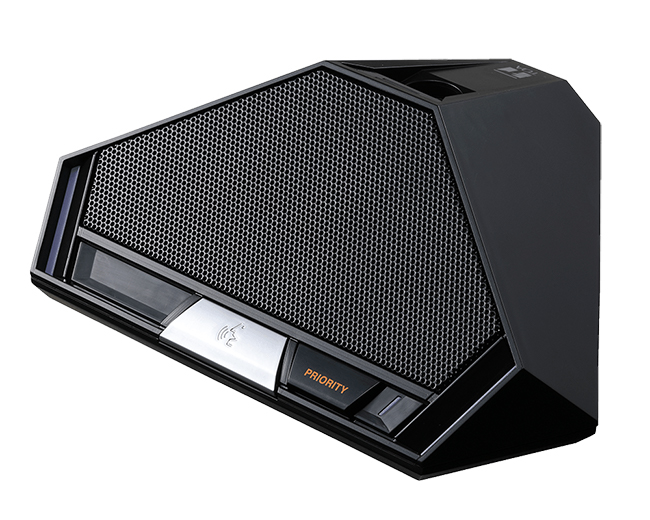

TS-D1000-CU

The TS-D1000-CU Chairman Unit of the TOA's Digital Conference System can be instantly used by simply connecting it to the TS-D1000-MU or TS-D1100-MU Master Control Unit using CAT5e STP LAN cables. Option microphones, TS-D1000-M1 or TS-D1000-M2 comes in 2 different length to fit every application's need.

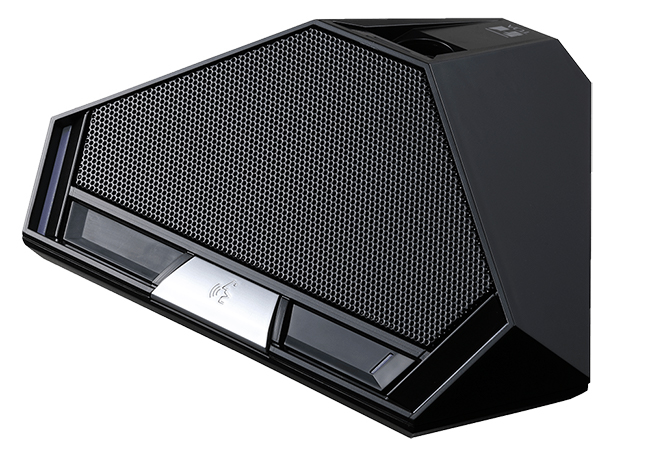

TS-D1000-DU

The TS-D1000-DU Delegate Unit of the TOA's Digital Conference System can be instantly used by simply connecting it to the TS-D1000-MU or TS-D1100-MU Master Control Unit using CAT5e STP LAN cables. Option microphones, TS-D1000-M1 or TS-D1000-M2 comes in 2 different length to fit every application's need.

TS-D1000-M1

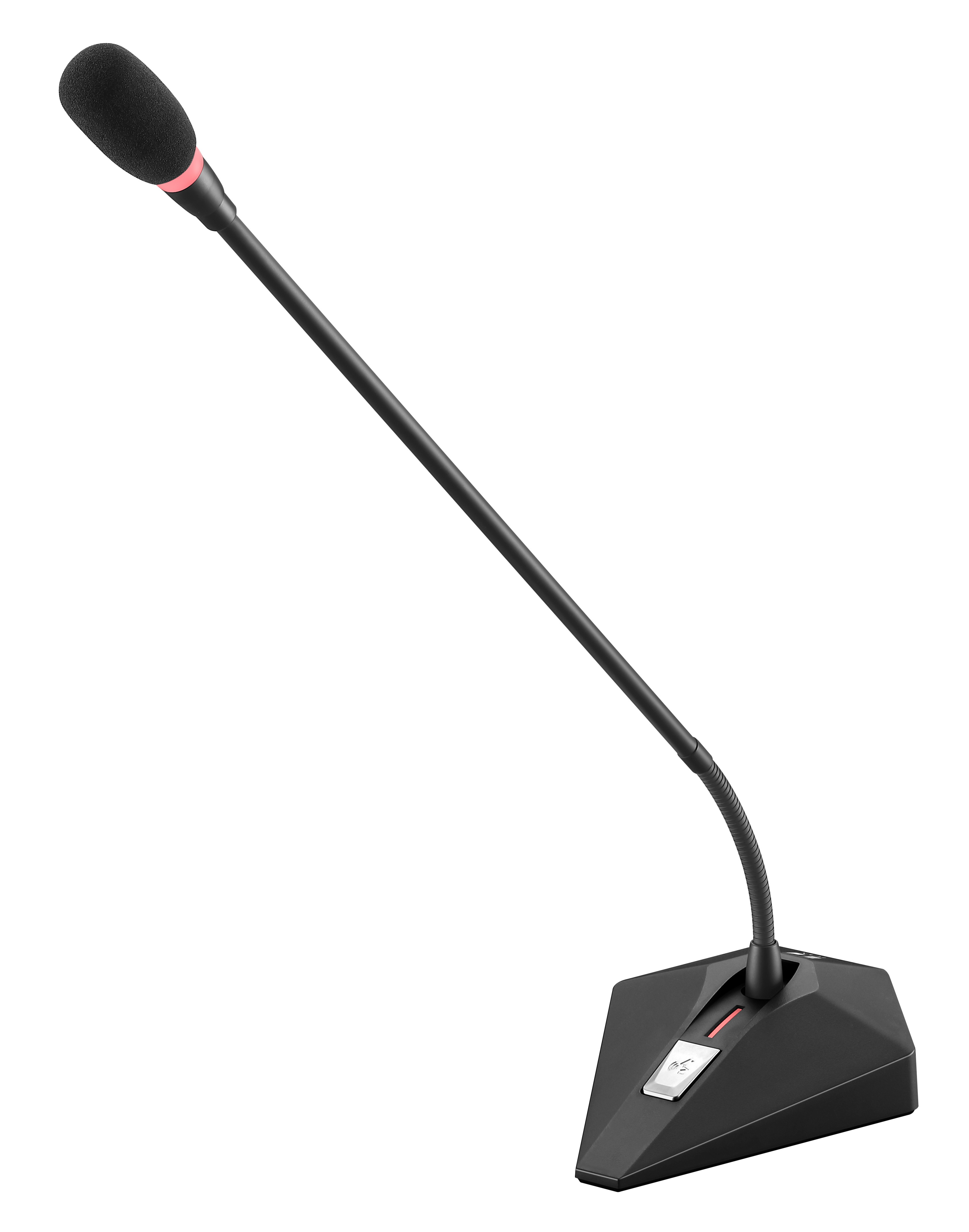

The TS-D1000-M1 Microphone is a dedicated component of the Digital Conference System's Chairman unit and Delegate unit. Its mic head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance.

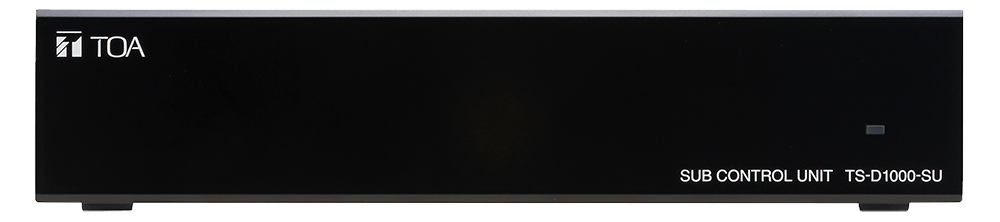

TS-D1000-SU

TS-D1000-M2

The TS-D1000-M2 Long Microphone is a dedicated component of the Digital Conference System's Chairman unit and Delegate unit. Its mic head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance.

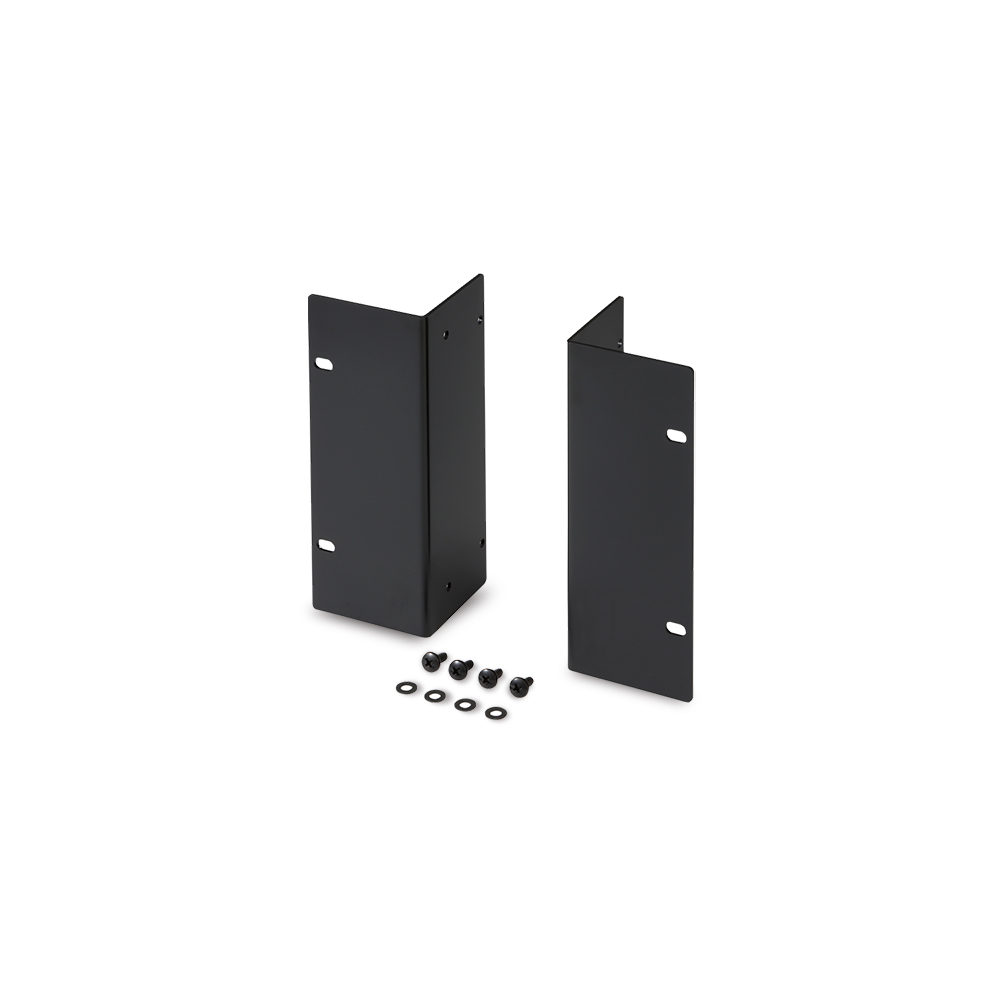

MB-TS920

The MB-TS920 Rack Mounting Bracket is designed for exclusive use with the Central units TS-820, TS-820RC and TS-920RC or the Master Control units TS-D1000-MU, TS-D1100-MU of the TOA Conference Systems.The MB-TS920 is a 4-units size that can be mounted in an EIA Standard equipment rack.

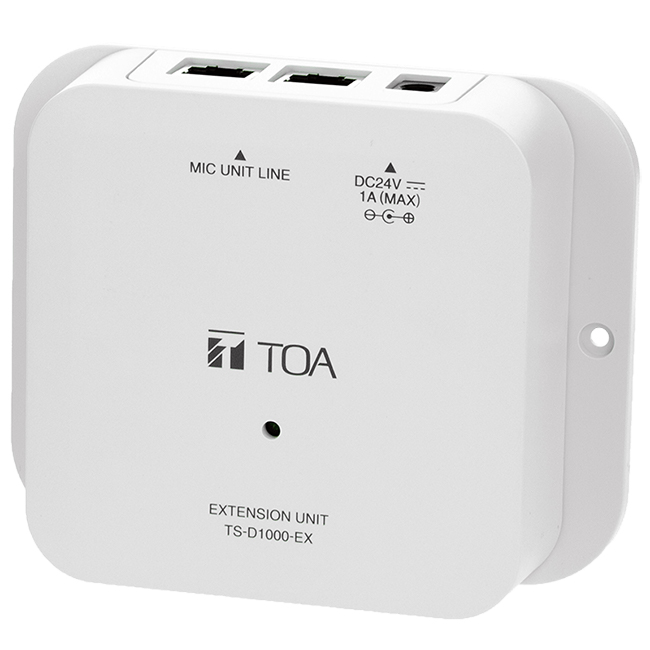

TS-D1000-EX

The TS-D1000-EX Extension Unit is the Digital Conference System's dedicated unit for extending the cable distance of the system to up to 50m. One Extension Unit can be connected to each wiring line between Master/Sub Control units and Chairman/Delegate units at the end of the daisy chain using CAT5e STP LAN cables.
