Z-TSD110 Series Digital Conference System
The Digital conference system's dedicated Z-TSD100C-AS Chairman unit can be instantly used by simply connecting it to the Z-TSD110M-AS Master control unit using CAT5e STP LAN cables.
It can also be optionally equipped with their the TS-D1000-M1 Standard microphone or the TS-D1000-M2 Long microphone.

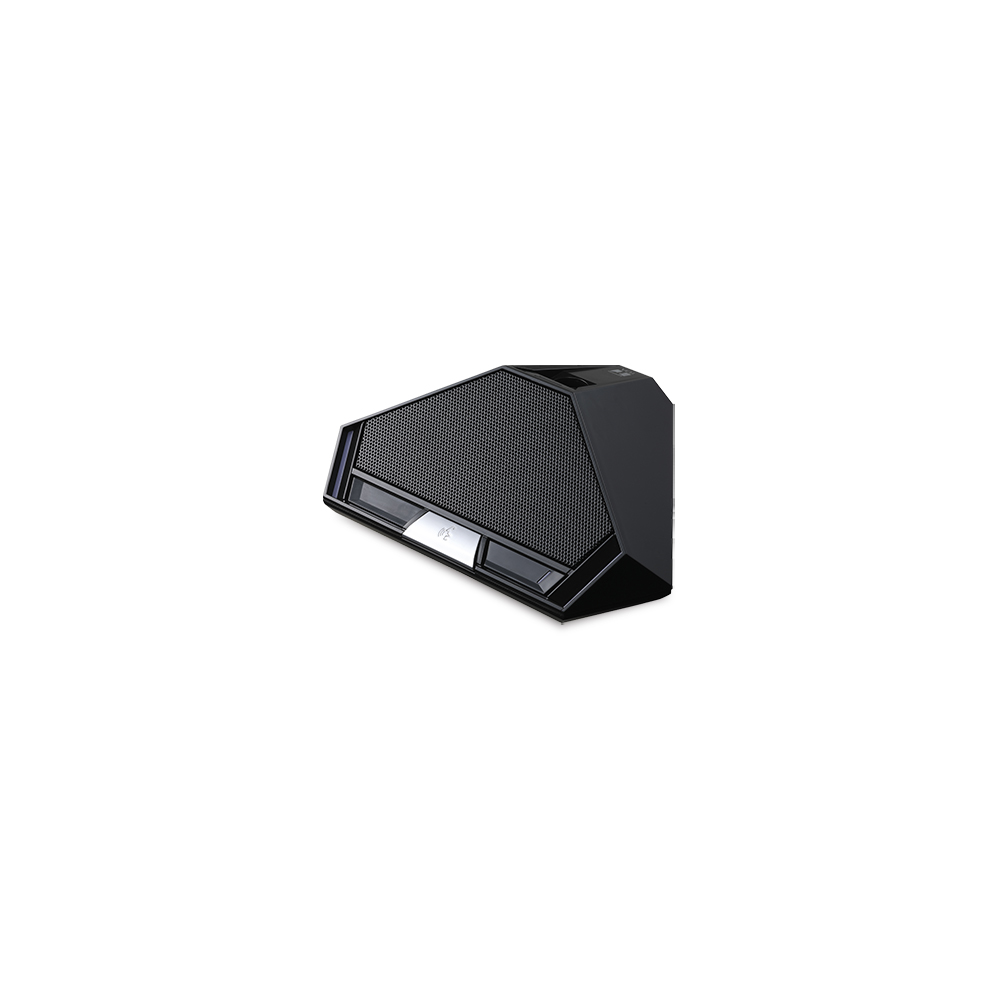

The Digital Conference System's dedicated Z-TSD100D-AS Delegate unit can be instantly used by simply connecting it to the Z-TSD110M-AS Master Control unit using CAT5e STP LAN cables.
It can also be optionally equipped with either the TS-D1000-M1 Standard microphone or the TS-D1000-M2 Long microphone.

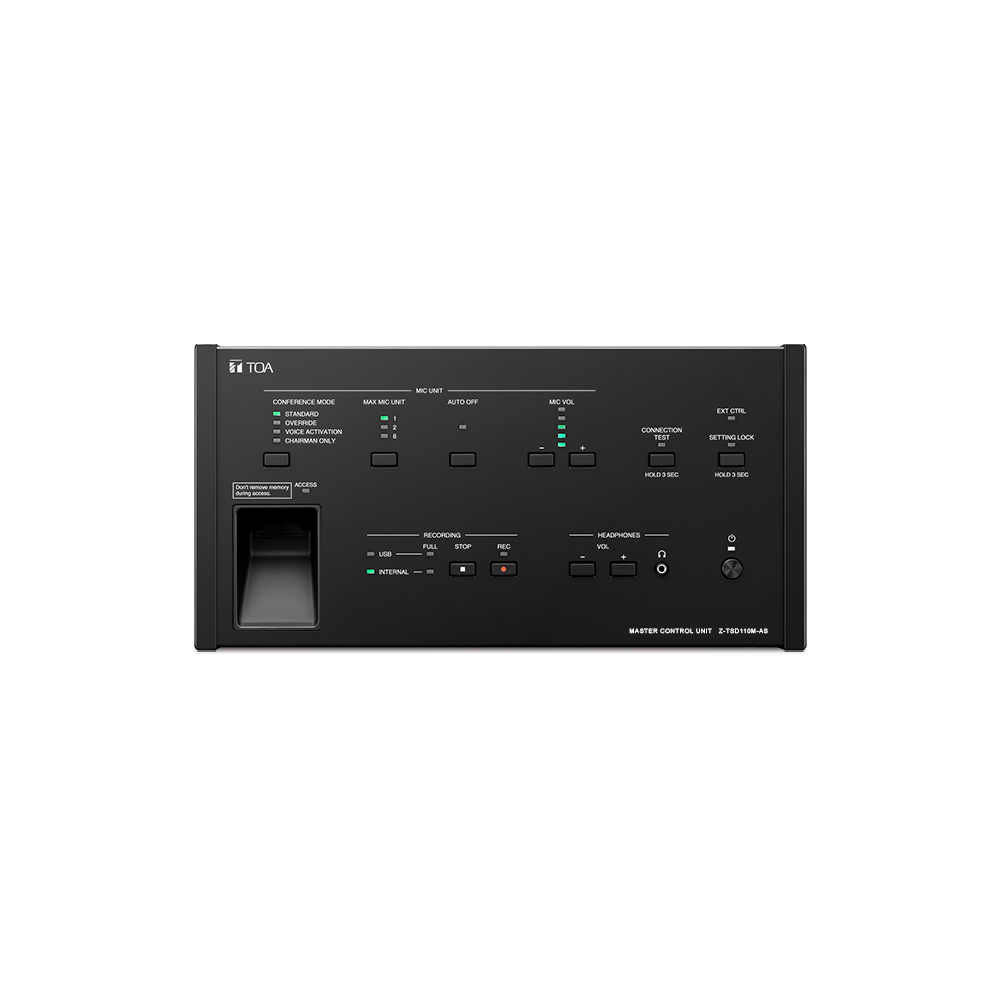

The Z-TSD110-M-AS Master Control Unit of TOA's Digital Conference System is designed to be used by way of simple connection to its Chairman and Delegate units using CAT5e STP LAN cables. This Master Control Unit is also equipped with a recording function, PC control (*1), and one-touch connection confirmation capability. Up to 32 Chairman/Delegate units can be connected in a simple daisy chain configuration. However, for further expansion, up to 5 TS-D1000-SU Sub Control units can be added to the system, making it possible to connect as many as 246 Chairman/Delegate units in one fully integrated conference system. Connection to a PC enables audio input and output during Web meetings and conferences, providing participants with clear, easy-to-hear audio.
The Z-TSD110M-AS is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition, the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).
(*1) Relevant control software is supplied on a custom-made basis.
