Modules and Accessories for 9000 Series

Modules and Accessories for 9000 Series

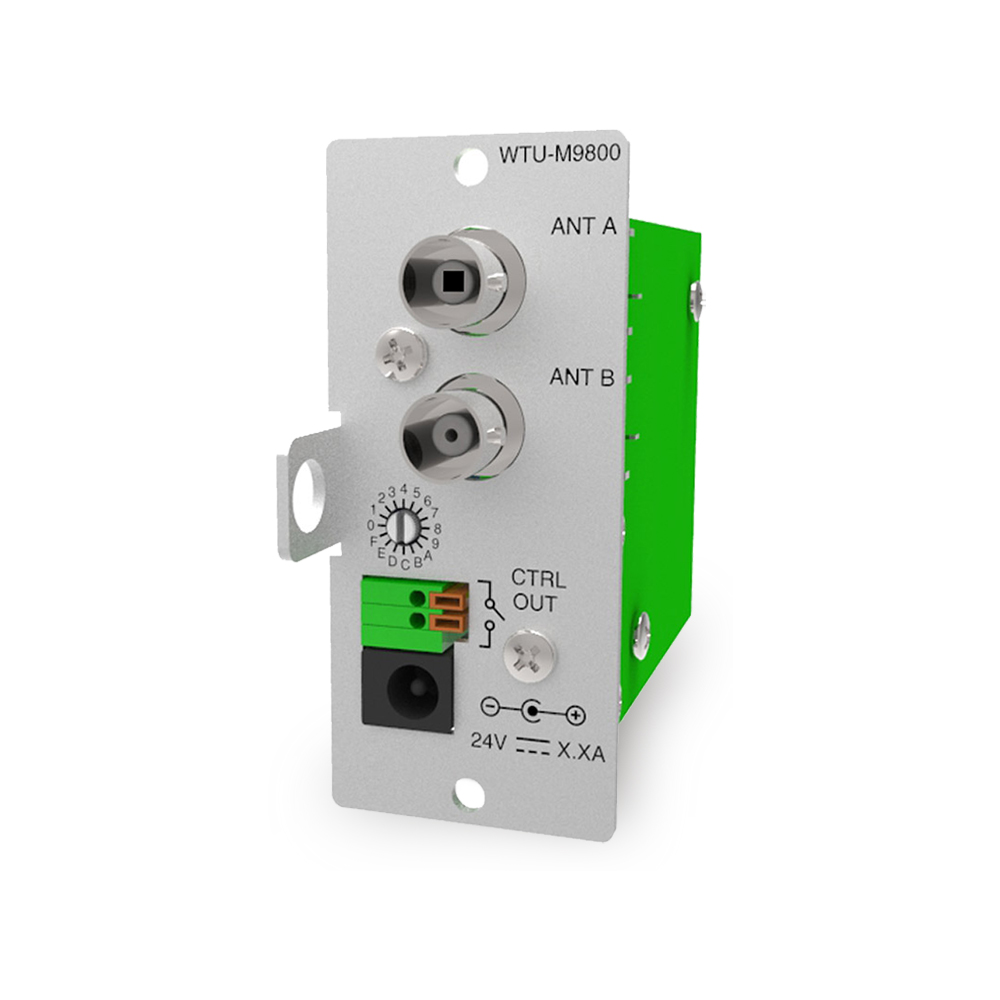

WTU-M9800 Wireless Tuner Module

WTU-M9800 Wireless Tuner Module

WTU-M9800 *AS Model*

WTU-M9800 Wireless Tuner Module is designed to plugged into the 9000 series, 900 series and TOA's other equipment. It is used in conjunction with UHF wireless equipment for vocal or speech reinforcement applications. Its built-in circuit minimizes the influence of ambient noise.

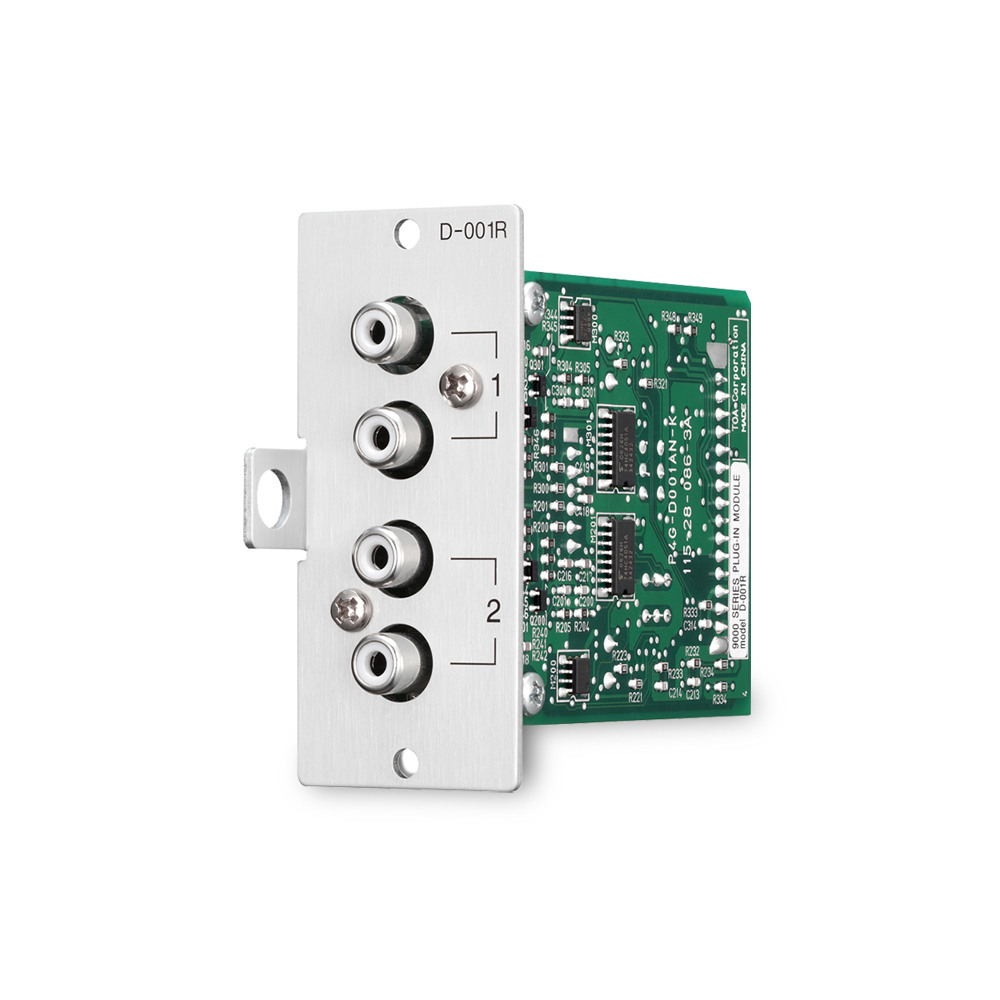

D-001R Line Input Module with DSP

D-001R Line Input Module with DSP

D-001R

The D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks. Input signals to both channels are mixed together. The D-001R can process effect for TONE/EQ/COMPRESSOR to two inputs independently.

D-001T Dual Mic/Line Input Module with DSP

D-001T Dual Mic/Line Input Module with DSP

D-001T

The D-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced inputs. The D-001T can handle signals ranging from microphone level to line level by controlling their input sensitivity in 9 increments from -60 dB to -10 dB. Phantom power (+24 V) can be supplied for condenser microphone use. The D-001T can process effect for TONE/EQ/COMPRESSOR to two inputs independently.

T-001T Dual Line Output Expansion Module with DSP

T-001T Dual Line Output Expansion Module with DSP

T-001T

The T-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced outputs. It can drive load of 600 Ω up to +16 dB. It can process effect for TONE/EQ/COMPRESSOR to two outputs independently..

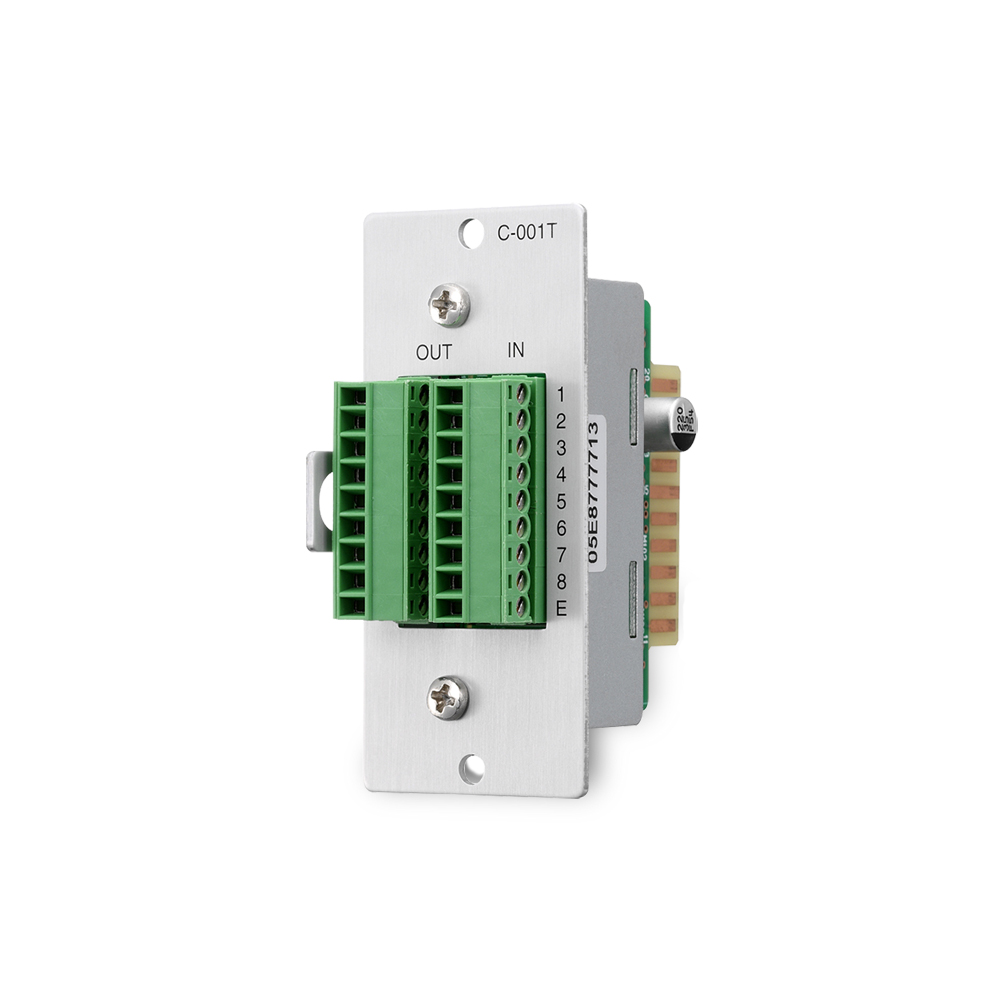

C-001T Input/Output Control Module

C-001T Input/Output Control Module

C-001T

The C-001T is a Control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.

AN-001T Ambient Noise Controller Module

AN-001T Ambient Noise Controller Module

AN-001T

The AN-001T is a plug-in module of 2-channel ambient noise detector designed for use with the 9000 series amplifiers. It automatically adjusts the output volume in response to the change of ambient noise level. The AN-001T can handle input signals from microphone level (-60 dB) to line level (-10 dB) by controlling the gain in 9 steps. Phantom power (+24 V) can be supplied for condenser microphone use.

RC-001T Remote Control Module

RC-001T Remote Control Module

RC-001T

The RC-001T is an interface module to connect between the 9000M2 Series amplifier and the ZM-9011, ZM-9012, ZM-9013, or ZM-9014 Remote control panel of data communication type. Up to 16 remote control panels can be connected to the RC-001T.

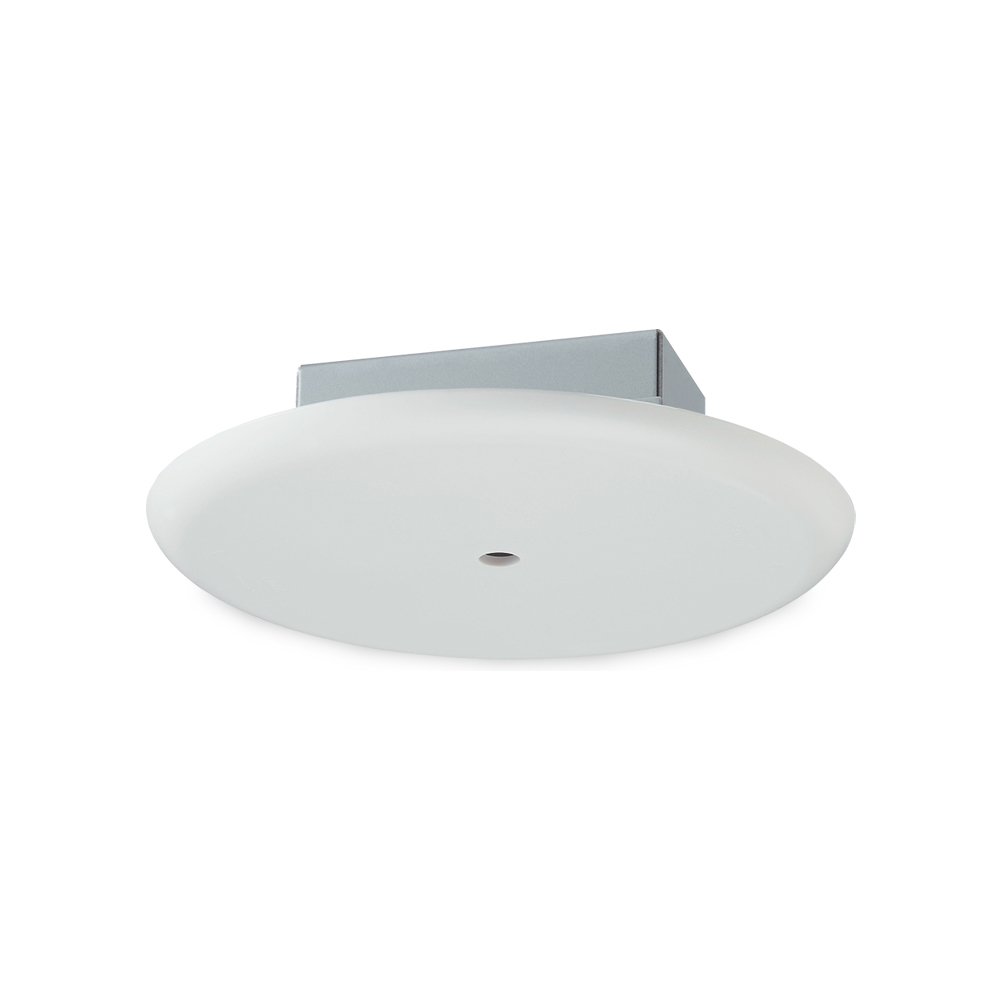

AN-9001 Ambient Noise Sensing Microphone

AN-9001 Ambient Noise Sensing Microphone

AN-9001

The AN-9001 is an electret condenser microphone designed for ambient noise detection. It is used in conjunction with the AN-001T Ambient Noise Sensor Input module in the 9000 Series system. It can be mounted in a 1-gang electrical box in the ceiling or wall.

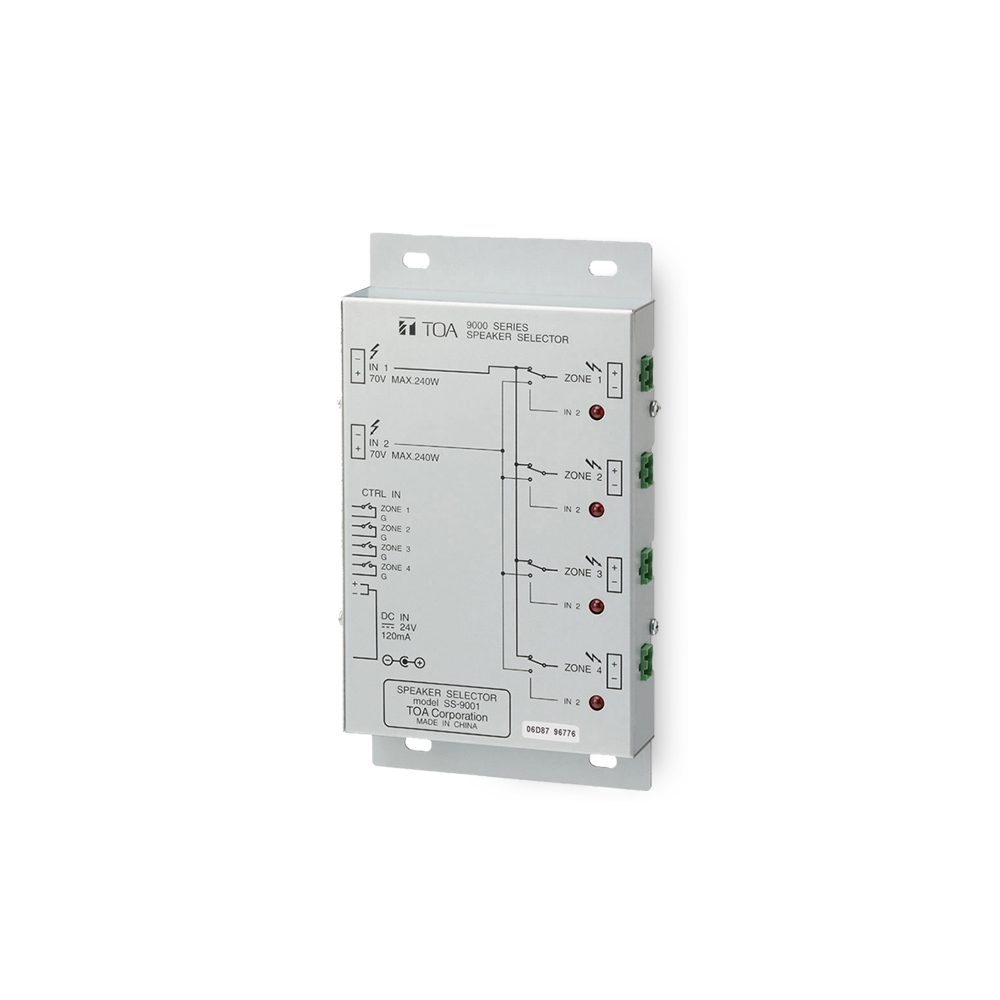

SS-9001 Speaker Selector

SS-9001 Speaker Selector

SS-9001

The SS-9001 is a speaker selector used in conjunction with the 9000 series amplifier. It outputs 2 input signals to 4 different zones.

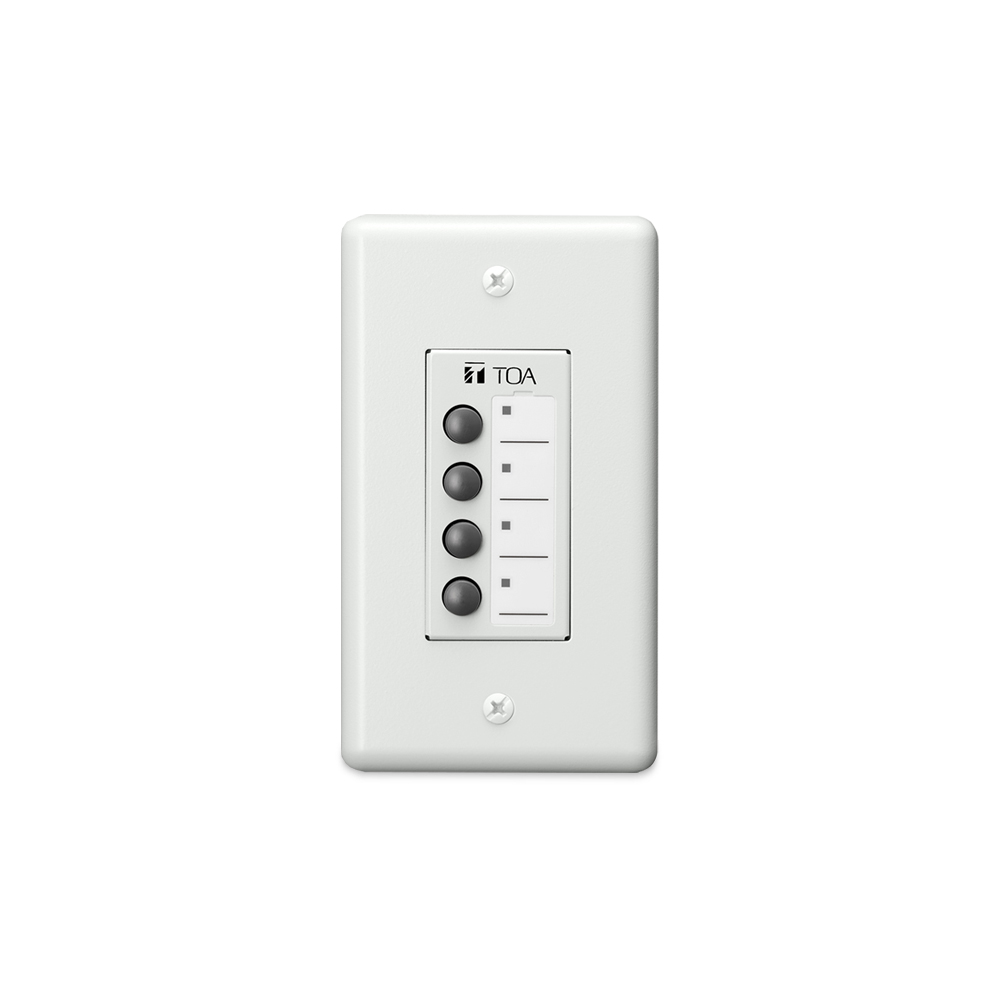

ZM-9011 Remote Control Panel

ZM-9011 Remote Control Panel

ZM-9011

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9011 is a wall mounted remote control panel having 4 buttons. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 1-gang electrical box in the wall.

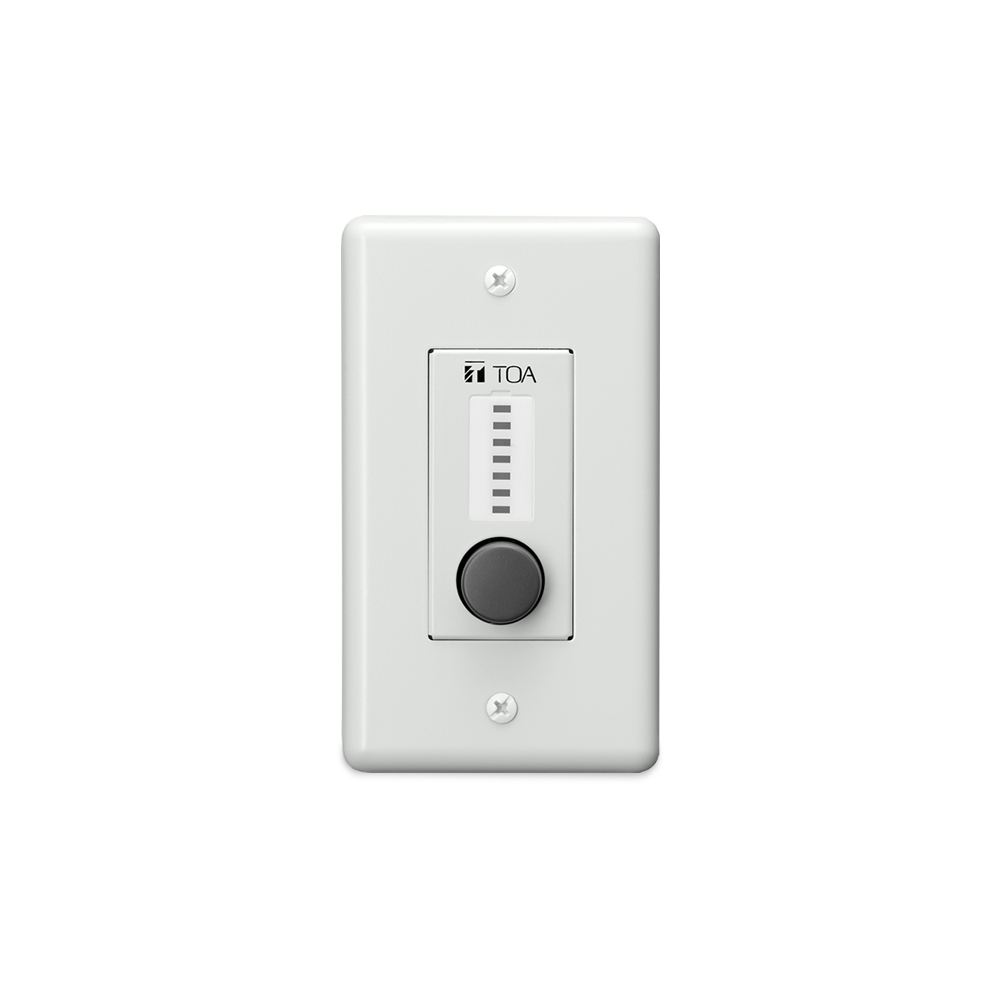

ZM-9012 Remote Control Panel

ZM-9012 Remote Control Panel

ZM-9012

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9012 is a wall mounted remote control panel having a volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 1-gang electrical box in the wall.

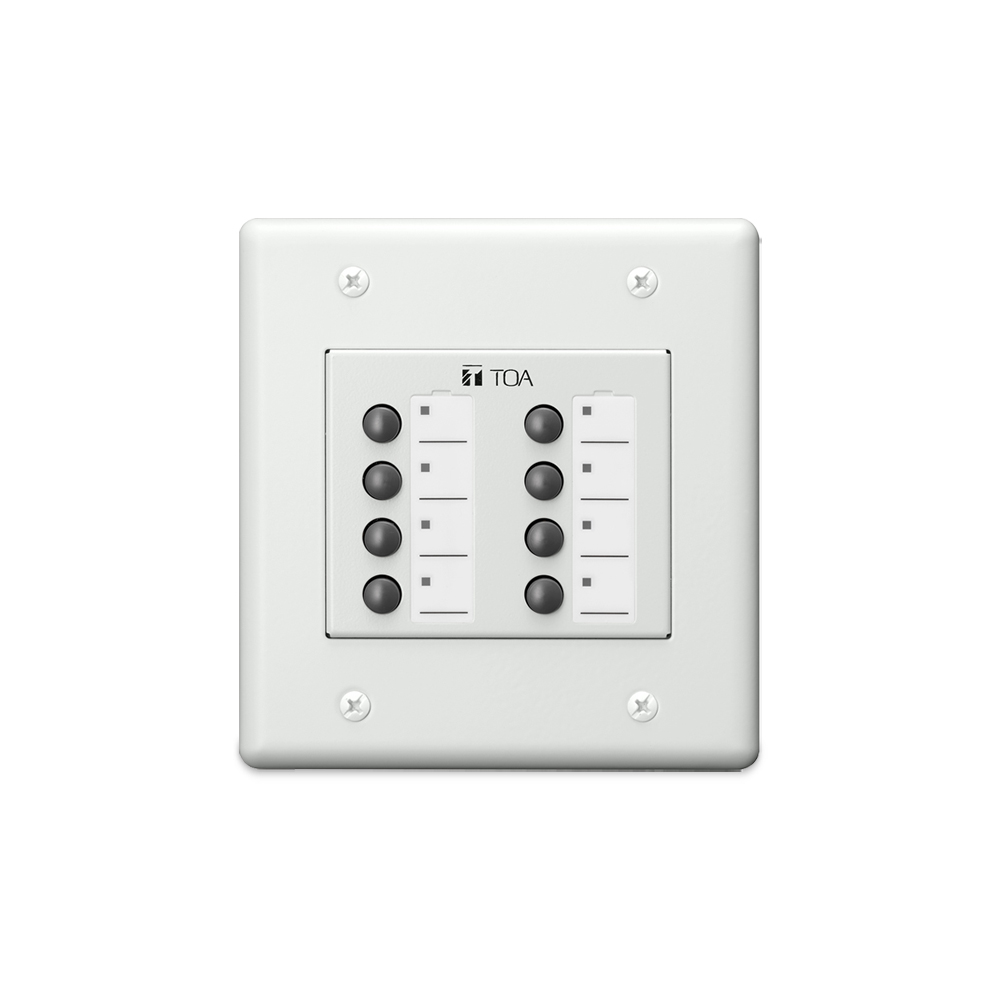

ZM-9013 Remote Control Panel

ZM-9013 Remote Control Panel

ZM-9013

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9013 is a wall mounted remote control panel having 8 buttons. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 2-gang electrical box in the wall.

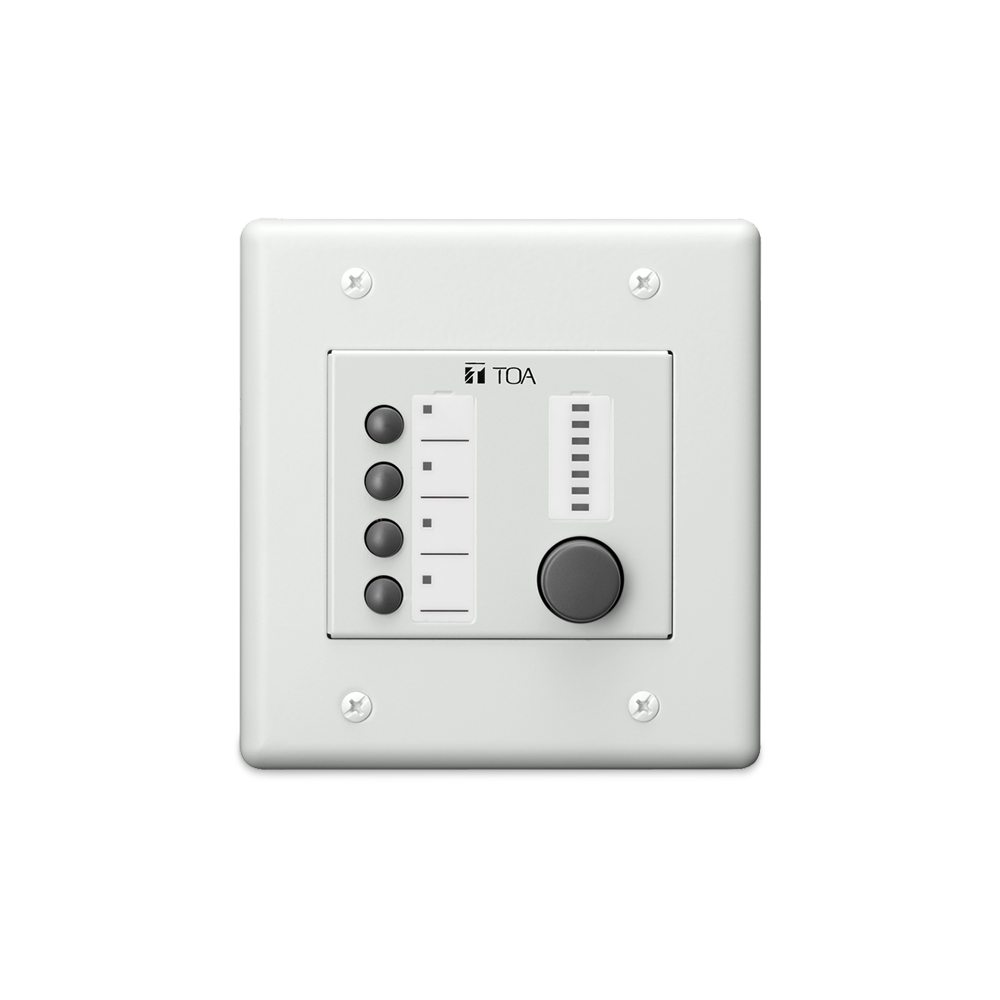

ZM-9014 Remote Control Panel

ZM-9014 Remote Control Panel

ZM-9014

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9014 is a wall mounted remote control panel having 4 buttons and 1 volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 2-gang electrical box in the wall.

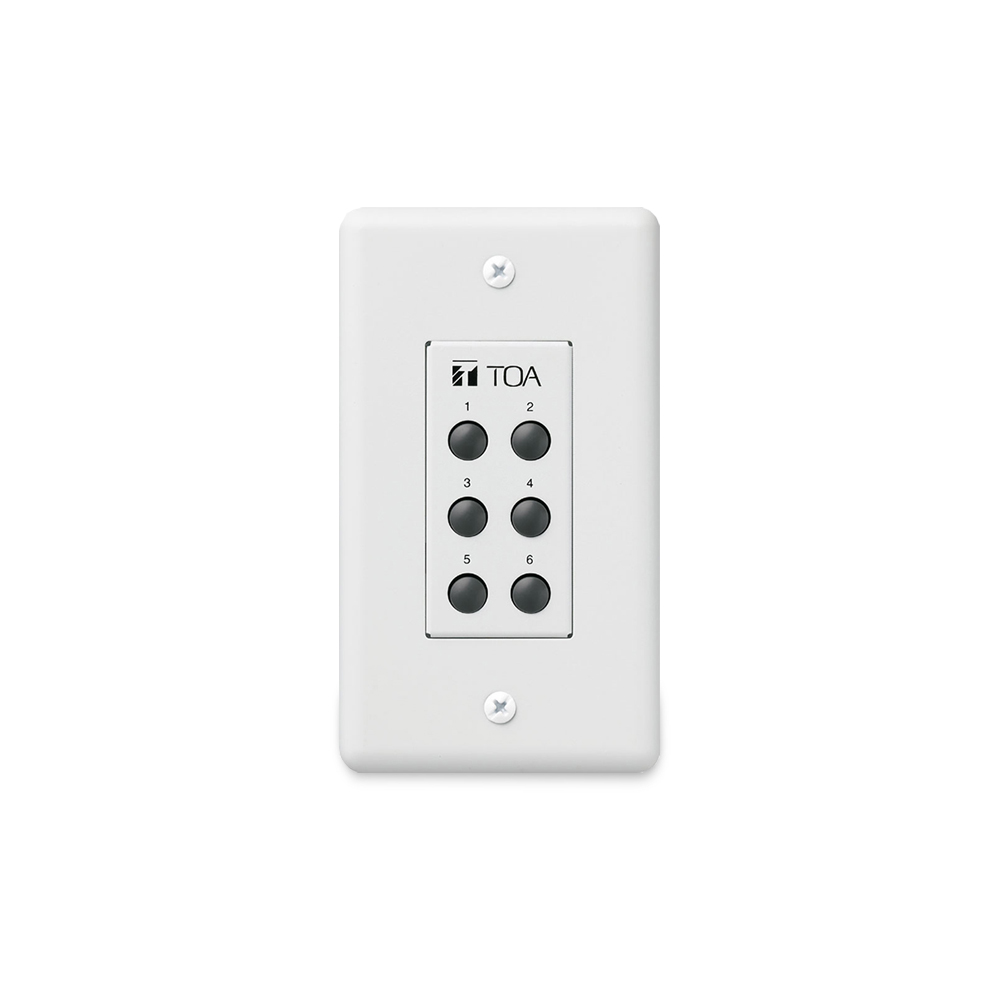

ZM-9001 Remote Panel

ZM-9001 Remote Panel

ZM-9001

The ZM-9001 is a remote control switch panel used with the 9000 series amplifiers. It provides an additional 6 control inputs of amplifier expansion, and can be mounted in an American standard 1-gang electrical box in the wall.

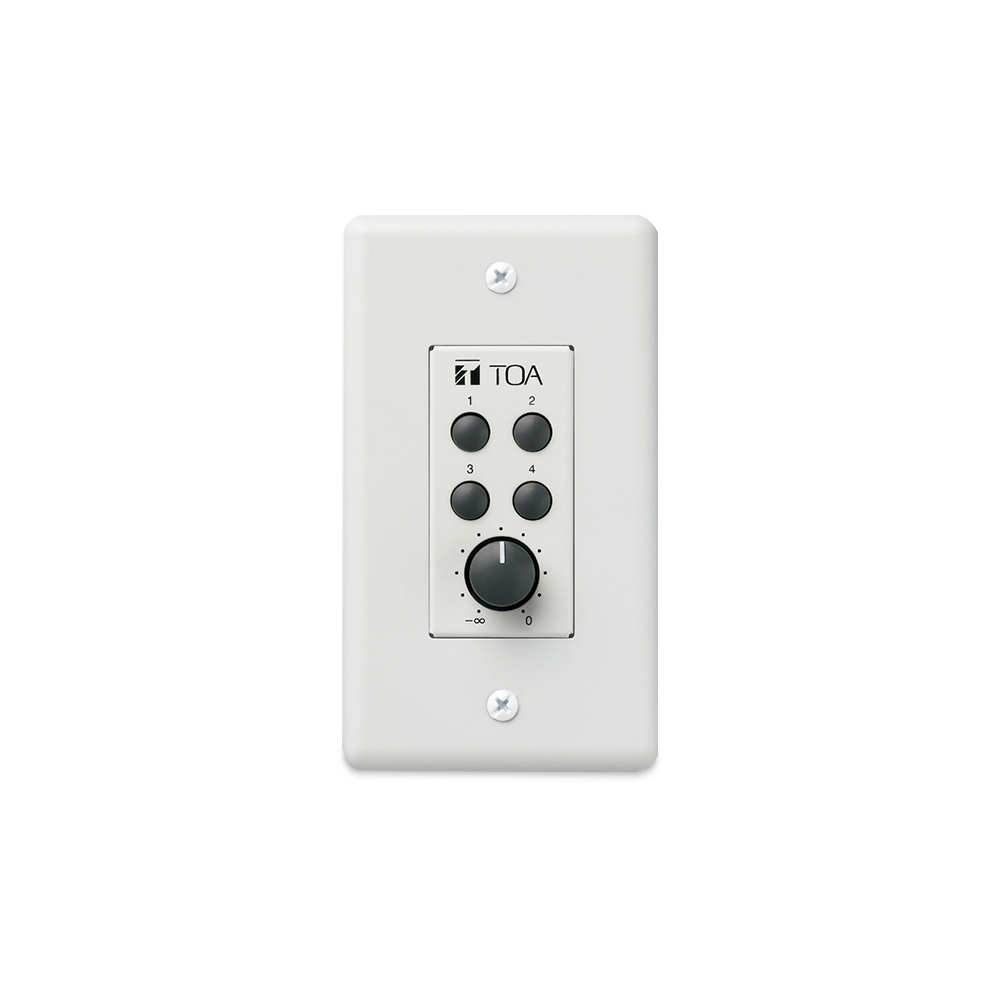

ZM-9002 Remote Panel

ZM-9002 Remote Panel

ZM-9002

The ZM-9002 is a remote control switch/volume panel used with the 9000 series amplifiers. It adds 4 amplifier control inputs and 1 remote volume control, and can be mounted in an American Standard 1-gang electrical box in the wall.
