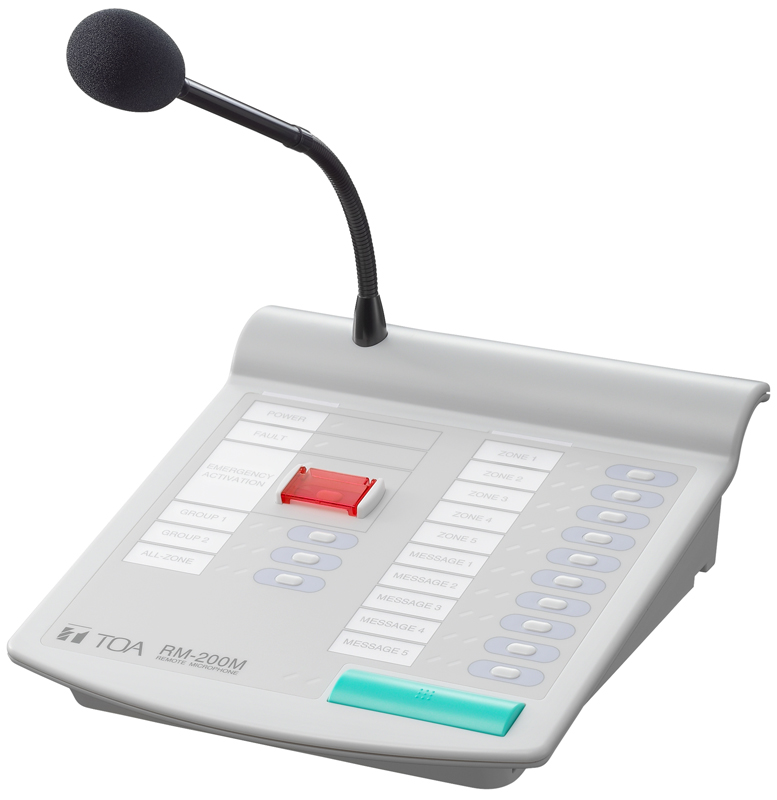

RM-200M Remote Microphone
RM-200M
The RM-200M Remote Microphone connects to the VM-3240VA, VM-3360VA, VM-2120 and VM-2240 for the purpose of making emergency(*3)/general broadcast announcements.
VM-2000 Series

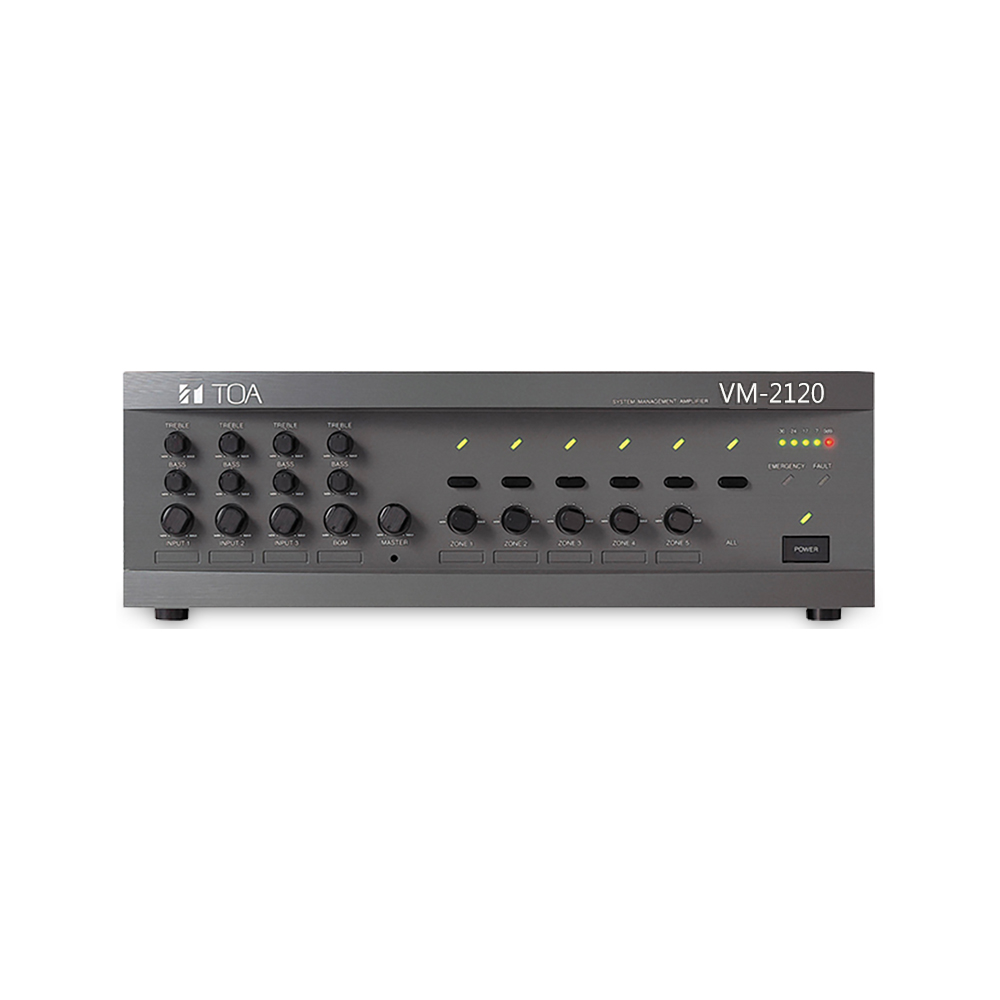

VM-2120 System Management Amplifier (ER Version)
VM-2120 ER
The VM-2120 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with 4 audio inputs including the background music input, and the speaker output section which has an internal attenuator and 5-zone selector. It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions(*1) in the emergency situation. Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, for 100 V/83 Ω application the unit features the surveillance function(*2) which automatically checks the system for failures. (*1) An optional EV-200M Voice Announcement Board is required. (*2) An optional SV-200MA Surveillance Board is required.
VM-2240 System Management Amplifier (ER Version)
VM-2240 ER
The VM-2240 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with 4 audio inputs including the background music input, and the speaker output section which has an internal attenuator and 5-zone selector. It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions(*1) in the emergency situation. Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, for 100 V/42 Ω application the unit features the surveillance function(*2) which automatically checks the system for failures. (*1) An optional EV-200M Voice Announcement Board is required. (*2) An optional SV-200MA Surveillance Board is required.

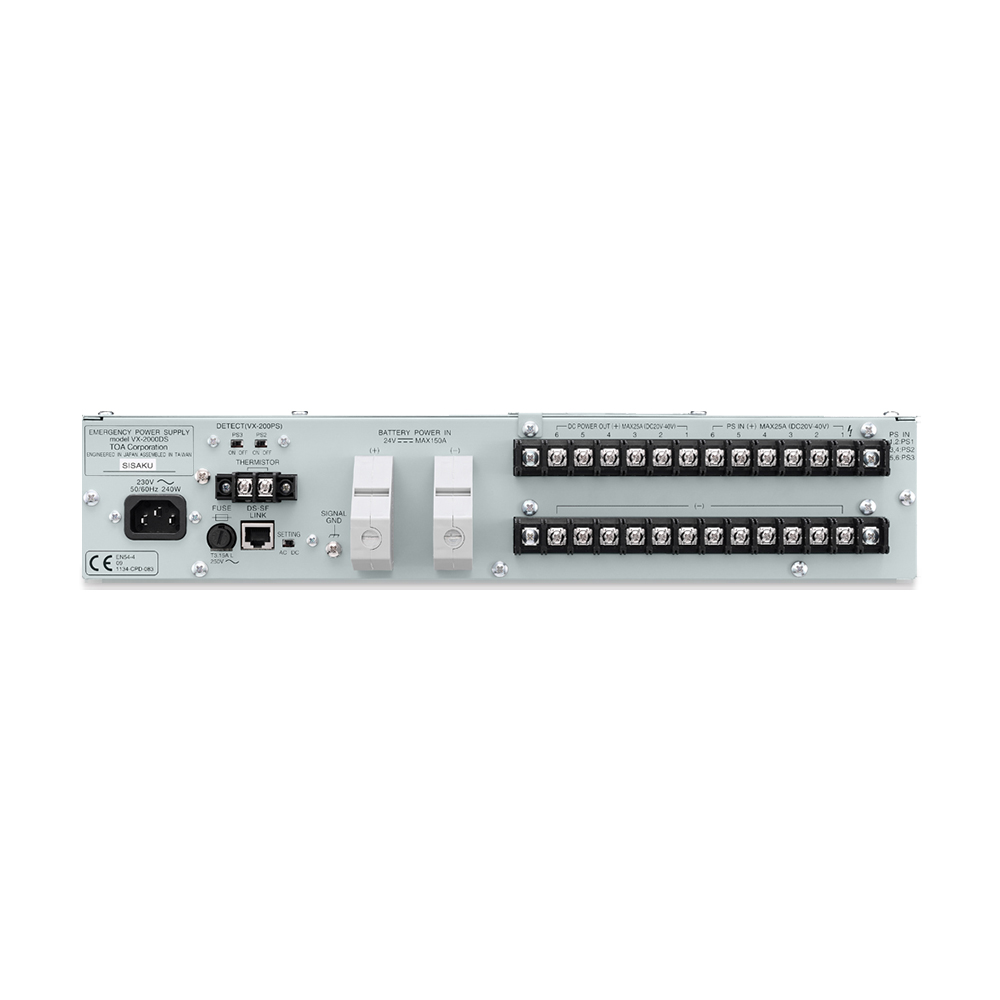

VX-2000DS Emergency Power Supply (301H Version)
VX-2000DS 301H
The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.
VX-2000DS Emergency Power Supply (ER/UK Version)
VX-2000DS ER/UK
The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

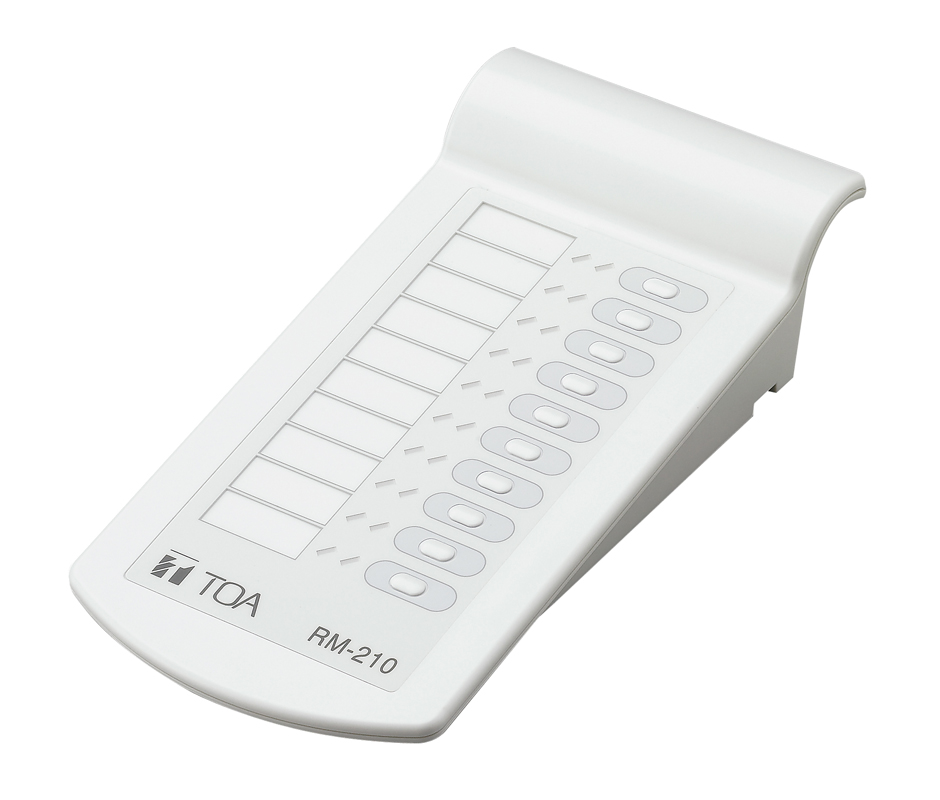

RM-210 Remote Microphone Extension
RM-210
The RM-210 is an extension unit for increasing the number of function keys of TOA's Remote Microphones.
WB-RM200 Wall Mount Bracket
WB-RM200
The WB-RM200 is to mount RM-200M, RM-200SA and RM-210 on the wall.

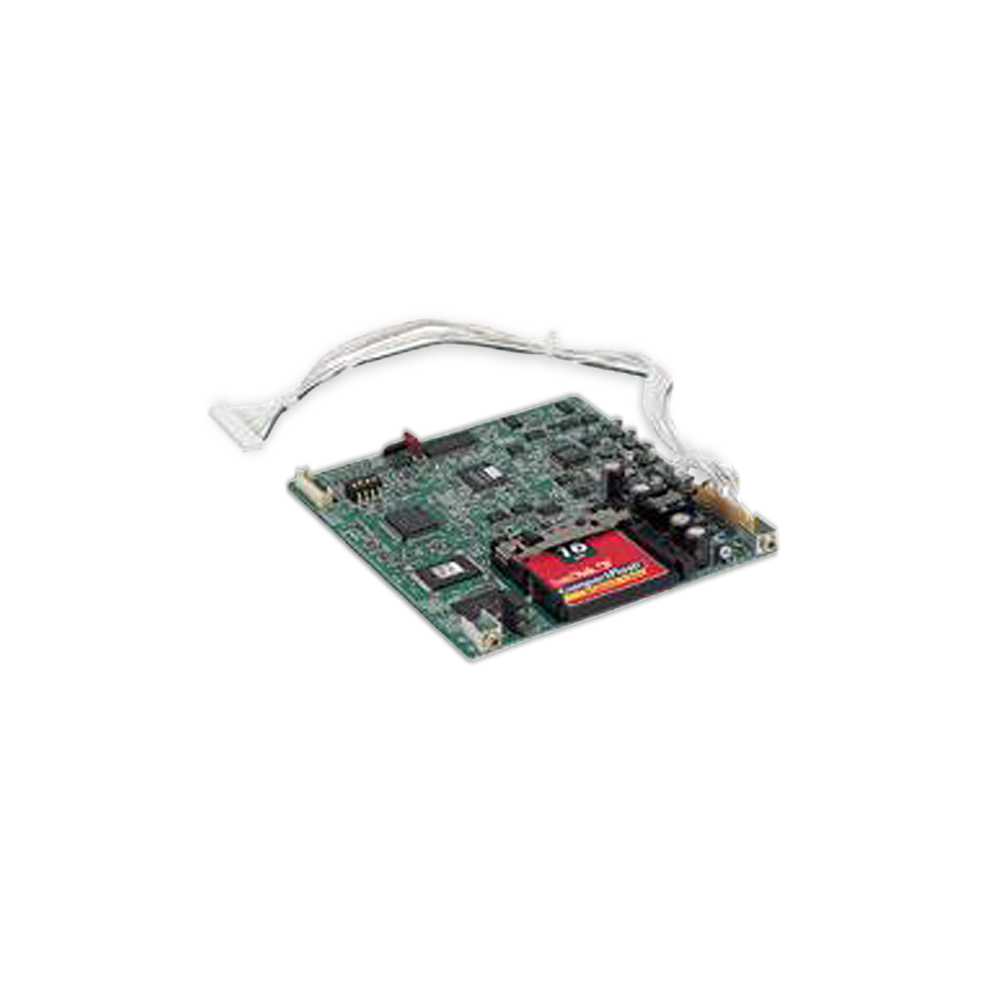

EV-200M Voice Announcement Board
EV-200M
The EV-200M is a playback-only Voice Announcing board to play back the messages recorded on The EV-350R. The EV-200M is designed to be built in the VM-2000 series amplifiers.

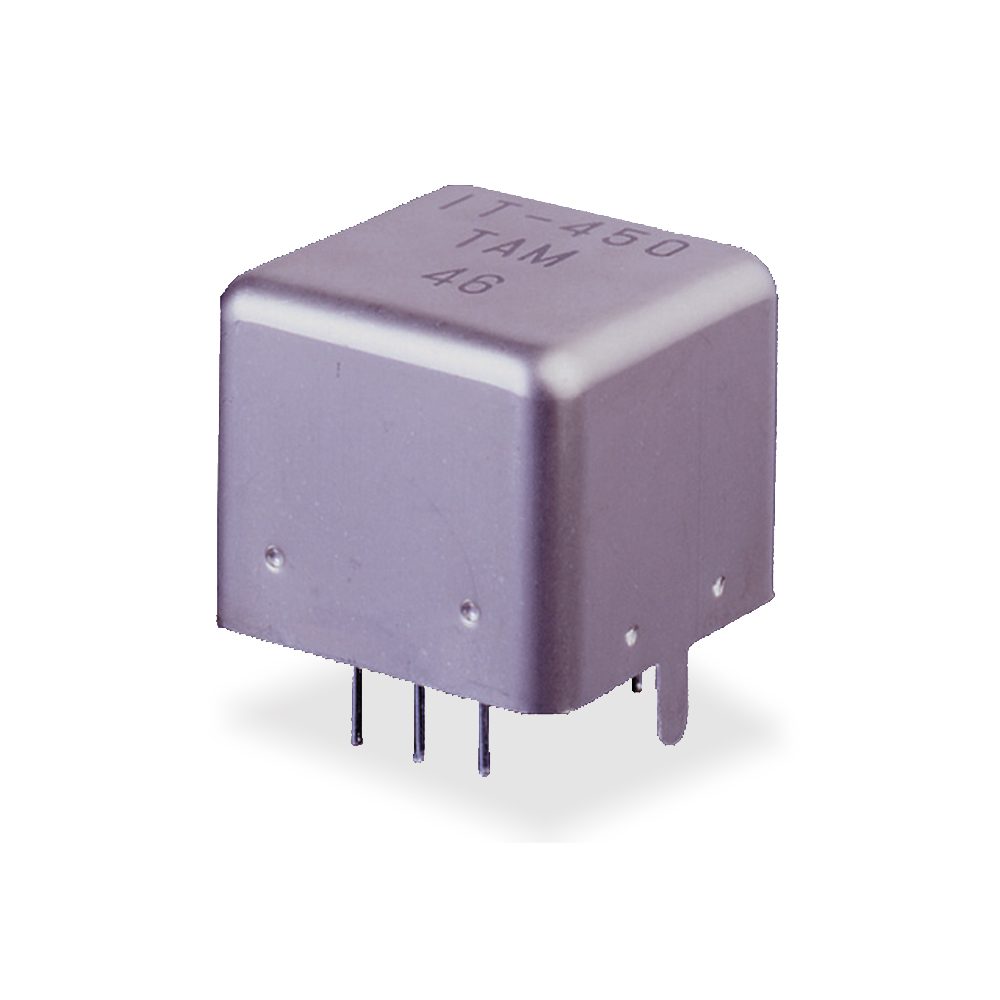

IT-450 Input Transformer
IT-450
Designed to be mounted on the circuit board, the unit converts an input/output of unbalanced type into that of balanced type.

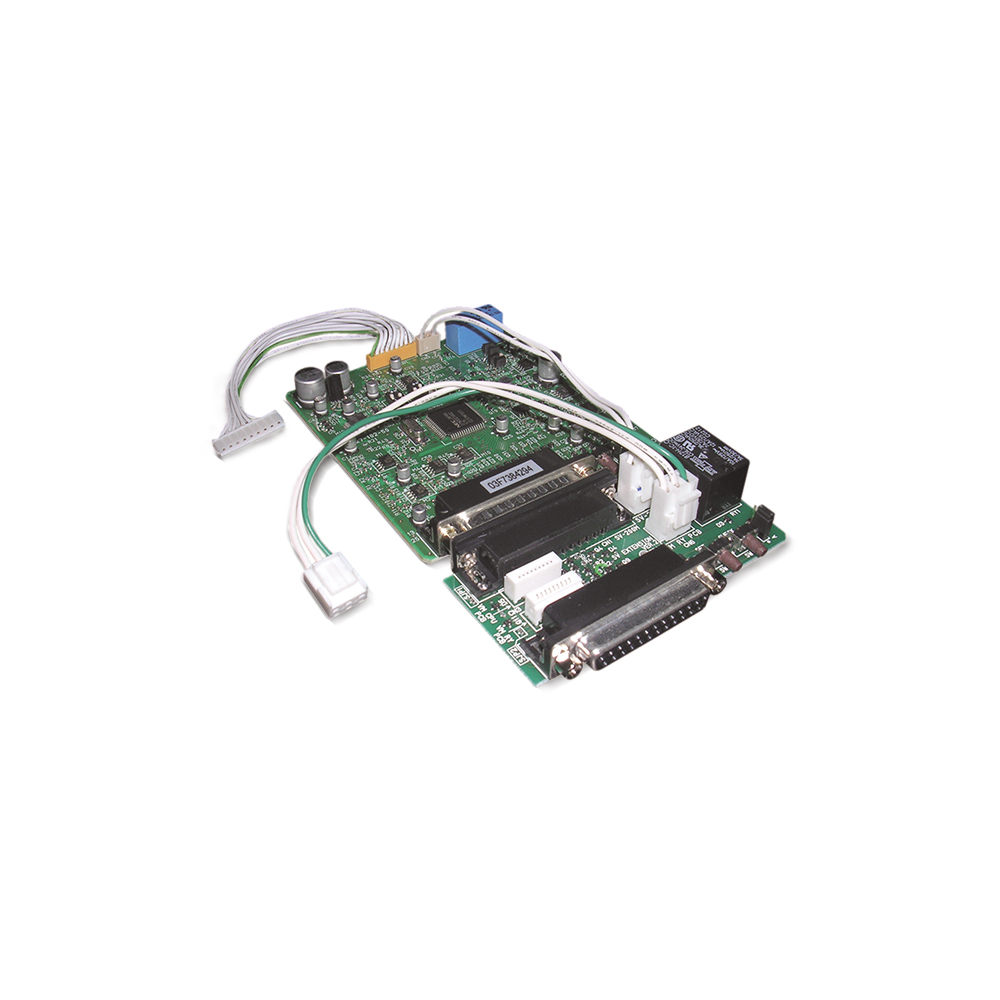

SV-200MA Surveillance Board
SV-200MA
Designed to be built in the VM-2120/-2240 amplifiers, the SV-200MA permits monitoring of individual speaker line or power amplifier failures for status indication.
