VX-3000 Series

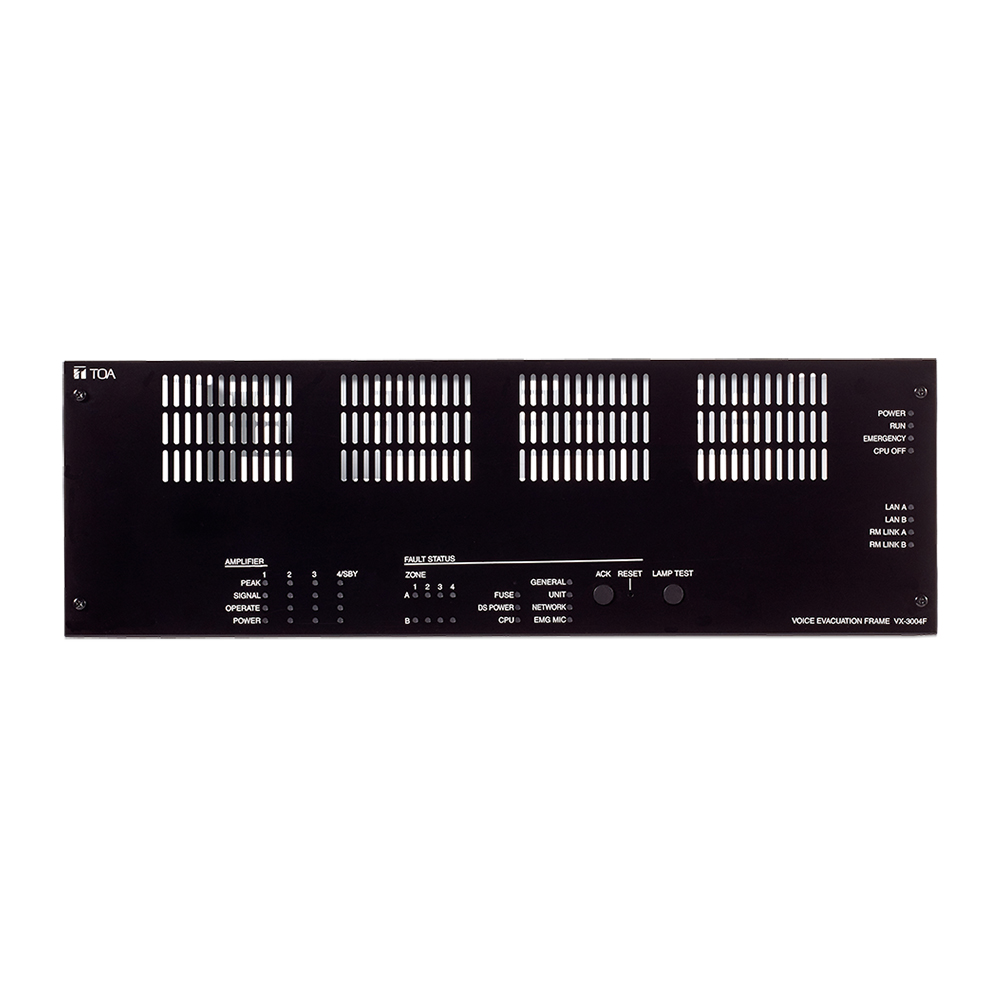

VX-3004F Voice Evacuation Frame 4AB

VX-3004F Voice Evacuation Frame 4AB

VX-3004F

The VX-3004F is a device designed to control the Voice evacuation announcements of TOA's VX-3000 Series rack-mount type voice evacuation system which is compliant with the European Standard EN54 for fire alarm systems. It has audio input terminals and can output the amplified audio signals to the speaker lines when the optional power amplifier modules are mounted.It is possible to make an Emergency Warning Broadcast assigned a higher priority than the Emergency broadcast. Two patterns of the Emergency broadcast can be activated simultaneously.Compatible with network, the system can be configured in distributed arrangement.Features include the following functions: Digital signal processing function that enables appropriate acoustic adjustment for individual input sound sources and output areas, Feedback suppressor function that automatically suppresses acoustic feedback when it occurs, VOX function that allows start/stop control of broadcast by way of an audio trigger, and ANC function that enables an ambient noise control. (The ANC function distinguishes between the unit's output sound and the ambient noise. The unit's output sound is not detected as noise.) Indicators that show such statuses as fault status and power amplifier signal status are provided.It has 4 speaker output channels, each of which is provided with A and B lines to enable duplication of the speaker lines. Up to 4 power amplifier modules can be mounted. The 4-channel amplifier can be used either for zone output or standby use. As the VX-3004F is equipped with Standby amplifier input/output terminal, the standby amplifier, when mounted, can be shared among VX-3000F units.

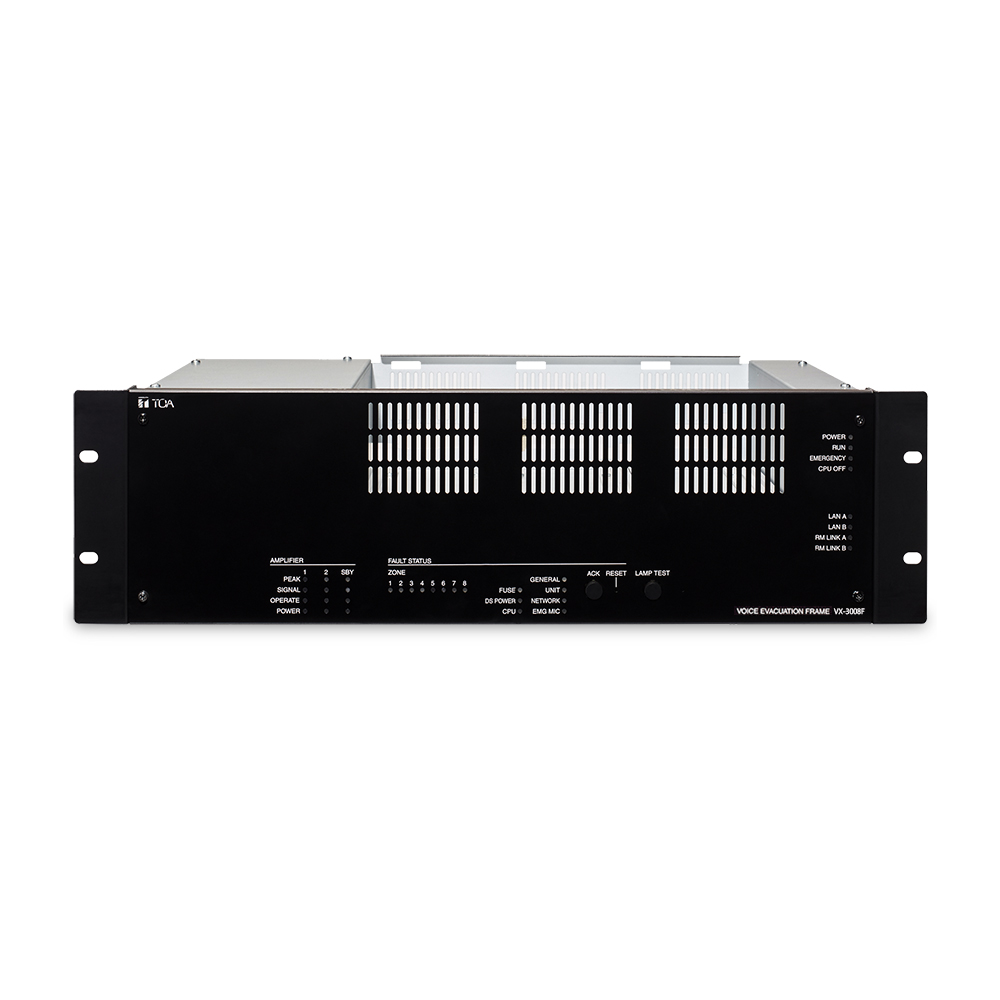

VX-3008F Voice Evacuation Frame 8SS

VX-3008F Voice Evacuation Frame 8SS

VX-3008F

The VX-3008F is a device designed to control the Voice evacuation announcements of TOA's VX-3000 Series rack-mount type voice evacuation system which is compliant with the European Standard EN54 for fire alarm systems. It has audio input terminals and can output the amplified audio signals to the speaker lines when the optional power amplifier modules are mounted.It is possible to make an Emergency Warning Broadcast assigned a higher priority than the Emergency broadcast. Two patterns of the Emergency broadcast can be activated simultaneously.Compatible with network, the system can be configured in distributed arrangement.Features include the following functions: Digital signal processing function that enables appropriate acoustic adjustment for individual input sound sources and output amplifiers, Feedback suppressor function that automatically suppresses acoustic feedback when it occurs, VOX function that allows start/stop control of broadcast by way of an audio trigger, and ANC function that enables an ambient noise control. (The ANC function distinguishes between the unit's output sound and the ambient noise. The unit's output sound is not detected as noise.) Indicators that show such statuses as fault status and power amplifier signal status are provided. It has 8 speaker output channels. A total of 3 power amplifier modules (2 for zone amplifier use and 1 for standby amplifier use) can be mounted. Equipped with a matrix output, the VX-3008F can be used as 2-bus speaker selector using 2 power amplifiers. Setting the matrix output destination makes 1-bus and 2-bus zones coexist. Zones can be expanded by connecting the unit having amplifier module(s) and the one having no amplifier module. As the VX-3008F is equipped with Standby amplifier input/output terminal, the standby amplifier, when mounted, can be shared among VX-3000F units.

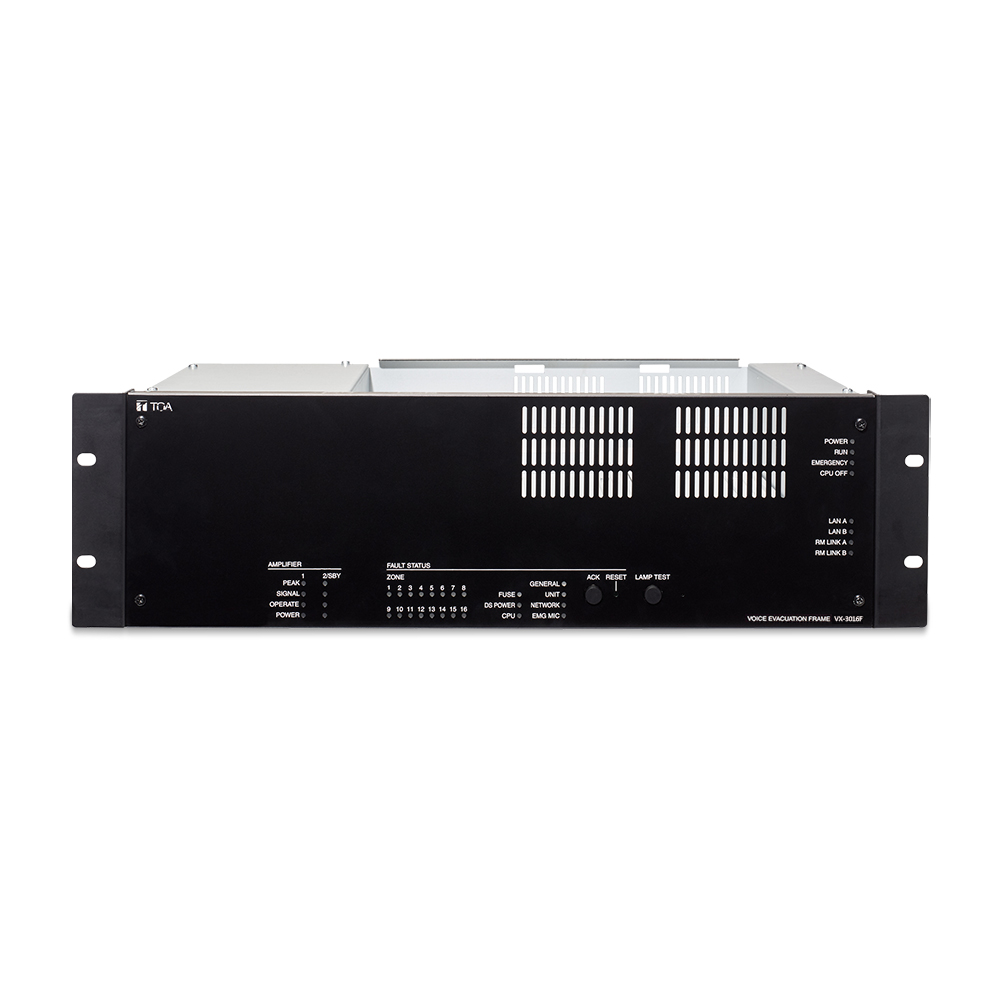

VX-3016F Voice Evacuation Frame 16SS

VX-3016F Voice Evacuation Frame 16SS

VX-3016F

The VX-3016F is a device designed to control the Voice evacuation announcements of TOA's VX-3000 Series rack-mount type voice evacuation system which is compliant with the European Standard EN54 for fire alarm systems. It has audio input terminals and can output the amplified audio signals to the speaker lines when the optional power amplifier modules are mounted.It is possible to make an Emergency Warning Broadcast assigned a higher priority than the Emergency broadcast. Two patterns of the Emergency broadcast can be activated simultaneously.Compatible with network, the system can be configured in distributed arrangement.Features include the following functions: Digital signal processing function that enables appropriate acoustic adjustment adjustment for individual input sound sources and output amplifiers, Feedback suppressor function that automatically suppresses acoustic feedback when it occurs, VOX function that allows start/stop control of broadcast by way of an audio trigger, and ANC function that enables an ambient noise control. (The ANC function distinguishes between the unit's output sound and the ambient noise. The unit's output sound is not detected as noise.) Indicators that show such statuses as fault status and power amplifier signal status are provided.It has 16 speaker output channels. The number of mountable amplifier modules is up to 2 when used as zone amplifiers or a total of 2 when one is used as standby amplifier and the other as zone amplifier. When one module for zone amplifier use is mounted, the VX-3016F can be used as 1-bus/16-zone output speaker selector. When 2 modules for zone amplifier use are mounted, it can be used as 2-channel 1-bus/8-zone output speaker selector. Zones can be expanded by connecting the unit having amplifier module(s) and the one having no amplifier module. As the VX-3016F is equipped with Standby amplifier input/output terminal, the standby amplifier, when mounted, can be shared among VX-3000F units.

VX-030DA Digital Power Amplifier Module 300W

VX-030DA Digital Power Amplifier Module 300W

VX-030DA

The VX-030DA is an Digital power amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-030DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F and power supply units VX-3000DS, VX-3150DS.

VX-015DA Digital Power Amplifier Module 150W

VX-015DA Digital Power Amplifier Module 150W

VX-015DA

The VX-015DA is an Digital power amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems.It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-015DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F and power supply units VX-3000DS, VX-3150DS.

VX-3000CT Control Panel

VX-3000CT Control Panel

VX-3000CT

The VX-3000CT is an operation panel designed for exclusive use with the VX-3000 series evacuation system. Operation such as the activation of general broadcast and the input/output volume control can be performed by connecting the VX-3000CT to the VX-3000 Frame via network. It is equipped with 9 function keys and 8 volume controls. Up to 2 units can be connected to a single VX-3000 Frame, and a maximum of 80 units can be configured per system. It can be mounted in a EIA equipment rack (1U size).

VX-3000PM Preamp Matrix Panel

VX-3000PM Preamp Matrix Panel

VX-3000PM

The VX-3000PM is a preamplifier matrix panel designed for exclusive use with the VX-3000 series evacuation system. The number of audio inputs, control inputs and control outputs can be increased by connecting the VX-3000PM to the VX-3000 Frame via network. It is equipped with 8 audio inputs and their corresponding volume controls, 20 control inputs and 10 control outputs. A single VX-3000PM unit can be connected to a single VX-3000 Frame, and a maximum of 40 units can be configured per system.
Unicast audio transmission can be made among the VX-3000PM units. enabling broadcasting activation and microphone announcement at multiple places. It can be mounted in an EIA equipment rack (1U size).

VX-300LO Line Output Module

VX-300LO Line Output Module

VX-300LO

The VX-300LO is an audio output module designed for exclusive use with the VX-3000 series evacuation system. Built in the VX-3000 Frame, it outputs audio signals from the VX-3000 Frame to an external device. The front-mounted volume control permits a fine adjustment of the output level depending on the input sensitivity of the connected device.

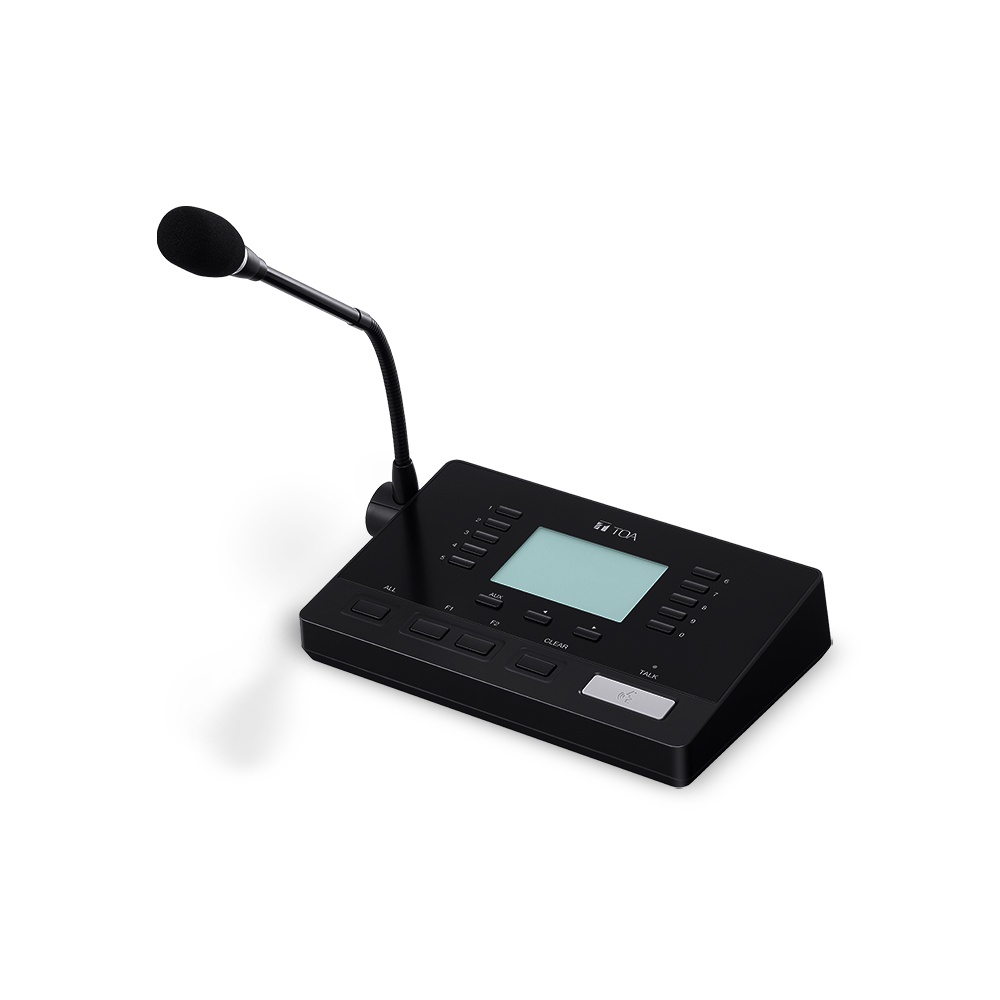

RM-500 Remote Microphone

RM-500 Remote Microphone

RM-500

The RM-500 is a desktop type remote microphone for general broadcasts. Equipped with an LCD screen, it can display up to 80 function names registered in advance, allowing these functions to be executed with the key operation.

The AUX key allows only the external audio signals to be controlled regardless of weather the microphone broadcasts are present or not. The speech intelligibility function makes it easier to hear the microphone announcements even in noisy environments, and also allows the microphone to pick up the audio signals at an appropriate level even if speaking too close to or too far from it.

The RM-500 can be mounted on the wall by using an optional wall mounting bracket.

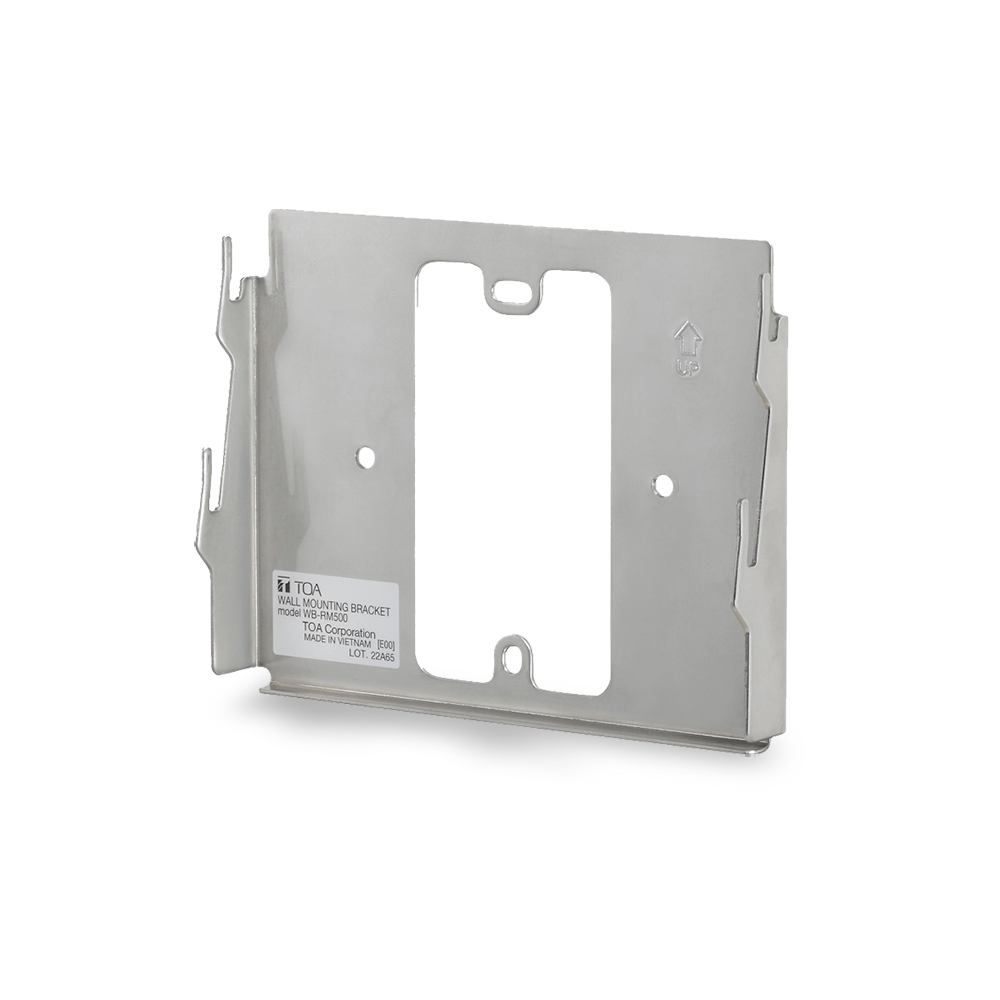

WB-RM500 Wall Mount Bracket

WB-RM500 Wall Mount Bracket

WB-RM500

The WB-RM500 is to mount Remote Microphone RM-500 on the wall

VX-050DA Digital Power Amplifier Module 500W

VX-050DA Digital Power Amplifier Module 500W

VX-050DA

The VX-050DA is an Digital power amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-050DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F and power supply units VX-3000DS, VX-3150DS.

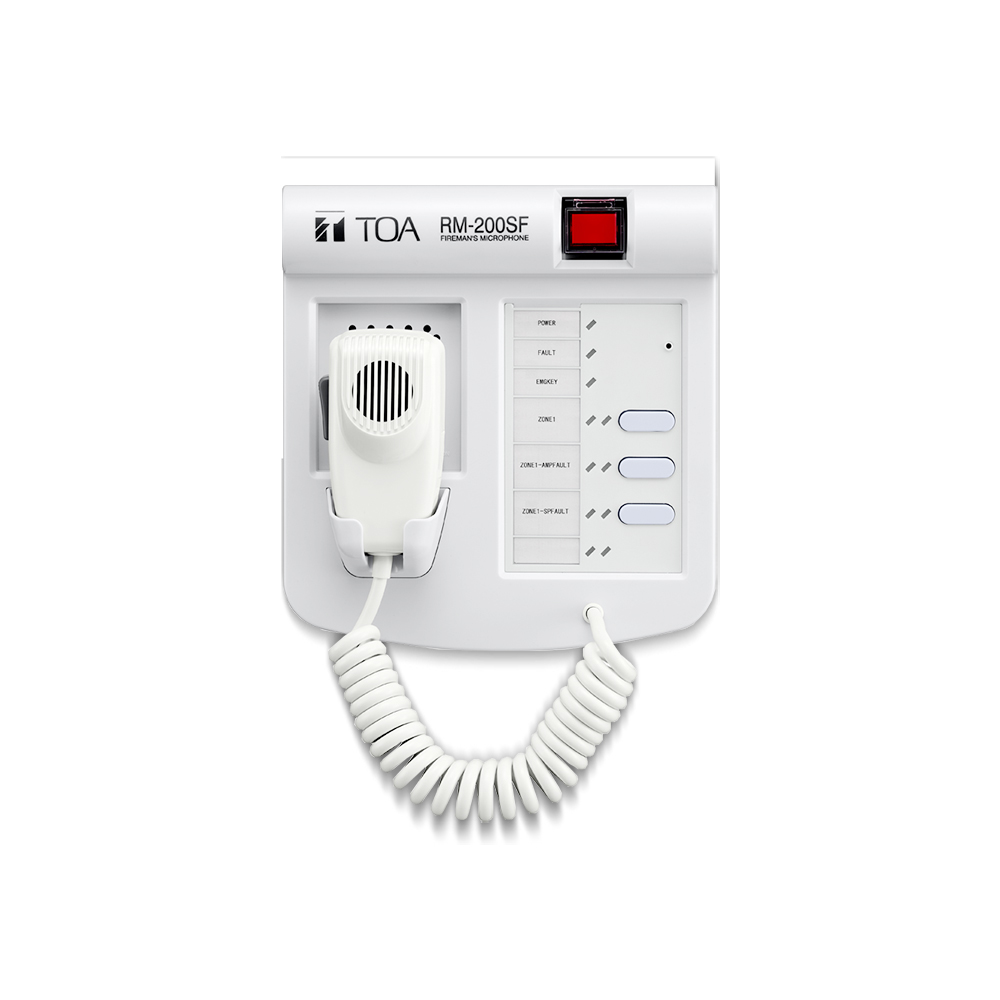

RM-200SF Fireman's Microphone

RM-200SF Fireman's Microphone

RM-200SF

The RM-200SF is a Fireman's Microphone of the matrix system. It is equipped with an Emergency key, permitting it to be used as a remote microphone for emergency broadcast. Zone selection and microphone announcement can be made at the time of emergency broadcast. It offers a surveillance function to detect failures including microphone element failure. The RM-200SF has three function keys that can be set as individual or group selection keys, and each key is linked with the corresponding two indicators. Connecting the optional RM-210, RM-320F Extension units to the RM-200SF expands the number of function keys and indicators in blocks of ten.

RM-320F Fireman's Microphone Extension

RM-320F Fireman's Microphone Extension

RM-320F

The RM-320F is an extension unit for increasing the number of function keys of TOA's Remote Microphones.

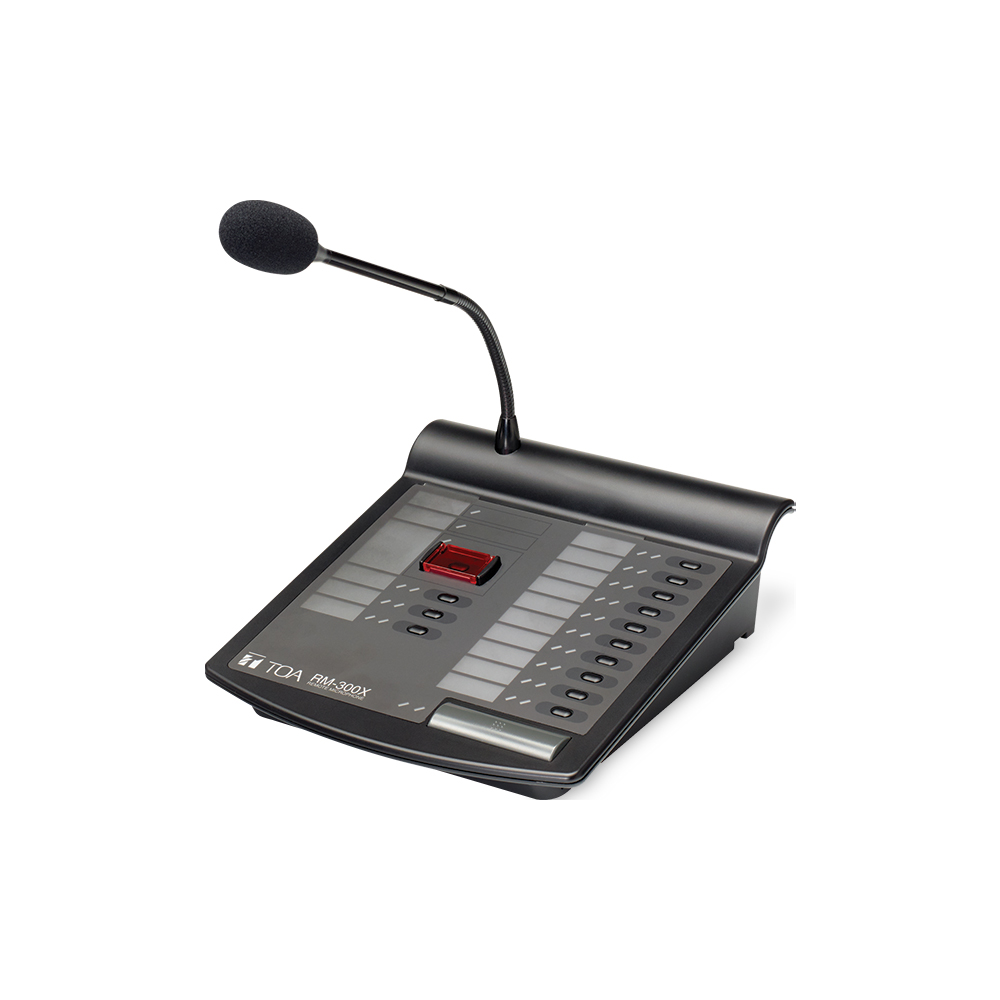

RM-300X Remote Microphone

RM-300X Remote Microphone

RM-300X

The RM-300X is a remote microphone designed for the Integrated Voice Evacuation System. It is equipped with 13 function switches that can be used to select individual zones or zone groups a covered switch and corresponding indicators. The optional RM-210F Remote microphone extension permits switches and indications to be expanded in 10-piece units.

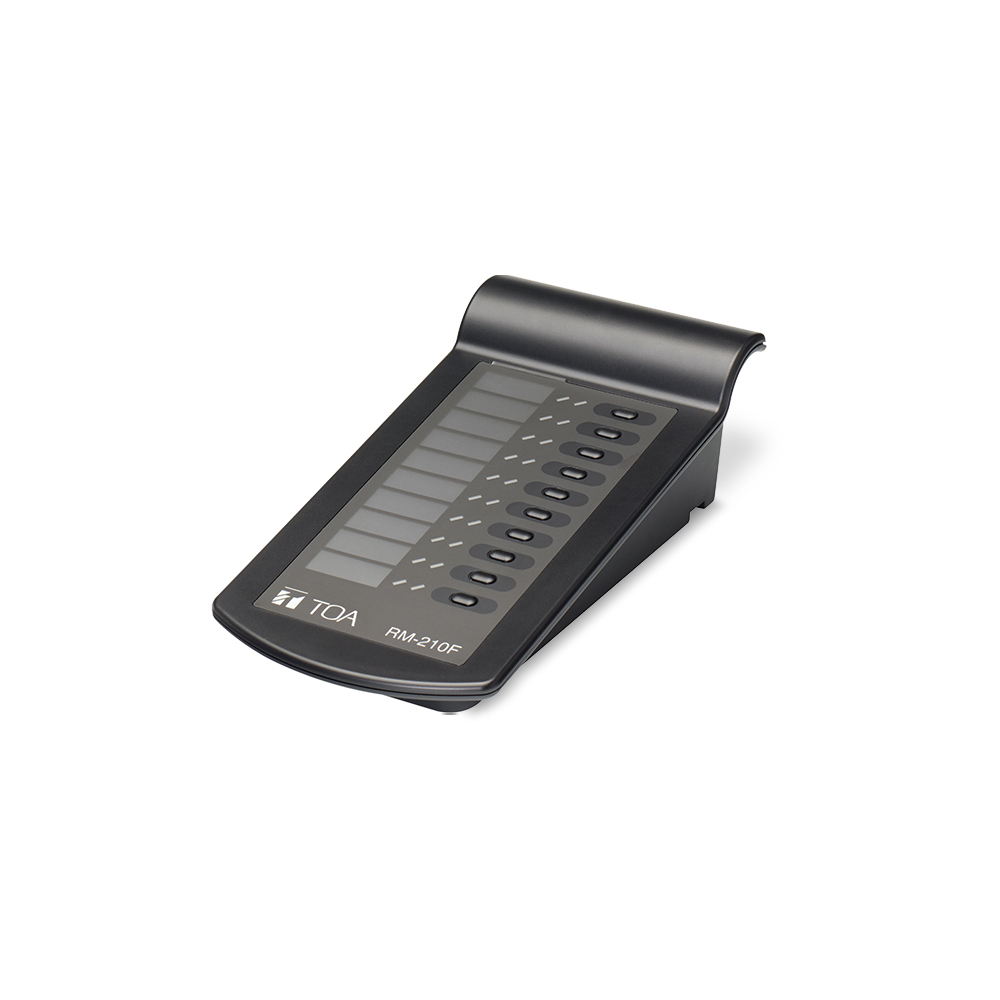

RM-210F Remote Microphone Extension

RM-210F Remote Microphone Extension

RM-210F

The RM-210F is an expansion unit dedicated for the RM-300X Desk top remote microphone. The number of zone selection keys and indicators of the RM-300X can be increased in 10 units per RM-210F.

WB-RM200 Wall Mount Bracket

WB-RM200 Wall Mount Bracket

WB-RM200

The WB-RM200 is to mount RM-200M, RM-200SA and RM-210 on the wall.

VX-3000DS Power Supply Manager

VX-3000DS Power Supply Manager

VX-3000DS CE

The VX-3000DS is an Emergency Power Supply Manager used for the VX-3000, SX-2000, VX-2000 and VM-3000 systems. It is a 3U rack-mount unit equipped with a battery charger and dual switching power supplies, which contribute to rack space, energy-saving and lightweight design. The VX-3000DS features easy maintenance as function setting switch and shutdown switch inside the front panel, and fuse replacement can be performed on the unit's rear side.

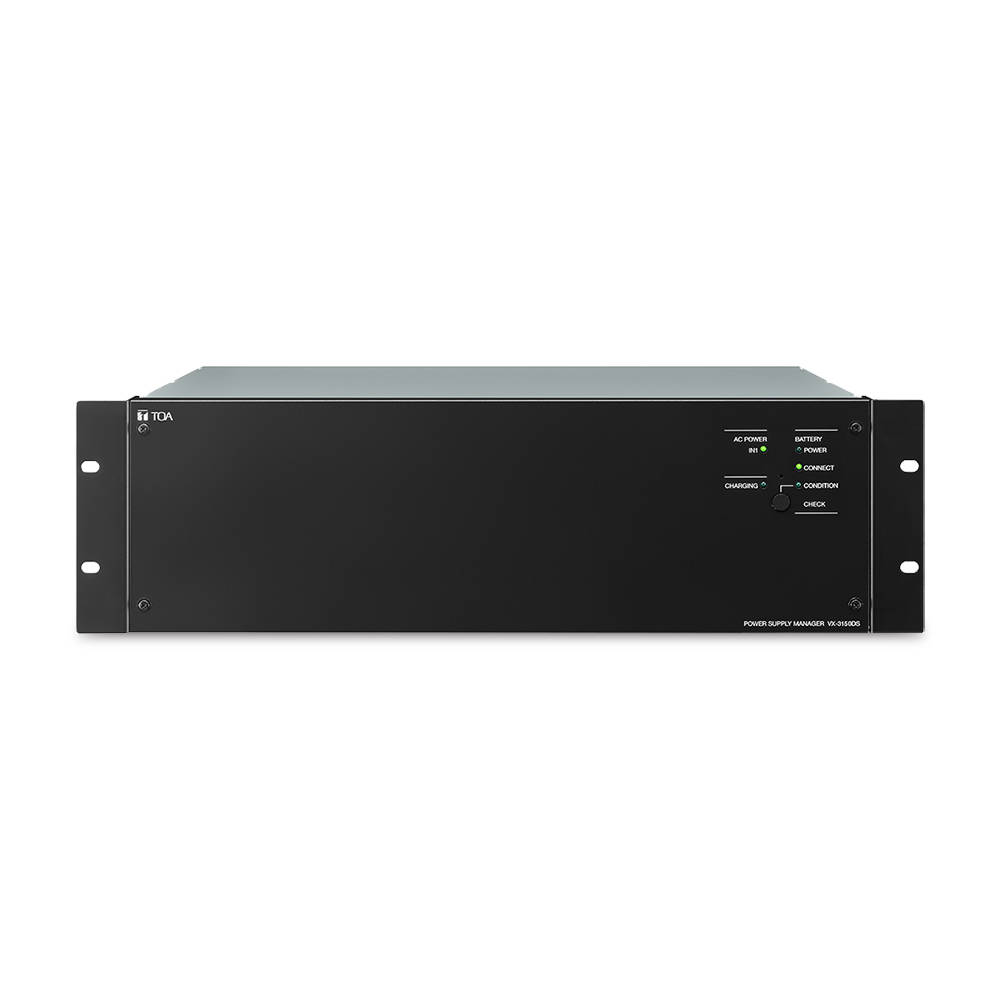

VX-3150DS Power Supply Manager

VX-3150DS Power Supply Manager

VX-3150DS

The VX-3150DS is an Emergency Power Supply Manager used for the VX-3000, SX-2000, VX-2000 and VM-3000 systems. It is a 3U rack-mount unit equipped with a battery charger and a switching power supply, which contribute to rack space, energy-saving and lightweight design. The VX-3150DS features easy maintenance as function setting switch and shutdown switch inside the front panel, and fuse replacement can be performed on the unit's rear side.

VX-3308WM Wall Mount Voice Evac System

VX-3308WM Wall Mount Voice Evac System

VX-3308WM

The VX-3308WM is a combined PA and VA system based on the VX-3000 system and is certified according to the European Standard EN54-16. It is designed to be wall-mounted requiring little space and can be operated as a stand-alone unit as well as being combined with all VX-3000 units. Due to the scalable and integrated architecture of the VX-3000 system, the VX-3308WM is an ideal solution for distributed locations, for example, to cover the many floors of a high-rise building.

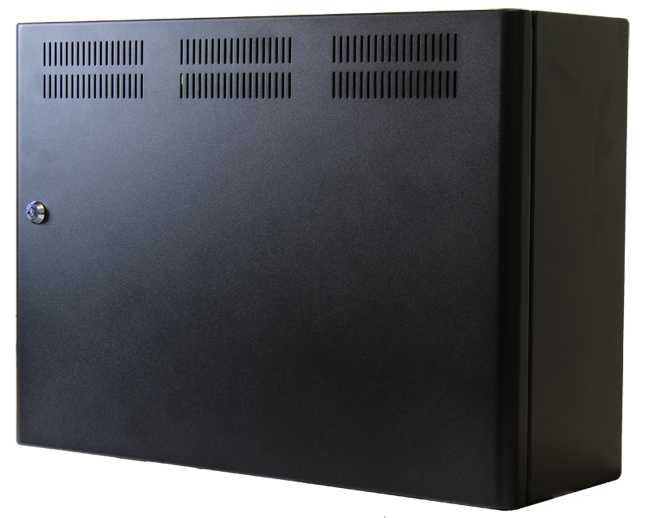

VX-3065BB Battery Box

VX-3065BB Battery Box

VX-3065BB

Battery box for VX-3308WM
