Z-FV200 Series

Z-FV200EV-AS Emergency Message Panel

Z-FV200EV-AS Emergency Message Panel

Z-FV200EV-AS *AS Model*

The Z-FV200EV-AS Emergency Message Panel is the emergency broadcast operating section of the Z-FV200 Series Emergency Public Address System. It need not be installed when the system is used solely for general broadcasting purpose. It has facilities to manually start and reset emergency broadcasts. Emergency announcements are recorded in Indonesian (default settings), which can be changed by USB data transfer operations from rear panel.

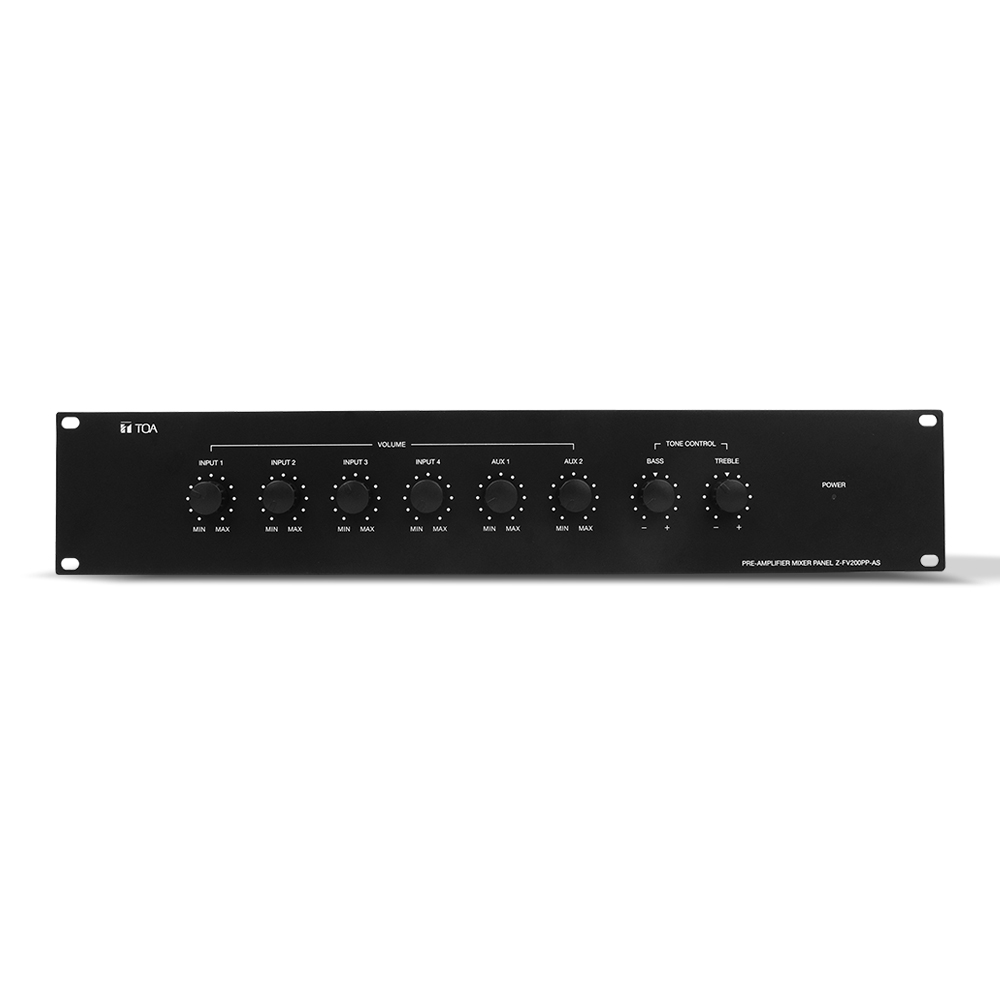

Z-FV200PP-AS Pre-Amplifier Mixer Panel

Z-FV200PP-AS Pre-Amplifier Mixer Panel

Z-FV200PP-AS *AS Model*

The Z-FV200PP-AS Pre-Amplifier Mixer Panel is the basic operation section of the Z-FV200 Series Emergency Public Address System

Z-FV224PA-AS Power Amplifier

Z-FV224PA-AS Power Amplifier

Z-FV224PA-AS *AS Model*

The Z-FV224PA-AS features 240W rated output with high capacity for audio requirement

Z-FV248PA-AS Power Amplifier

Z-FV248PA-AS Power Amplifier

Z-FV248PA-AS *AS Model*

The Z-FV248PA-AS features 480W rated output with high capacity for audio requirements.

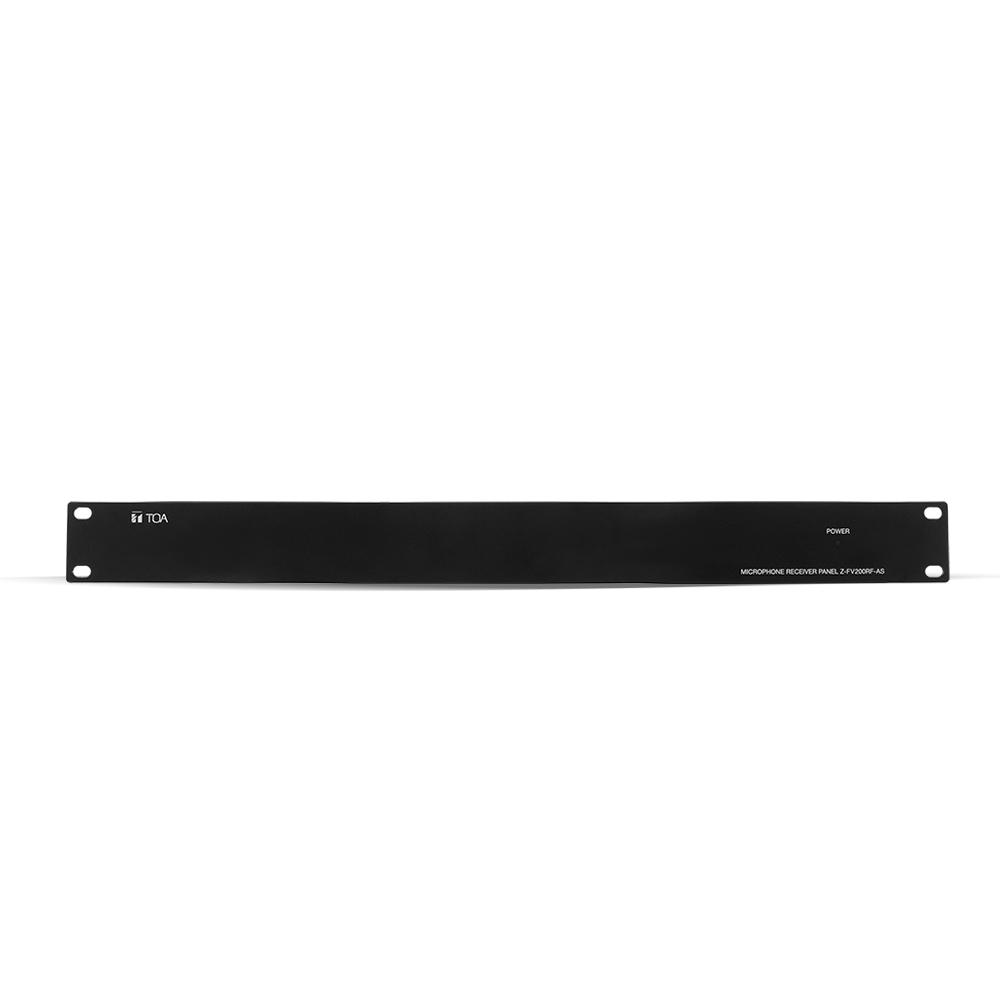

Z-FV200RF-AS Remote Microphone Receiver Panel

Z-FV200RF-AS Remote Microphone Receiver Panel

Z-FV200RF-AS *AS Model*

The Z-FV200RF-AS Microphone Receiver Panel is used to connect the RM-200M Remote Microphone to the Z-FV200 Series Emergency Public Address System. Up to 4 RM-200M can be connected.

Z-FV200CA-AS Amplifier Changeover Panel

Z-FV200CA-AS Amplifier Changeover Panel

Z-FV200CA-AS *AS Model*

The Z-FV200CA-AS Amplifier Changeover Panel is used to automatically changeover Z-FV200 Series fault duty amplifier to working standby amplifier. 1 unit of Z-FV200CA-AS can handle up to 6 nos. of Z-FV200 Series amplifiers.

Z-FV200PS-AS Power Supply Panel

Z-FV200PS-AS Power Supply Panel

Z-FV200PS-AS *AS Model*

The Z-FV200PS-AS Switching DC Power Supply Panel supplies 24V DC power to each component of Z-FV200 Series Voice Evacuation System. In additional, the DC power supply shall connect to an emergency power supply for uninterrupted DC power during AC power failure.

RM-200M Remote Microphone

RM-200M Remote Microphone

RM-200M

The RM-200M Remote Microphone connects to the VM-3240VA, VM-3360VA, VM-2120 and VM-2240 for the purpose of making emergency(*3)/general broadcast announcements.

RM-210 Remote Microphone Extension

RM-210 Remote Microphone Extension

RM-210

The RM-210 is an extension unit for increasing the number of function keys of TOA's Remote Microphones.

WB-RM200 Wall Mount Bracket

WB-RM200 Wall Mount Bracket

WB-RM200

The WB-RM200 is to mount RM-200M, RM-200SA and RM-210 on the wall.

VX-2000DS Emergency Power Supply (301H Version)

VX-2000DS Emergency Power Supply (301H Version)

VX-2000DS 301H

The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

VX-2000DS Emergency Power Supply (ER/UK Version)

VX-2000DS Emergency Power Supply (ER/UK Version)

VX-2000DS ER/UK

The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

YA-1000A Fault Detection Circuit Module

YA-1000A Fault Detection Circuit Module

YA-1000A

The YA-1000A is installed in a power amplifier to detect the power amplifier's failure. Avoid using the YA-1000A during the power amplifier's parallel operation because it cannot detect a failure correctly.
