IP-A1SC15

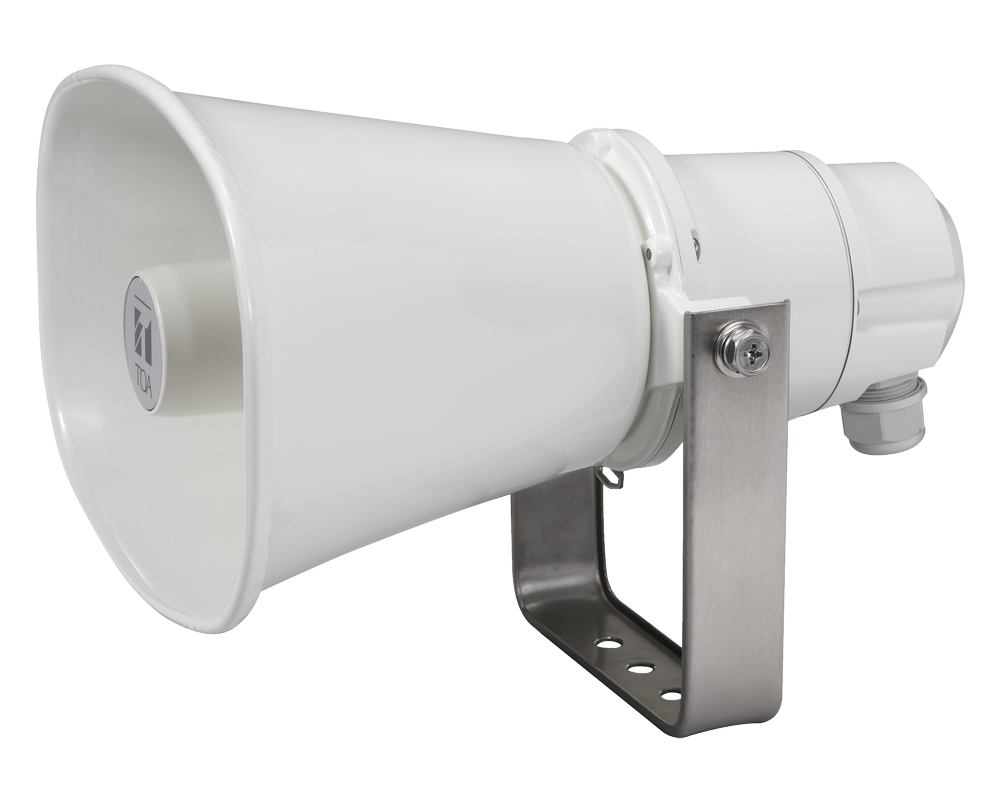

The IP-A1SC15 is an IP paging horn speaker to deliver clear announcements via network with 124dB output capability powered by PoE+ power source. Its rugged enclosure is IP66 rated for outdoor environment. The IP-A1SC15 supports common network protocols for easy integrations with Video Management Systems and other SIP-compatible VoIP systems and devices. Group paging function is available with 10 Multicast ports for zone paging requirements. Internal sound source file storage allows storing pre-recorded messages of tones which can be played back by 2 control inputs or Remote API (HTTP).

IP certification

Power Source PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3)
Power Consumption 22 W (at PoE+ powered, rated output)
13 W (at PoE powered, rated output)
5 W (IEC62368-1)
Amplifier Rated Output 15 W (at PoE+ powered), 8 W (at PoE powered)
Sensitivity 112 dB (1 W, 1 m) (500 Hz - 2.5 kHz, peak level)
Max. Sound Pressure Level 124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz - 2.5 kHz, peak level)
121 dB (at PoE powered, 8 W, 1 m) (500 Hz - 2.5 kHz, peak level)
Frequency Response 280 Hz - 12.5 kHz
Audio Codec PCMU (G.711u), PCMA (G.711a), G.722
Broadcasting Mode SIP Broadcasting Mode: PCMU/PCMA/G.722
Multicast Broadcasting Mode: PCMC/PCMA/G.722, Max. 10 ports
VMS Broadcasting Mode: Audio Backchannel, PCMU
Internal Message Broadcasting Mode
Note: Each broadcast model can be assigned an order of priority using the Priority Setting function.
Internal Messages Max. 20 messages (Max. recording capacity: 80 MB)
Supported file formats
WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/44.1/48 kHz sampling frequency, 64-320 kbps, CBR/VBR, monaural/stereo
Repeat count: 1-10 times, Interval time: 0-30 sec
Trigger: Contol Input or Remote API (HTTP)
Network I/F 100BASE-TX, MDI/MDI-X, RJ-45
Network Protocol TCP/IP, UDP, HTTP, RTP, ARP, ICMP, RTSP, SIP (RFC3261)
Control Input 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (3 pins)
Control Output 1 channel, open collector output, withstand voltage 30 V DC, control current: 10 mA or less, removed terminal block (3 pins)
Indicator LAN LINK / ACT (green), STATUS (orange)
Dust/Water Protection IP66
Operating Temperature -30 °C to +55 °C
Operating Humidity 90 %RH or less (no condensation)
Finish Horn flare and body: Aluminum, off-white (RAL 9010 equivalent), paint
Reflector horn: ABS resin, off-white (RAL 9010 equivalent)
Rear Cover: PC resin, off-white (RAL 9010 equivalent), paint
Bracket, Screws and bolts: Stainless Steel
Dimensions 222 (W) x 211 (H) x 276 (D) mm
Weight 1.4 kg
Accessory Rear Cover x 1, Removable terminal plug (3 pins) x 2
Option Speaker mount bracket: SP-131, SP-201, SP-301
Pole Band: YS-60B

Note: Take special care to avoid mounting this speaker directly to structures (such as ski lift towers) that generate large amount of vibration. Also, do not use this speaker in environment where is may be exposed to oil or other chemicals, as mounting parts could rapidly deteriorate, possibly resulting in personal injury or other accidents due to the speaker falling.

Computer Requirements
OS Windows 10 Pro (64-bit edition)
Windows 10 Home (64-bit edition)
Required Web Browser Google Chrome
Microsoft Edge

# Windows and Microsoft Edge are the registered trademarks of Microsoft Corporation in the United States and other countries.
# Google Chrome is the trademark of Google LLC in United States and other countries.
# Other company names and products are also trademarks of individual companies.
