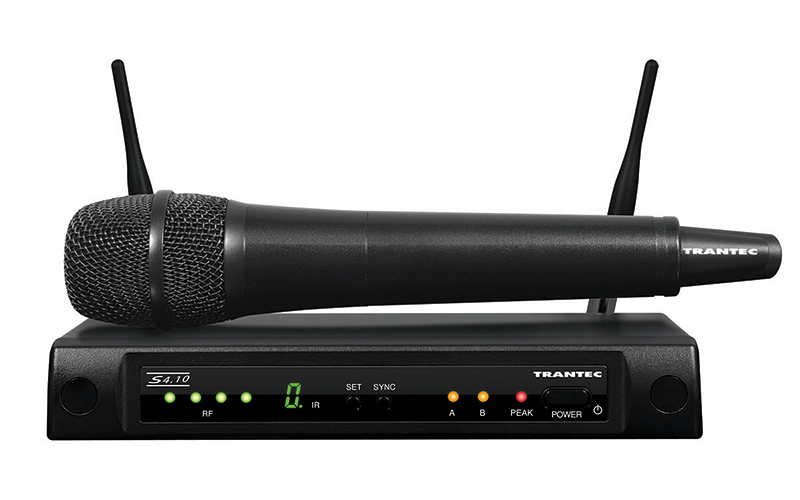

S4.10-HD UHF Wireless Set

S4.10-HD UHF Wireless Set

S4.10-HD UHF Wireless Set

S4.10-HD *AS Model*

The Trantec S4.10 Series is designed to make multi channel wireless as simple as possible. The system is encased in a sturdy yet compact metal frame. It can be used with a wide range of microphones, or musical instruments making it the perfect solution for amateur and semi professional musicians and theatre performers.

(*1) 0 dB = 1 V
Product Composition Handheld wireless microphone x 1
Receiver x 1
Frequency Range 506 - 937.5 MHz (*1), UHF
Channel Selectable Up to 16 channels (depending on region)
Tunable Frequencies 25 kHz Steps
Pilot Tone 32.768 kHz
Total Harmonic Distortion <1% @ 1kHz
Function IR sync, Channel scan, Battery Life indicator
Accessory AC adapter (*2) x 1
Microphone holder W5/16" x 1

Wireless Microphone
Microphone Element Dynamic with cardioid pattern
RF Carrier Power 10 mW
Audio Frequency Response 80 - 15,000 Hz
Audio Input Level 140 dB SPL (Maximum)
Modulation System PLL synthesizer
Battery 1 AA size alkaline battery, 1.5V
Battery Life Approx. 10 hours
Indicator Battery Status LED, 7 Segments LED
Finish Resin, coating
Dimensions Approx. 250 x 50 mm
Weight Approx. 245 g (with battery)

Wireless Receiver
Diversity Reception AC mains (supplied AC-DC adapter must be used)
Sensitivity 10uV at 45dBA S/N
Squelch (SQ) Tone SQ, Carrier SQ and Noise SQ
Audio Frequency Response 50 - 15,000Hz
Audio Output Level (Maximum) S4.10-RXA Balanced (XLR socket): 16dBu
                 Unbalanced (1/4" jack socket): 10dBu
Power Supply 11-18 VDC 300mA
Dimensions 215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC)
Weight 480 g
