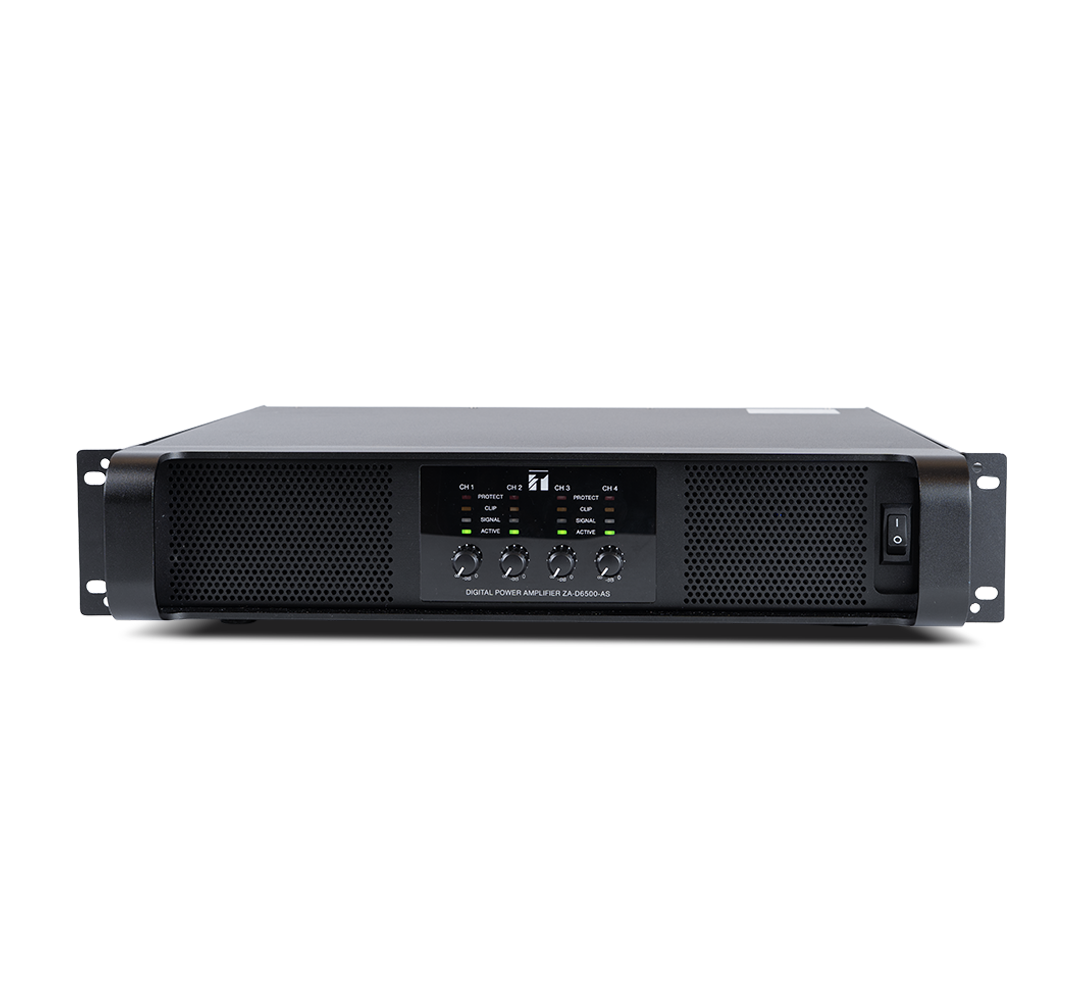

ZA-D6500-AS 1
The TOA ZA-D6500-AS 1 is 4-Channel Digital Power Amplifier features high power output. It delivers maximum 1000 W x 4 channels (4 Ω Outputs). Add additional, channel 1 and 2 or channel 3 and 4 can be a Bridge connection, allowing it to be used as a monaural amplifier, maximum 1300 W (8 Ω Output). This unit can be install to Rack System using EIA Standard (2U size).
|
Power Source |
220 V AC, 50/60 Hz |
|
Amplification System |
Class D |
|
Power Consumption |
IEC 62368-1 : 544 W |
|
Input |
CH 1 – 4 : 20 kΩ (balanced) / 10 kΩ (unbalanced), 0.775 V / 1.4 V (selectable), XLR-F connector |
|
Output |
LINK 1 – 4 : XLR-M connector OUTPUT 1 – 4 (Max) :4 channels : 650 W x 4 (8 Ω), 1000 W x 4 (4 Ω) 2 channels (BRIDGE) : 1300 W x 2 (8 Ω) NL4 speakON connector |
|
Frequency Response |
20 – 20,000 Hz, ±3 dB |
|
Total Harmonic Distortion |
0.3 % or less (1 kHz, Rated output) |
|
S/N Ratio |
95 dB or more |
|
Indicator |
Active, Signal, Clip, Protect |
|
Operating Temperature |
0 °C to +35 °C |
|
Operating Humidity |
90% RH or less (no condensation) |
|
Ventilation |
Fan Cooling |
|
Finish |
Front Panel : Steel Plate, Black, Paint Case : Steel Plate, Black, Paint |
|
Dimensions |
482 (W) x 107 (H) x 435 (D) mm (18.98” x 4.21” x 17.13”) |
|
Weight |
10.2 kg |
* 0 dB = 1 V
