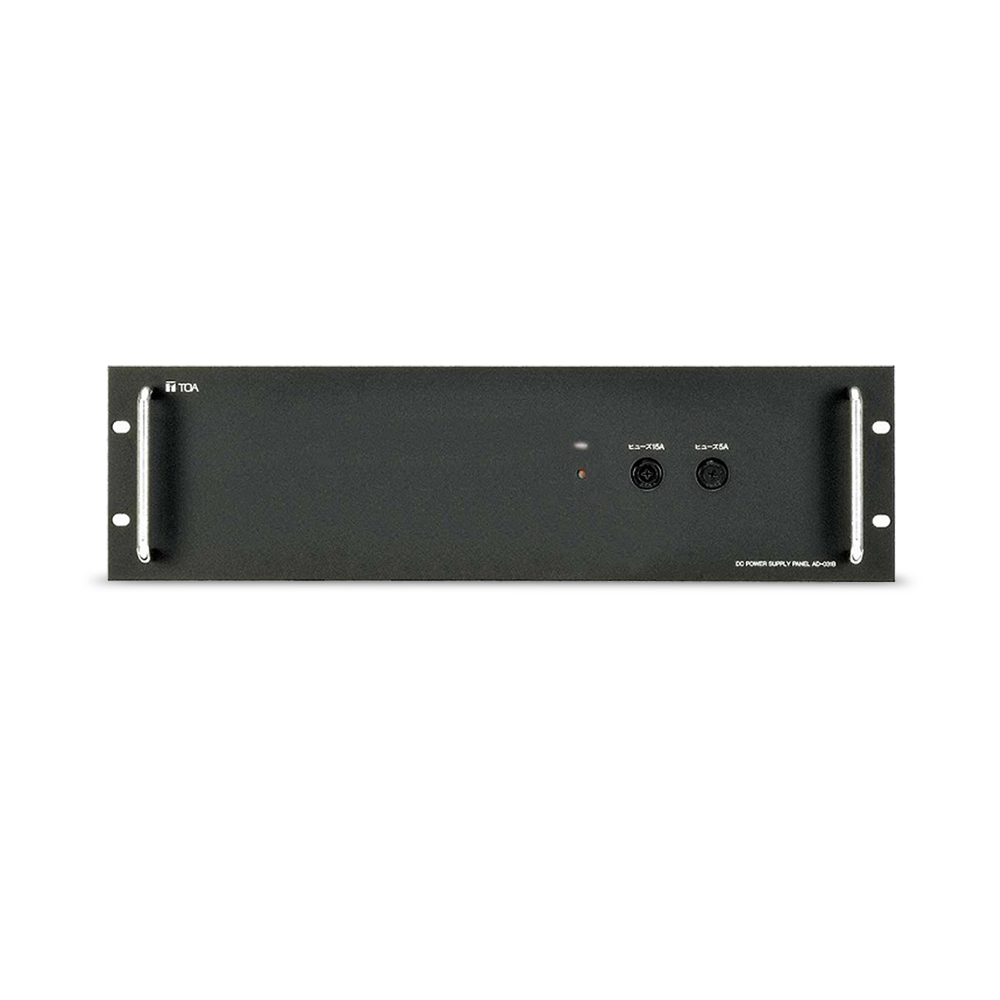

AD-031B DC Power Supply Panel

AD-031B DC Power Supply Panel

AD-031B DC Power Supply Panel

AD-031B 301H

The AD-031B DC power supply is EIA rack mountable (3-unit size) and provides DC power to DC-operated rack-mounted units.

Power Source 220 V AC, 50/60 Hz
Power Consumption 530 VA (rated output)
Input 24 V DC, M4 screw terminal
Output AC operation: 24 V DC ±0.5 V, 10 A, M4 screw terminal
DC operation: Voltage 1 V below input DC voltage, M4 screw terminal
Main Power Output 24 V DC ±0.5 V, 200 mA (provided only when oprated an AC)
M4 screw terminal
Finish Panel: Pre-coated steel plate, black, 30 % gloss, melamine-baked paint
Dimensions 483 (W) × 132.6 (H) × 316 (D) mm (19.02" × 5.22" × 12.44")
Weight 18.6 kg (41.01 lb)
Accessory Fuse (15 A) …1, Fuse (3 A) …1, Vinyl-covered tie …1, Cable set …1,
Power cord (2 m (6.56 ft)) …1, Rack mounting screw (with washer) …4
