VP-3154 Digital Power Amplifier 4X150W

VP-3154 Digital Power Amplifier 4X150W

VP-3154 Digital Power Amplifier 4X150W

VP-3154

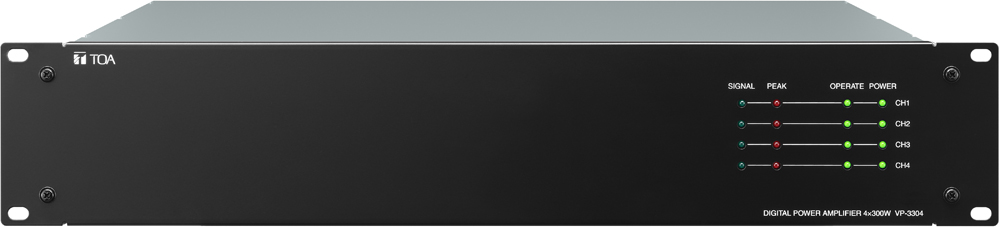

The VP-3154 is an Digital Power Amplifier used for the SX-2000, VX-2000 systems. It is a 2U rack-mount unit equipped with 4 channels of class-D digital power amplifiers, which contribute to energy-saving and lightweight design. The VP-3154 also features a front-mounted LED indicator for operating status indication and stand-by mode to be set for reducing stand-by power consumption. It requires a dedicated power supply unit VX-3000DS or VX-3150DS.

EN certification

Power Source 31 V DC (operating 20-34 V DC)
DC power in: M4 screw terminal, distance between barriers: 11 mm (0.43")
Amplification System Class D
Current Consumption 6 A (Rated Output Power), 0.6 A (Surveillance), 0.1 A (Standby)
at 31 V DC, 100 V line, each channels
Rated Output Power 150 W × 4 (at 100 V line and min. resistive and max. capacitive load)
105 W × 4 (at 70 V line and min. resistive and max. capacitive load)
75 W × 4 (at 50 V line and min. resistive and max. capacitive load)
(at AC Mains of VX-3000DS: 187 V - 253 V)
Output Voltage 100 V (70 V, 50 V: selectable by internal change)
Minimum Resistive Load 67 Ω (at 100 V line), 47 Ω (at 70 V line), 33 Ω (at 50 V line)
Maximum Capacitive Load 0.5 μF
Number of Channels 4
Input PA link: 4 channels, RJ45 connector
BGM: 4 channels, removable terminal block (5 pins)
BGM INPUT (H, C, E): -10 dB/0 dB (LINE, changeable), 22 kΩ, electronically balanced
BGM MUTE (G, +): no-voltage make contact input,
open voltage: 15 V DC, short-circuit current: 2 mA
Volume adjustment: 4 channels
Output PA out (Speaker line): removable terminal block (9 pins) × 1
Frequency Response 40 Hz - 16 kHz, ±3 dB (at 100 V line, 1/3 rated output)
Distortion 1 % or less (at 100 V line, rated output, 1 kHz)
Signal to Noise Ratio 80 dB or more (at 100 V line, A-weighted)
Crosstalk 60 dB or more (at 100 V line, A-weighted)
Panel Indicator Power indicator × 4 (Green), Operate indicator × 4 (Green),
Input signal indicator × 4 (Green), Peak signal indicator × 4 (Red)
Operating Temperature -5 ℃ to +45 ℃ (23 ゜F to 113 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Surface-treated steel plate, black, 30 % gloss, paint
Dimensions 482 (W) × 88.4 (H) × 390 (D) mm (18.98" × 3.48" × 15.35")
Weight 7.3 kg (16.09 lb)
Accessory Rack mounting screw (with washer) …4, Removable terminal plug (5 pins) …4,
Removable terminal plug (9 pins) …1
