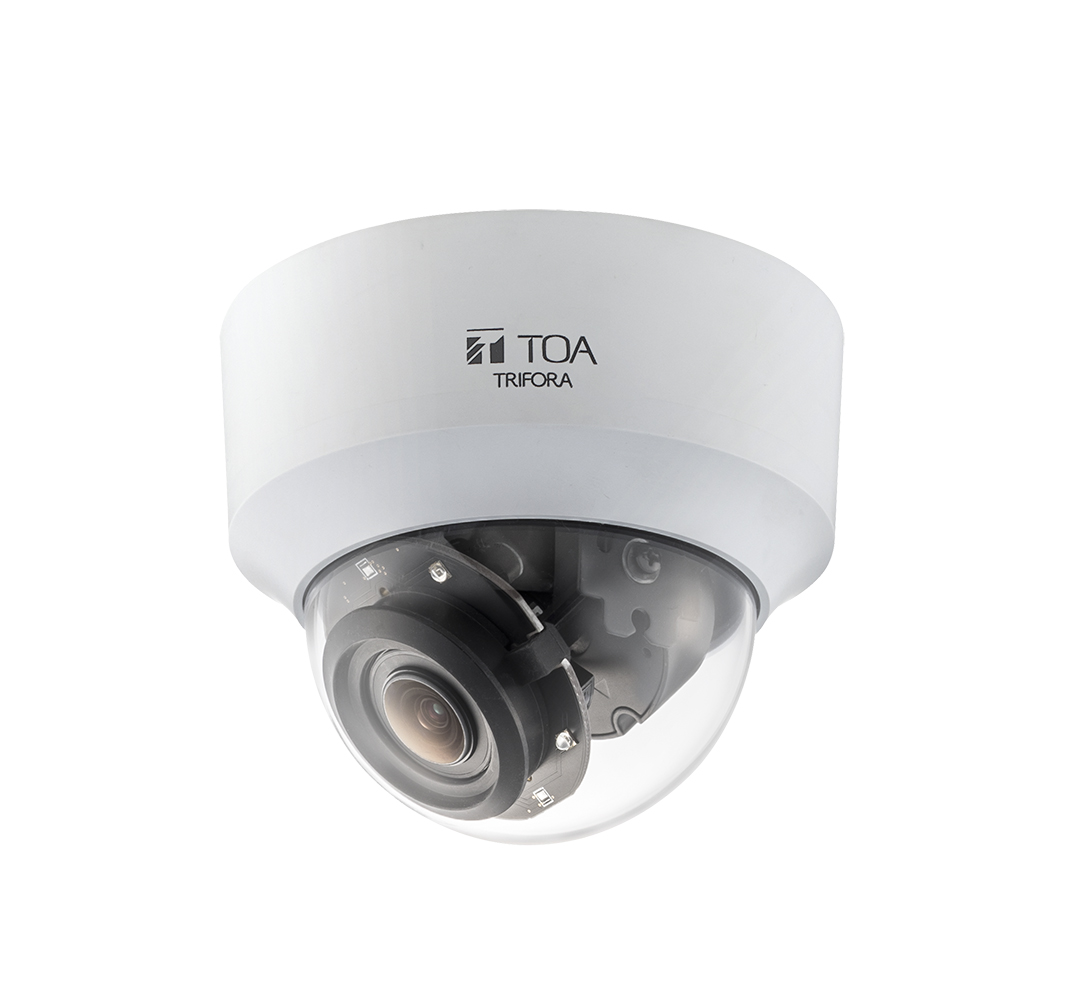

Z-NC5250R-AS

This is a PoE-compatible full HD network camera that uses the highly efficient H.265 image compression method. The camera is equipped with a 3.2x motorized varifocal lens with autofocus, so the zoom and focus can be remotely controlled from a computer or network recorder, making installation and adjustment easy. Equipped with a day and night function, it functions as a color camera (day mode) in bright places and a high-sensitivity black and white mode (night mode) in dark places. In night mode, the built-in infrared LED lighting turns on, allowing you to shoot in places with no lighting. It has audio input and output terminals, allowing two-way audio communication. The audio input terminal is equipped with phantom power, and sound can be collected by connecting a microphone directly to the camera. In addition, image recognition using deep learning technology can be operated as an extension of the camera body.

Power Source  PoE (IEEE802.3af)
Current Consumption  7.1 W: PoE (DC48 V, 147.9 mA)
Monitor Output  VBS1.0 V (p-p) 75ꭥ RCA pin jack composite signal
Voice Input  1 system unbalanced line/mic (switched by software) Ø3.5 mini jack (monaural)

Line: -10 dB (*1) Input impedance 10 kꭥ

Microphone: -60 dB (*1) Input impedance 2.2 kꭥ

Power supply for microphone: +15 V/for microphone unit N-MC10 (set with switch)
Audio Input

1 system -10dB (*1) Applicable load impedance 10 kꭥ or more Unbalanced

Ø3.5 mini jack (monaural)
Contact Input

1 systems, No-voltage make contact input, open voltage: 3.3 V DC

Short-circuit current: 10mA or less, loop resistance 200 ꭥ or less
Contact Output 1 system open collector output Withstand voltage: 30 V DC, Allowable current: 50 mA
