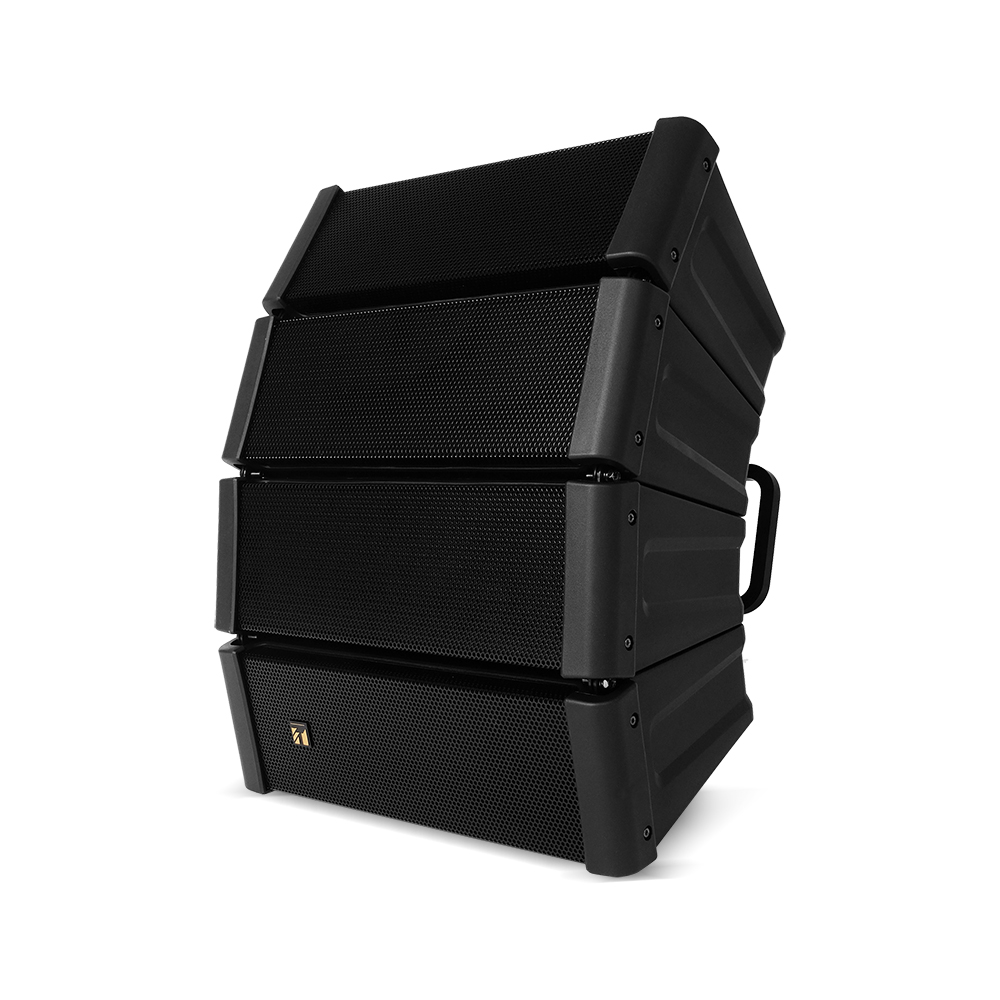

Z-5BW-HX2

The Z-5BW-HX2 is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The Z-5BW-HX2 is designed for outdoor use.

IP certification

Enclosure Sealed type
Power Handling Capacity Continuous: 200 W, Continuous program: 400 W (IEC 60268-5)
Rated Impedance 8 Ω
Sensitivity (1 W, 1 m) 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode)
Frequency Response 95 Hz - 20 kHz (-10 dB) (60° mode), 100 Hz - 20 kHz (-10 dB) (45° mode)
105 Hz - 20 kHz (-10 dB) (30° mode), 110 Hz - 20 kHz (-10 dB) (15° mode)
Crossover Frequency 4 kHz
Directivity Angle Horizontal: 100゜ (2 kHz or more)
Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more),
15゜ (3.2 kHz or more) variable
Speaker Component Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Water Protection IPX4 (Install with the every speaker module downward.)
Operating Temperature -15 ℃ to +50 ℃
Finish Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black, rust proof coating
Dimensions 408 (W) × 546 (H) × 342 (D) mm
Weight 16 kg
Accessory Hanging bracket …x2, Hex. wrench …x1
Option Matching transformer: MT-200
Speaker mounting bracket: ZY-PF1WP, ZY-CW1WP, ZY-WM1WP, ZY-WM2WP,
ZY-CN1B-WP
*(Factory Preset: 60° mode)
