Z-7BW-HX-AS

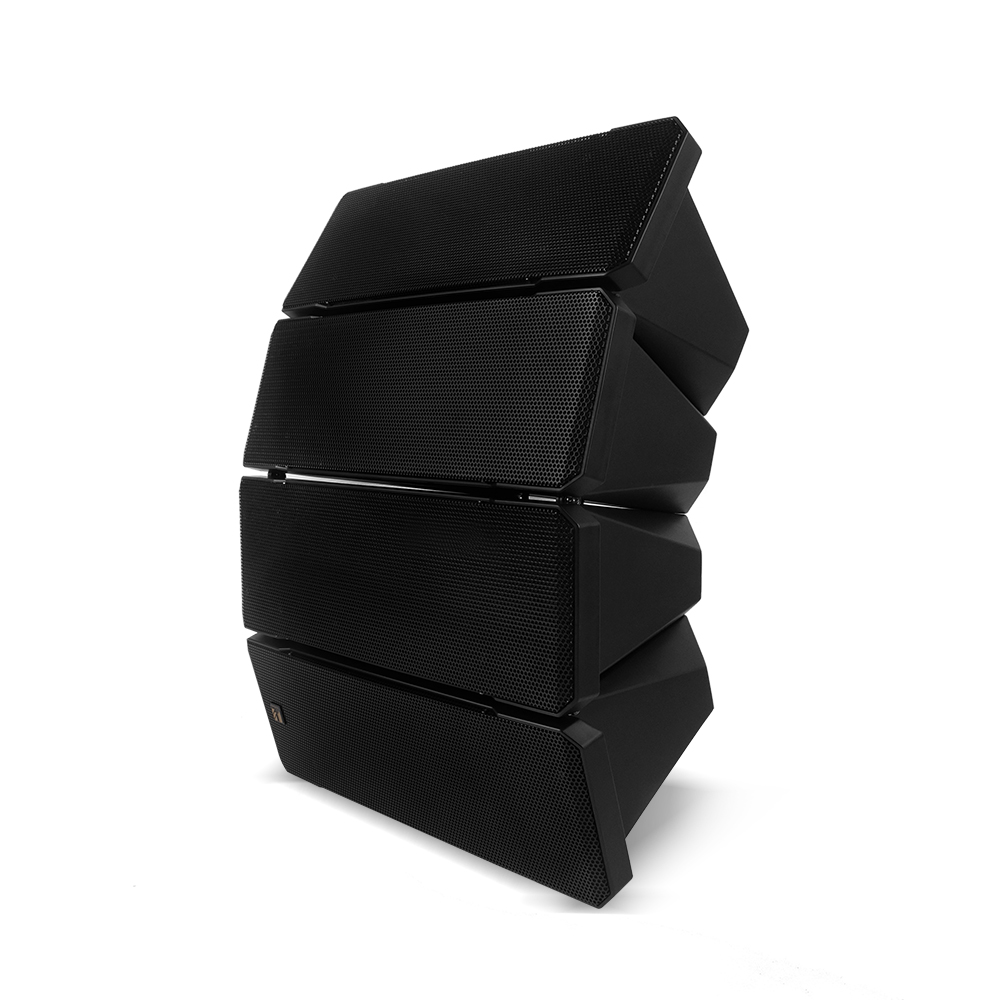

The Z-7BW-HX-AS is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The speaker is designed to be installed under the eaves when used outdoors.

IP certification

Enclosure Sealed type
Power Handling Capacity Continuous pink noise: 250 W (IEC60268-5: 350 W)
Continuous program: 750 W
Rated Impedance 8 Ω
Sensitivity 100 dB (1 W, 1 m)
Frequency Response 75 Hz - 20 kHz
Crossover Frequency 1.7 kHz
Directivity Angle Horizontal: 100゜
Vertical: Depending on directivity angle mode
Speaker Component Low frequency: 13 cm (5.5") cone-type × 8
High frequency: Wave front control horn with compression driver × 4
Input Terminal M4 screw terminal, distance between barriers: 9 mm (0.35")
Water Protection IPX4 (Install with every speaker module tilted downward from the horizontal.)
Finish Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black, rust proof coating
Dimensions 497 (W) × 664 (H) × 274 (D) mm (19.57" × 26.14" × 10.79")
Weight 30 kg (66.14 lb)
Accessory Terminal cover …1, Terminal cover mounting screw …4, Rubber packing …1
Option Matching transformer: ZT-200*
Matching transformer adapter: ZY-MT7
Speaker mounting bracket: HY-60DBW-AS, ZY-CN7BW-AS
When mounting the ZT-200 Matching Transformer to the speaker, an optional ZY-MT7-AS Matchting Transformer Adapter is required.
Note : Every speaker module must be aimed horizontally or down to keep the weather resistant capability.
