Z-DH502-AS

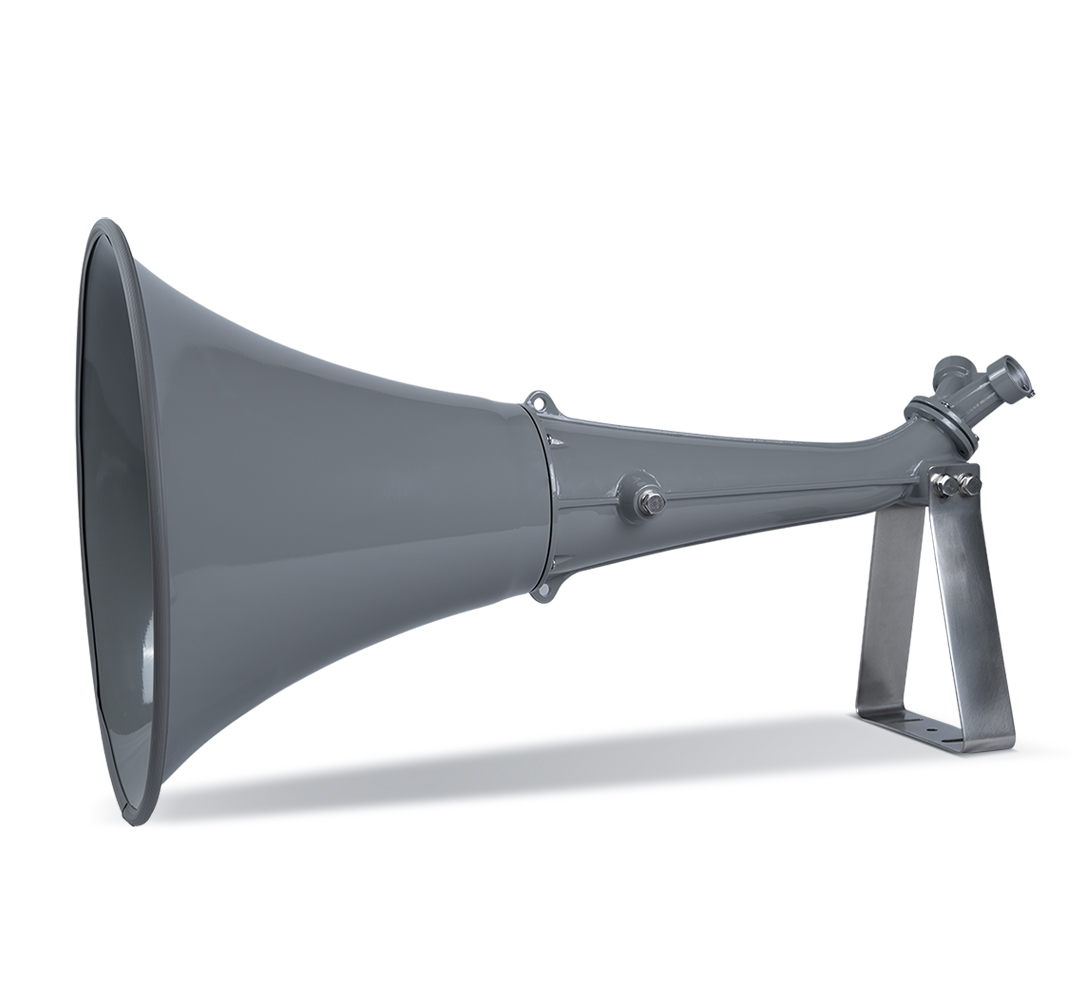

The Z-DH502-AS features a long horn which permits sounds to easily pass through and is ideal for providing public address information. It is designed to be used in conjunction with 2 driver units, and has an internal bird protector net to prevent insects and birds from getting into the unit

Applicable Drivers ZH-662D (MD)
Sound Pressure Level 110 dB (1 W, 1 m) (when operated with drivers)
Frequency Response 200 Hz – 8 kHz (when the ZH-662D (MD) unit is used)
Driver Coupling Adapter 1 – 3/8 18 threads (inch screw)
Variable Installation Angle Hor. : +15°, -15° ; Ver. : +15°, -15° (when locally procured mounting bracket is used)
IP rating IP65 for Drivers (When be installed to Horn) *
Finish Bell, Horn B and Adapter Y-Shaped : Aluminum, Grey, Powder coating
Mounting Braket : Stainless Steel, Natural
Dimensions Ø500 X 846 (D) mm (Ø19.69” X 33.31”)
Weight 5.7 kg (12.57 lb)
Accessories BH Screw M5x15 SUS 3-SEM …4 pcs, Rubber Gasket …1 pcs
