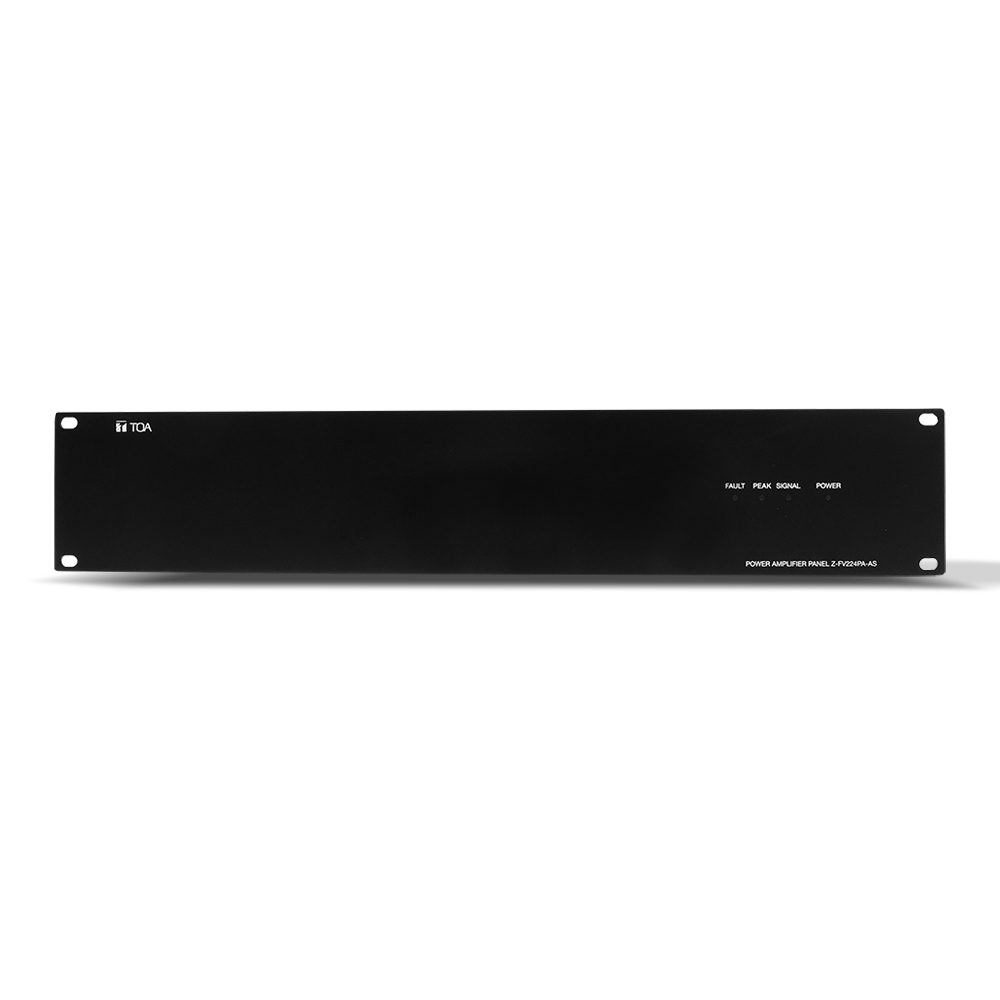

Z-FV224PA-AS *AS Model*

The Z-FV224PA-AS features 240W rated output with high capacity for audio requirement

Power Source

AC: 220 - 230 V AC, 50/60 Hz
DC: 24 V DC (operating range: 19.5 - 27 V)
      M4 screw terminal, distance between barriers: 12mm

Power Consumption AC at rated output: 565 W (condition: AC230V)
AC at no signal: 22 W
IEC60065: 245 W
Current Consumption DC at rated output: 15 A (condition: DC27V)
DC at no signal: 0.5 A
IEC60065: 5.8 A
Rated Output 240 W
Input 2 inputs, 0 dB*, 20 kΩ, balanced, removable terminal plug (3 pins)
Input module VP-200VX (Option)
Output Impedance 21 Ω (70 V), 42 Ω (100 V)
Speaker Output M4 screw terminal, distance between barriers : 12 mm
Control Output Fault ouput :   Make : Normal, Break : Error or Power Off
S/N Ratio Over 60 dB
Total Harmonic Distortion Under 1% (1 kHz, 1/3 rated output)
Frequency Response 80 Hz - 15 kHz, ±3 dB, 1 kHz
Ventilation Fan cooling
LED Indicator Power (Green), Signal (Green), Peak (Red), Fault (Red) (Light: Overheat)
Operating Temperature 0 ℃ to +40 ℃
Operating Humidity Under 90% RH (no condensation)
Finish Panel: Aluminum, black, alumite
Dimensions 482 (W) × 88.4 (H) × 337.2 (D) mm
Weight 13.3 kg
Accessory Removable terminal plug (3 pins) x 3, Instruction manual x 1
Option VP-200VX input module
