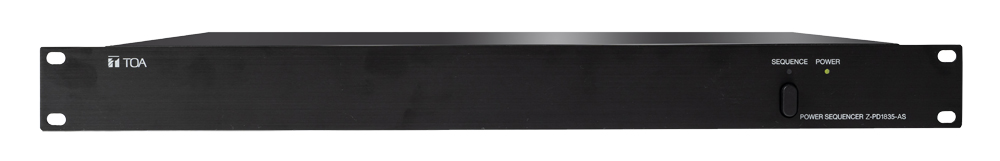

Z-PD1835-AS 1 Power Sequencer

Z-PD1835-AS 1 Power Sequencer

Z-PD1835-AS 1 Power Sequencer

Z-PD1835-AS 1

Extend the life of your equipment through proper power supply sequencing. The TOA power sequencer helps to prevent AC power breakers tripping and protects your equipment from high power surges. Using a power sequencer to ensure proper equipment shutdown, you can prevent noise generated by front-end equipment and also prevent damaging your speakers. Designed with 8 AC outputs, it has selectable delay of power on and off and can cascade up to 4 units. It is your ideal sequencing choice.

Power Source AC 220 V, 50/60 Hz, Max. 3500 W
Max. load 16 A
AC Outlet 8 AC outlets, Type C (2 pin plug), 10 A
Indicator Power Indicator light green
Sequence Indicator light green
Control 2 Input, 2 Output
   No-voltage make contact input, open voltage: 5 V DC,
   Short-circuit current: Under 5 mA, Removable terminal block (6 pins)
Cascade Max. 4 units
Step Timing 1 Second per AC outlet
Operating Temperature 0 °C to 40 °C
Operating Humidity Under 90 %RH (no condensation)
Finish Front Panel: Aluminum, Hairline, Painting Black
Case: Steel Plate, Painting Black
Dimensions 482 (W) × 44 (H) × 326.5 (D) mm
Weight 3.5 kg
Accessories Removable terminal plug (3 pins) x 2
