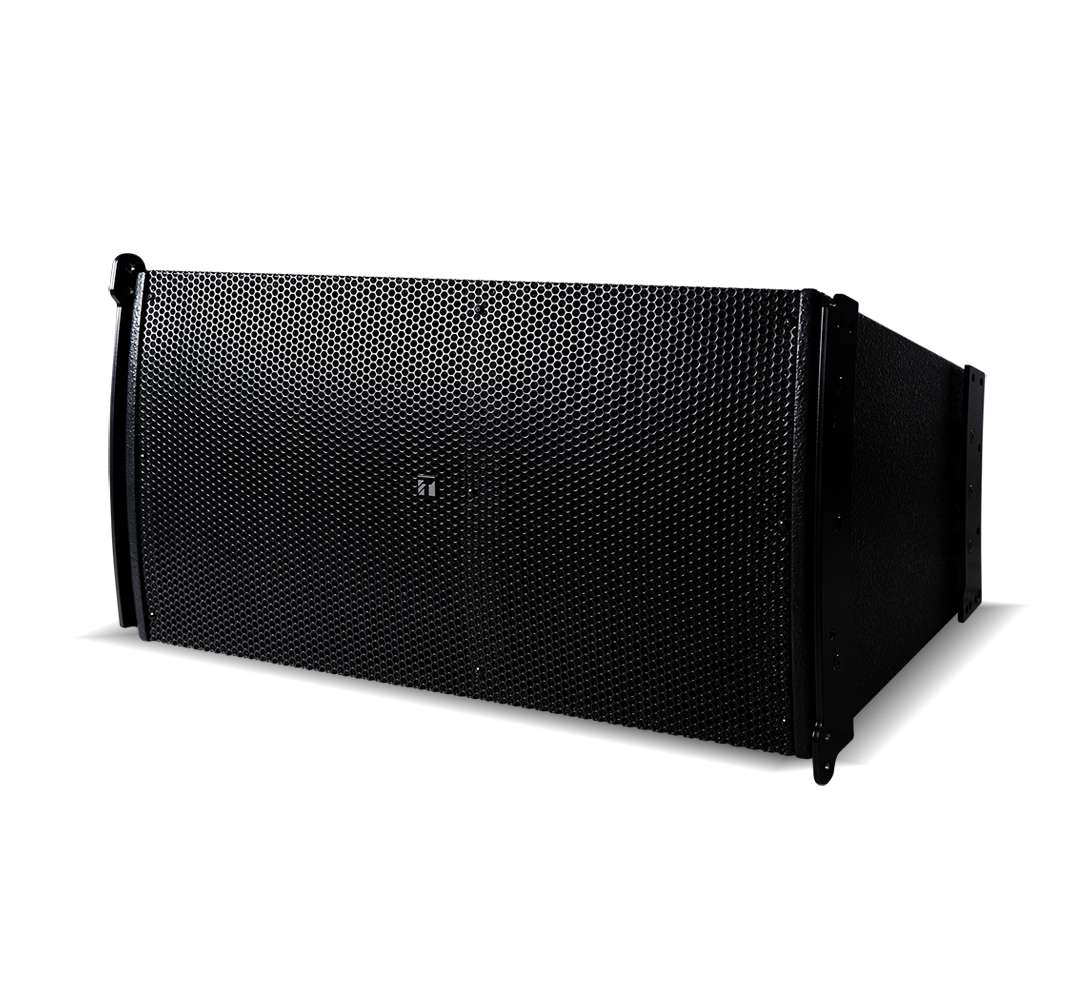

Z-SRX12S-AS
Featuring the line arrayed wave front control technology that creates sound fields with uniform sound pressure and high sound clarity, the Z-SRX12S-AS is a two-way line array speaker ideal for long distance sound transmission. It satisfies the water-protection requirements set down in the IPX4 Standard. The Z-SRX12S-AS employs the multi-amplifer drive system. Recommended digital speaker processor is the DP-SP3 (option).
|
Enclosure |
Bass-reflex type |
|
Power Handling Capacity |
Continuous program Low frequency: 600 W, High frequency: 240 W |
|
Rated Impedance |
Low frequency: 8 ꭥ, High frequency: 16 ꭥ |
|
Sensitivity |
Low frequency: 98 dB (1 W, 1 m), High frequency: 110 dB (1 W, 1 m) |
|
Frequency Response |
50 Hz – 20 kHz (when recommended parameters are applied by the optional DP-SP3) |
|
Crossover Frequency |
1 kHz (when recommended parameters are applied by the optional DP-SP3) |
|
Directivity Angle |
Horizontal: 90°, Vertical: 15° |
|
Speaker Component |
Low frequency: 30 cm cone-type High frequency: Wave front control horn 90° (horizontal) × 15° (Vertical) + compression driver × 2 |
|
Connected Cable |
Direct cable withdrawal from internal speaker: Ø8.6 mm, Conductor cross section: 1.25 mm2 , 4-core cable, 3 m |
|
Operating Temperature |
-10 °C to +50 °C |
|
Water Protection |
IPX4 |
|
Finish |
Enclosure: Wood, black, urethane coating Front grille: Punched stainless steel, black, paint |
|
Dimension |
740 (W) × 433 (H) × 467 (D) mm (excluding connected cable) |
|
Weight |
55 kg (including accessories) |
|
Accessory |
Joint plate ···2, Joint plate mounting bolt (M10) ···16 |
|
Option |
Ringging frame: SR-RF12WP Digital speaker processor: DP-SP3 |
