Z-SS1010R *AS Model*

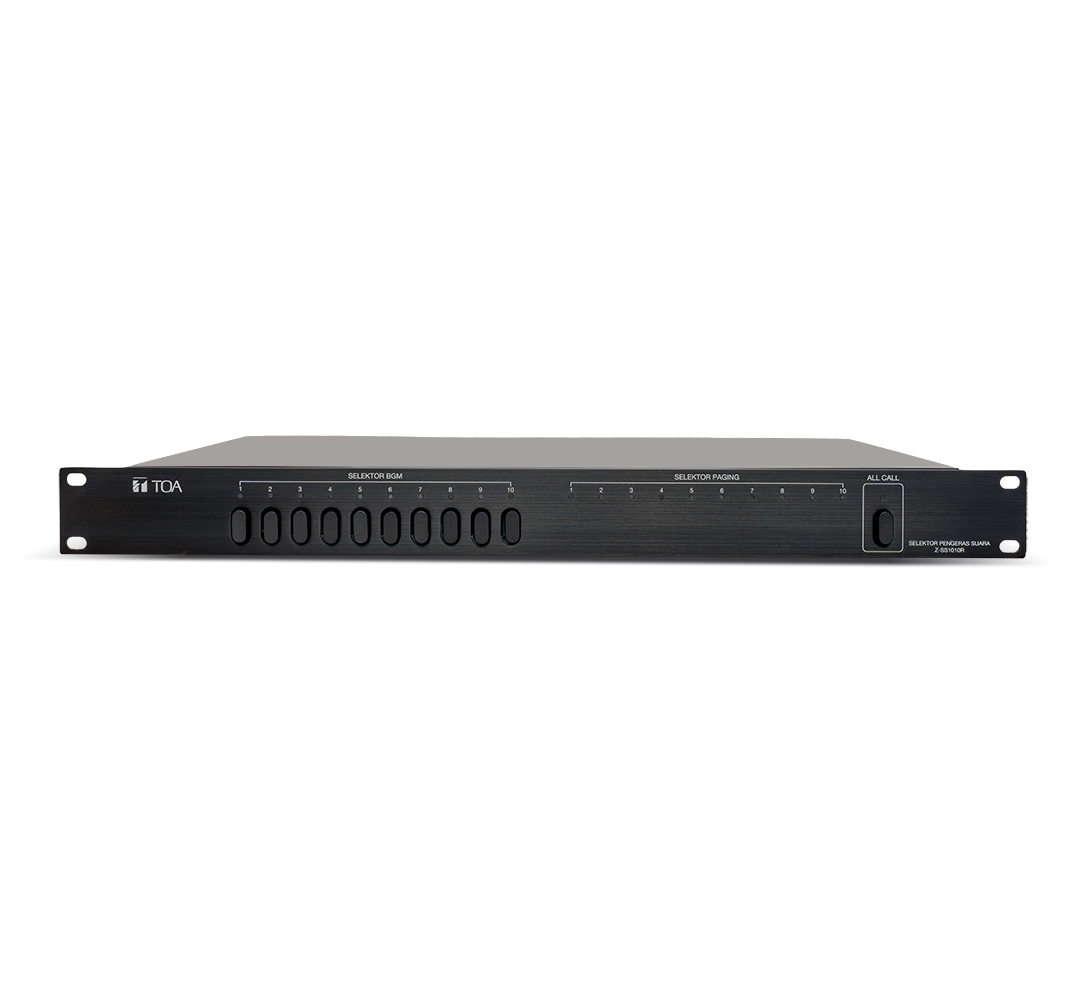

TOA Speaker Selector Z-SS1010R is a 10 zone BGM or 10 zone paging speaker selector. This highly efficient speaker selector can be installed with public address system in schools, malls, offices and places that requires the selection of speakers.
| Voltage Source | 24V DC | |
|---|---|---|
| Current Consumption | 0.4 A DC | |
| Inputs | 10 Inputs BGM / Paging | |
| 1 Link as Input / Output | ||
| Outputs | 10 Outputs with 3 wire R-H-C, each output max. 480W | |
| Control Switch | Front | 10 BGM Selectors |
| 1 All Call Selector for All paging | ||
| Rear | 1-10 Paging Controls In | |
| All Paging Control In for All Paging | ||
| Indicator LED | 10 BGM Selector LEDs | |
| 10 Paging Selector LEDs | ||
| 1 All Call LED | ||
| Operating Temperature | 0 °C to 40 °C | |
| Finish | Front Panel: Aluminum Hair Line, Etching Black Case: Steel Plate, Painting Black |
|
| Dimensions | 420 (W) × 44 (H) × 320 (D) mm | |
| Weight | 3.2 kg | |
| Accessories | 6P Connectors x 12 pcs, 2P Connectors x 1 pcs | |
