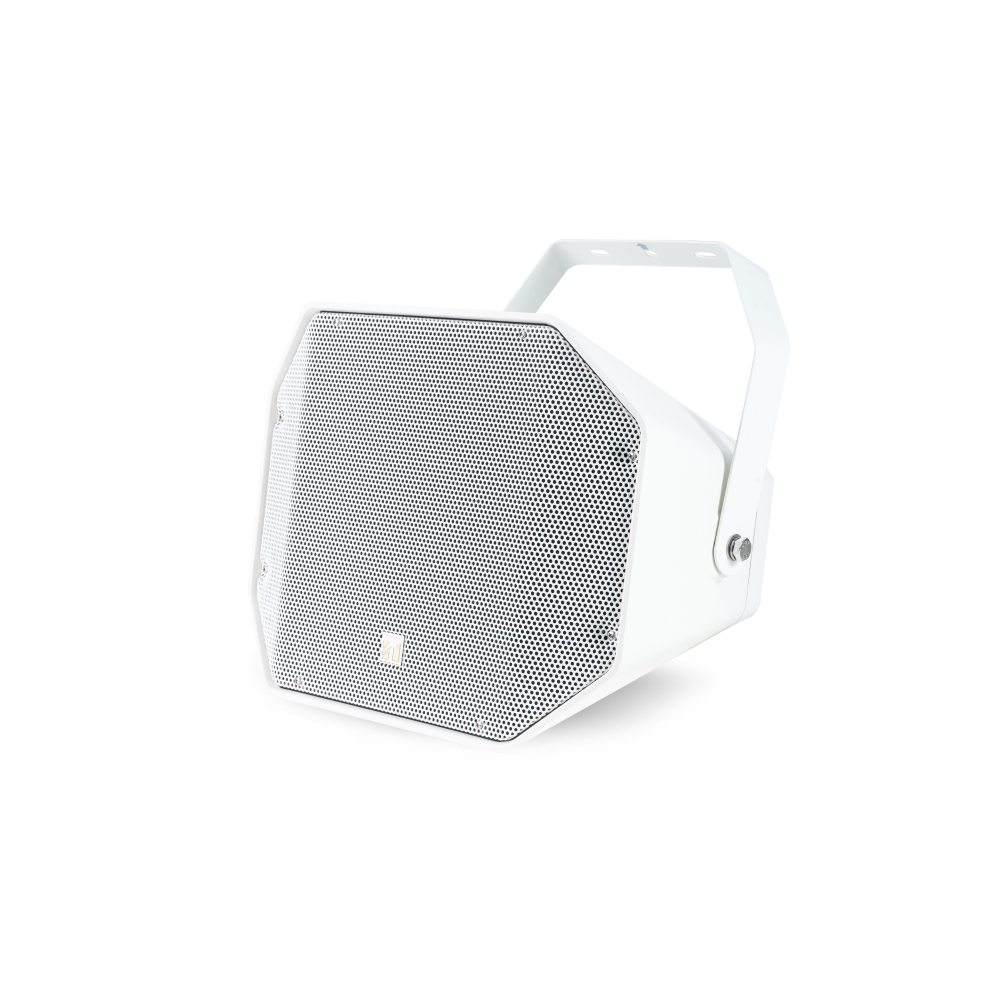

ZS-760W-AS

The ZS-760W is a compact 2-way weatherproof speaker system designed for high efficiency, high power input handling capacity, and is a high intelligible speaker suited for public address announcement and BGM application in a fully outdoor environment. Being IP-66 certified, external speaker component finished to ensure the unit's weatherproof ability and special paint coat prevents color degradation, ensuring it's long-lasting exterior condition. This model is designed with a rotary switch that facilitates hassle-free impedance change.

IP certification






Rated Input 60 W (high impedance)
Rated Impedance 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
Sensitivity 100 dB (1 W, 1 m)
Maximum Sound Pressure Level 117 dB (60W, 1 m)
Frequency Response 100 - 20 kHz
Crossover Frequency 2.5 kHz
Directivity Angle Horizontal: 90° ; Vertical: 80°
Speaker Component Low Frequency: 16 cm cone-type
High Frequency: 2.5 cm dome tweeter
Dust/Water Protection IP 66
Connection Speaker Cord (Hot: Black ; Com: White)
Finish Enclosure: ABS, White, paint coating
Punched net: Surface treated steel plate, White, paint coating
Bracket: Stainless steel, White, powder coating
Dimensions 388 (W) × 310 (H) × 367 (D) mm
Weight 7.4 kg
Option Pole Mounting Bracket: SP-131
Speaker Mounting Bracket: SP-201
Pole Band: YS-60B
Speaker Stand: ST-34B
