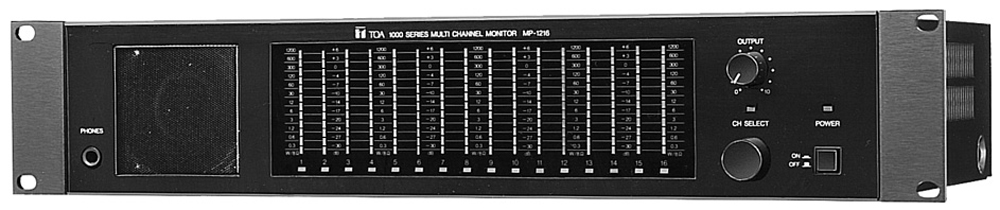

MP-1216
The signal level meter allows simultaneous monitor of 16 channels per unit. Any of the high-impedance speaker line output, low-impedance speaker line output, and line level output can be monitored by connecting it to the corresponding input. One of the 16 channels can be monitored with an internal speaker or headphone. By connecting two MP-1216 units, a maximum of 32 channels can be monitored.
| Power Requirement | AC mains, 50/60 Hz |
|---|---|
| Power Consumption | 21 W (120 V version) 25 W (220 - 240 V version) |
| Max. Display Level | Speaker High impedance: 100 V Low impedance: 1200 W / 8 Ω Line: +10 dB (2.45 V) |
| Level Meter | 12-point display, -30 dB 〜 +6 dB (0.3 W 〜 1200 W / 8 Ω) |
| Speaker Output | Max. 3 W |
| Headphone Output | 8 Ω |
| Finish | Front panel: Alumite, black |
| Dimensions | 482.6 (W) × 88.4 (H) × 312.7 (D) mm (19" × 3.48" × 12.31") |
| Weight | 5.3 kg (11.68 lb) |
| Accessory | AC fuse, 250 V 1 A (120 V version)…1, AC fuse, 250 V T250 mA (220 - 240 V version)…1, Rack mounting screw…4 |
