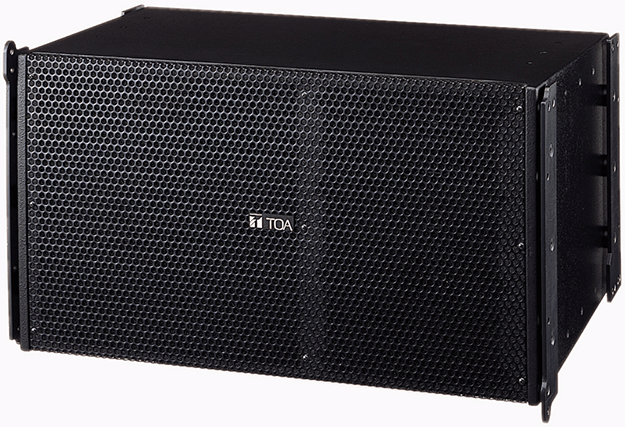

SR-A12L
Featuring the line arrayed wave front control technology that creates sound fields with uniform sound pressureand high sound clarity, the SR-A12L is a two-way line array speaker ideal for long distance soundtransmission. The SR-A12L employs the multi-amplifier drive system. Recommended digital speaker processor is the DP-SP3 (option).
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous program Low frequency: 450 W, High frequency: 180 W |
| Rated Impedance | Low frequency: 8 Ω, High frequency: 16 Ω |
| Sensitivity | Low frequency: 98 dB (1 W, 1 m), High frequency: 110 dB (1 W, 1m) |
| Frequency Response | 50 Hz - 20 kHz (when recommended parameters are applied by the optional DP-SP3) |
| Crossover Frequency | 1 kHz (when recommended parameters are applied by the optional DP-SP3) |
| Directivity Angle | Horizontal: 90゜, Vertical: 5゜ |
| Speaker Component | Low frequency: 30 cm cone-type High frequency: Wave front control horn 90%%d (horizontal) × 5%%d (vertical) + compression driver × 2 |
| Input Connector | M4 screw terminal, distance between barriers: 10 mm and Neutrik NL4MPXX × 2 |
| Finish | Enclosure: Plywood, black, paint Front grille: Punched steel plate, black, acrylic paint |
| Dimensions | 740 (W) × 433 (H) × 469 (D) mm |
| Weight | 49 kg (including accessories) |
| Accessory | Joint plate …2, Joint plate mounting bolt (M10) …16 |
| Option | Rigging frame: SR-RF12 Digital speaker processor: DP-SP3 |
