VP-2064

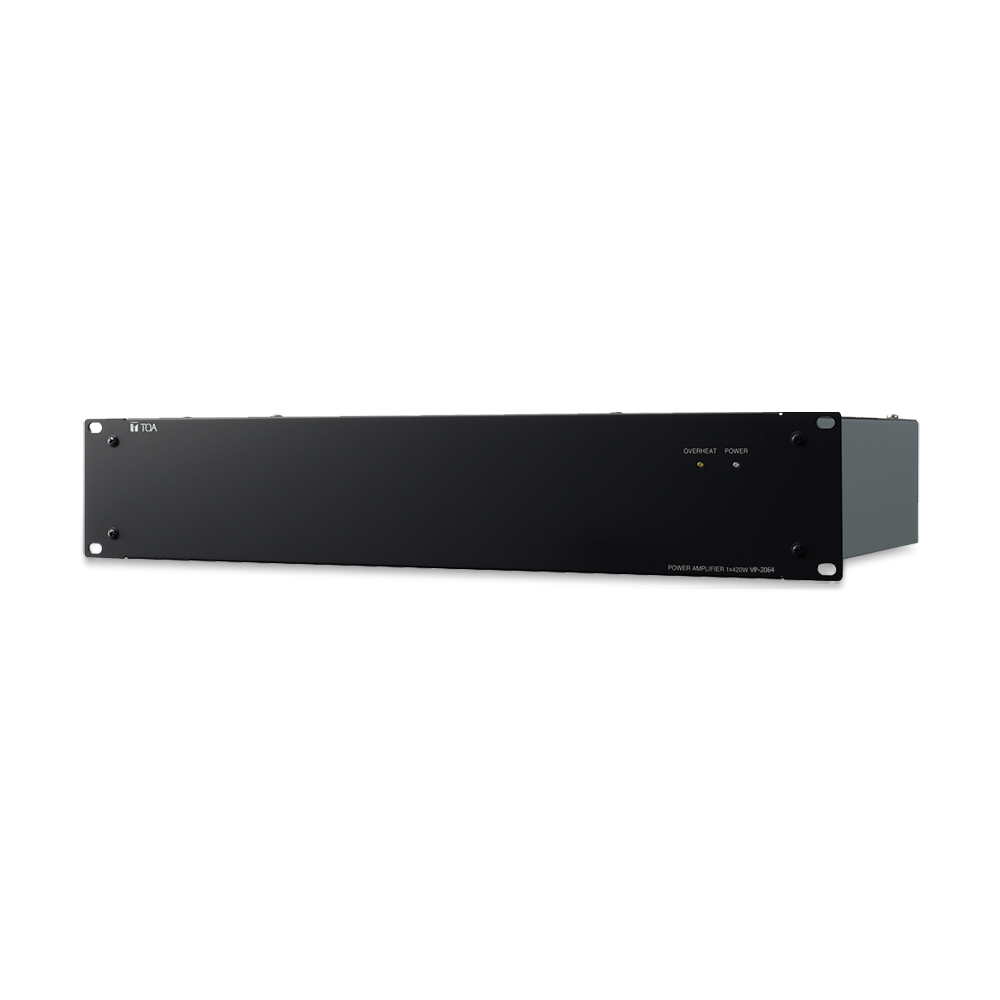

The VP-2064 Power Amplifier features a 60 W-by-4 channels configuration, and uses the VP-200VX Power Amplifier Module per channel.

EN certification

Power Source 28 V DC (operating range: 20 - 40 V DC)
M4 screw terminal, distance between barriers: 12 mm
Current Consumption 4.8 A in total (EN60065)
Rated Output Power 60 W × 4 (at min. resistive and max. capasitive load)
Output Power (at AC Mains: 195.5 V) 45 W × 4 (at min. resistive and max. capasitive load)
Output Voltage 100 V (70 V, 50 V: selectable by internal wiring change)
Minimum Resistive Load 167 Ω (at 100 V), 83 Ω (at 70 V), 41 Ω (at 50 V)
Maximum Capacitive Load 0.125 μF (at 100 V), 0.25 μF (at 70 V), 0.5 μF (at 50 V)
Number of Channels 4
Input Specified by input module VP-200VX
Number of Module Slots 4, usable module: VP-200VX
Output Power amplifier output (speaker line):
M3.5 screw terminal, distance between barriers: 8.8 mm
Frequency Response 40 Hz - 16 kHz, ±3 dB (at 1/3 rated output)
Distortion 1 % or less (at rated output, 1 kHz)
S/N Ratio 80 dB or more
Panel Indicator Channel power indicator: 4 channels, dual colour LED
Overheat indicator: Yellow LED
Operating Temperature 0 ℃ to +40 ℃
Finish Panel: Surface-treated steel plate, black, 30 % gloss, paint
Dimensions 482 (W) × 88.4 (H) × 345 (D) mm
Weight 11.2 kg
Accessory Rack mounting screw…4, Fiber washer…4
