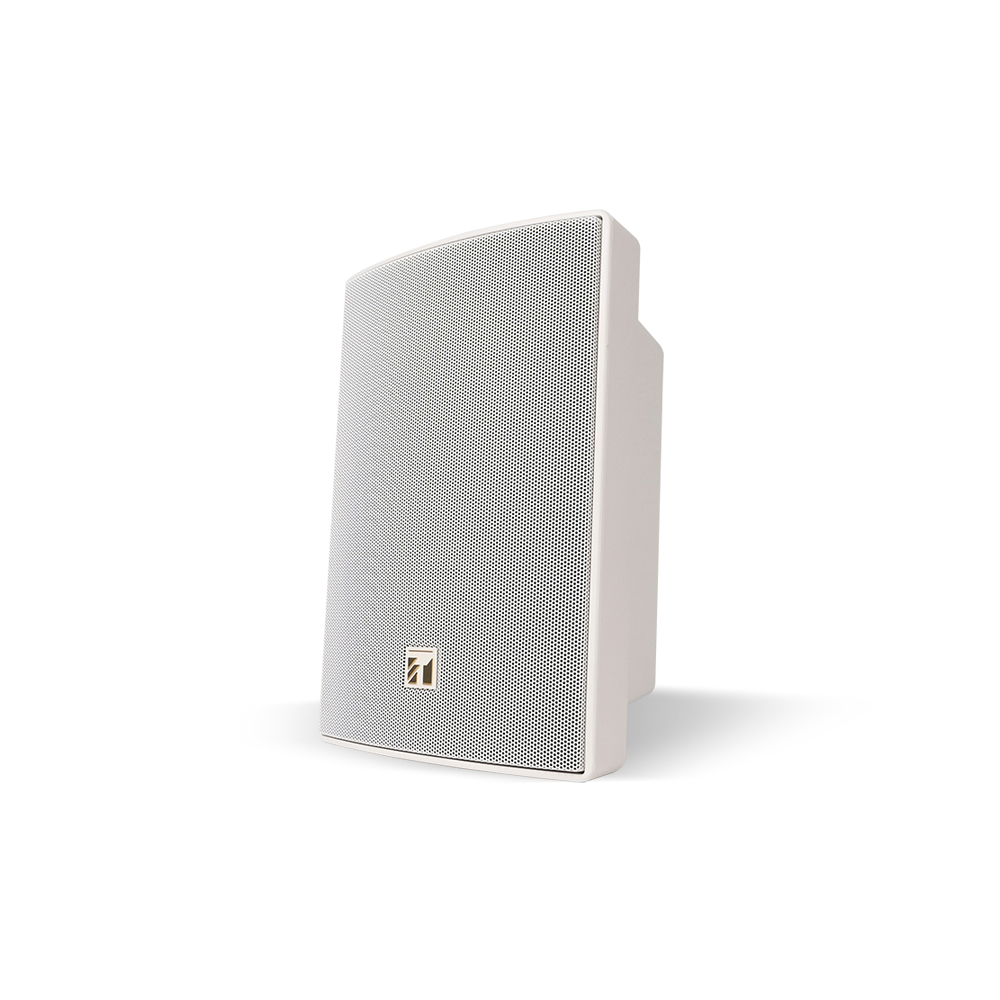

ZS-1030W
The ZS-1030W is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The ZS-1030W can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
| Rated Input | 30 W |
|---|---|
| Rated Impedance | 8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) |
| Sound Pressure Level | 90 dB (1 W, 1 m) |
| Frequency Response | 70 Hz - 20 kHz |
| Speaker Component | 12 cm cone-type + dome-type |
| Water Protection | IPX4 (can be installed vertically or horizontaly*) |
| Finish | Enclosure: ABS resin, white, paint Grille: Surface treated steel plate, white, powder coating |
| Dimension | 196 (W) × 290 (H) × 150 (D) mm (unit only) |
| Weight | 2.5 kg |
