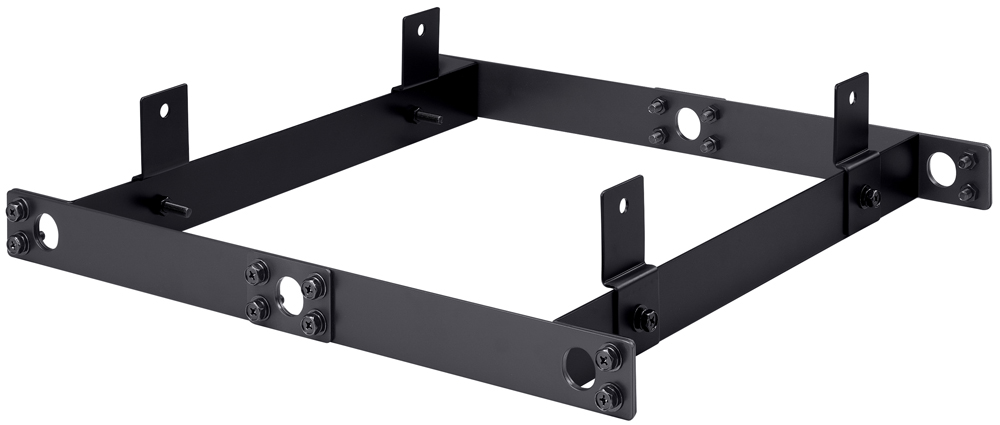

ZY-PF1B
The ZY-PF1B is used exclusively to suspend the Z-5-HX2 speaker system from the ceiling. The Z-120FB series Subwoofer can be suspended using this frame and the frame's supplied mounting brackets. This bracket is designed for indoor use.
| Finish | Steel plate, black, semi-gloss paint |
|---|---|
| Dimensions | 550 (W) × 50 (H) × 512 (D) mm |
| Weight | 3.6 kg |
| Accessory | Subwoofer mounting bracket …4, Bracket fixing bolt (M8) with washer …4, Subwoofer mounting bolt (M8) with washer …4, Bracket fixing nut (M8) …4, Bracket fixing washer (M8) …4 |
