ZY-PF7B-AS

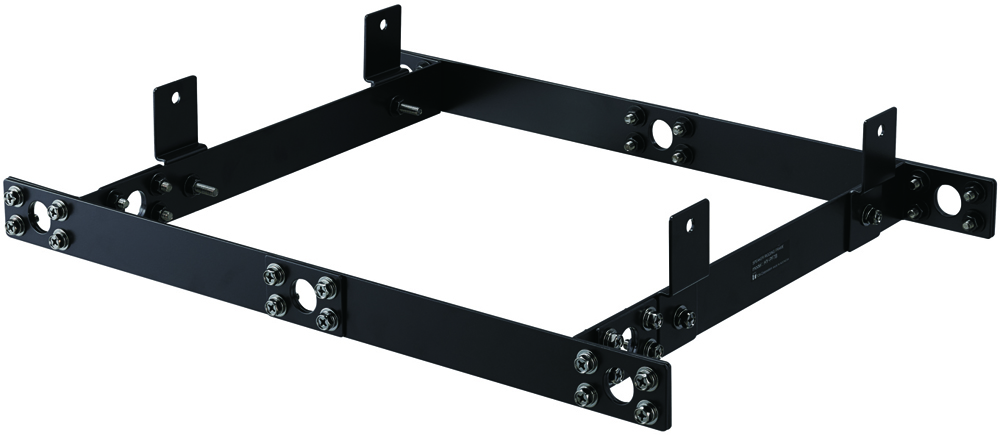

The ZY-PF7B-AS is used exclusively to suspend the Z-7B-HX speaker system from the ceiling. The FB-150B Subwoofer can be suspended using this frame and the frame's supplied mounting brackets.

Finish Steel plate, black, semi-gloss, paint
Dimensions 645 (W) × 50 (H) × 472 (D) mm (25.39" × 1.97" × 18.58")
(excluding projection)
Weight 4 kg (8.82 lb)
Accessory Subwoofer mounting bracket …1 set, Bracket mounting bolt …1 set
