ZS-2360-AS

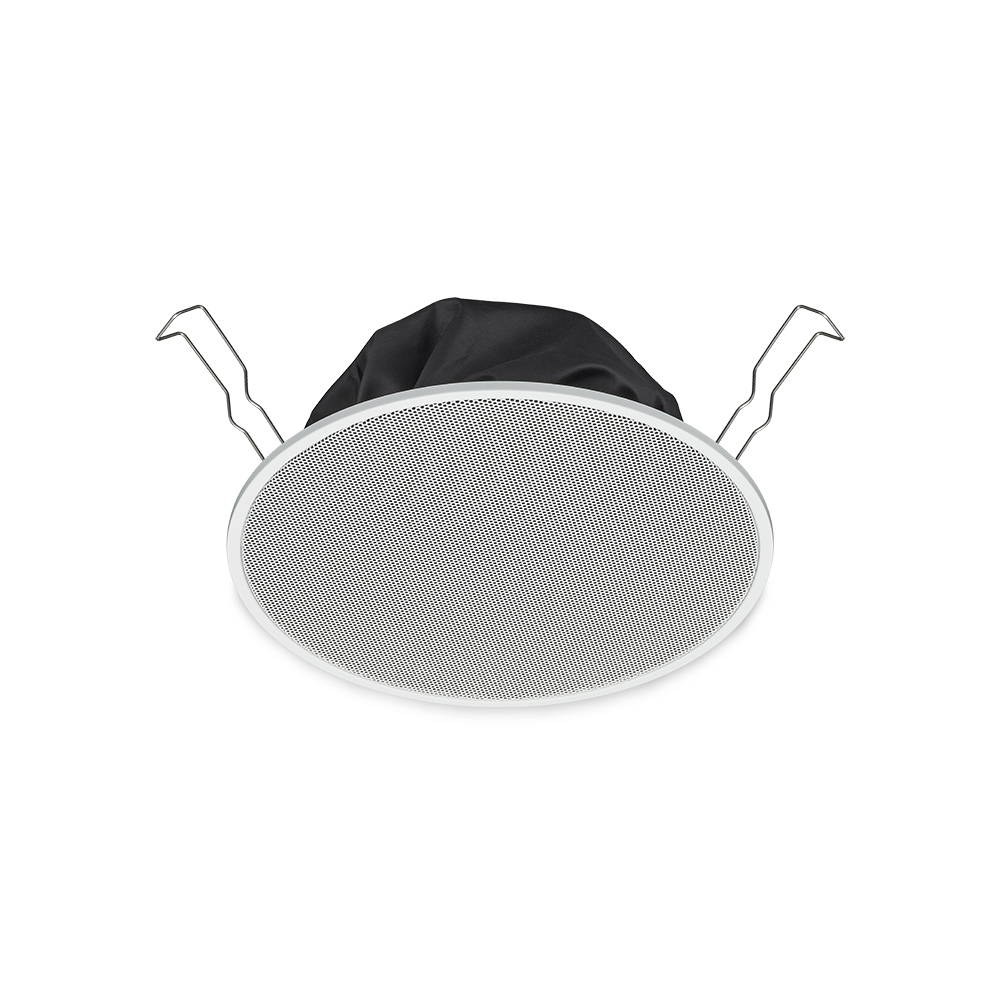

The ZS-2360-AS Ceiling Mount Speaker is ideal for use in a voice alarm system or BGM system. It easy mounting to the ceiling. The input impedance can be easily changed by changing the tap position of transformer.
| Rated Noise Power | 6 W (100 V Line), 3 W (70 V Line) |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 94 dB (1 W, 1 m) (330 Hz - 3.3 kHz, pink noise) |
| Frequency Response | 45 Hz - 20 kHz (pink noise -20dB) |
| Speaker Component | 16 cm (6") cone-type |
| Dimensions for Fixing Hole | Mounting hole : φ200 ±3mm Ceiling thickness 5-25 mm (0.2"-0.98") |
| Speaker Mounting Method | Suspension Spring |
| Applicable Cable | Solid wire: φ0.5 - φ3.0 mm2 (AWG20-12) |
| Connection | Push wire connection (bridging terminal 2-branch type) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), paint Grille: Steel net, white (RAL 9016 equivalent), paint |
| Dimensions | φ200 × 5 (exposed section) + 71 (D) mm (φ7.87" × 0.19" + 2.80") |
| Weight | 900g (1.98 lb) |
