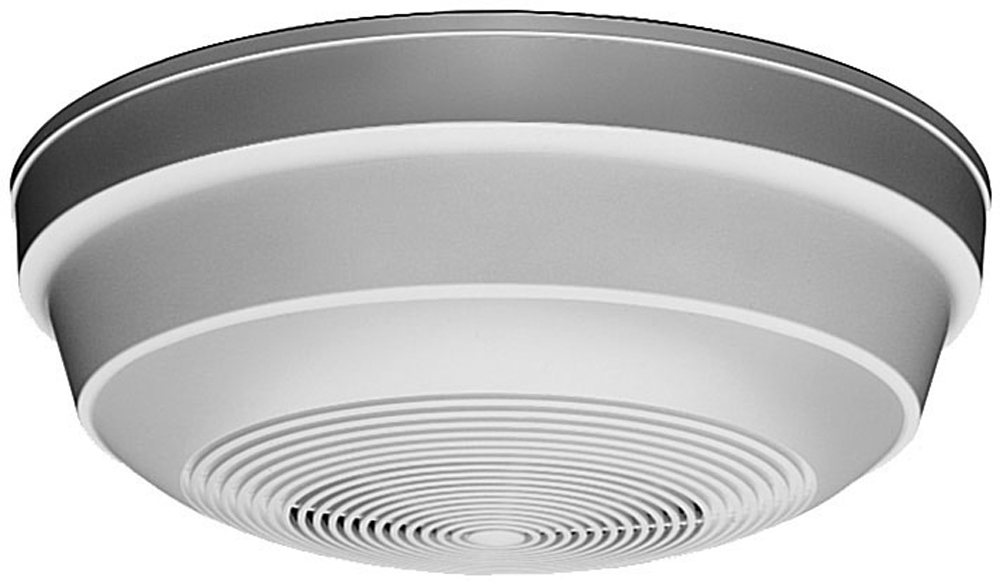

ZS-2668
The ZS-2668 speaker can be mounted (exposed installation) to the ceiling where flush mounting is impossible. It can be easily installed thanks to its spring catch method. Push-in connector allows quick wire connection, and speaker lines can be bridged by bridging terminals. The supplied bracket can be mounted to a flush-mount pull box.
| Rated Input | 6 W (for 100 V Line), 3 W (for 70 V Line) |
|---|---|
| Rated Impedance | 100 V Line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), (6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internal wiring must be changed) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), (6.7 kΩ (0.8 W), 13 kΩ (0.4 W): Internal wiring must be changed) |
| Sound Pressure Level | 90 dB (1 W, 1 m, 330 Hz - 3.3 kHz Pink noise) |
| Frequency Response | 100 Hz - 16 kHz |
| Speaker Component | 12 cm dynamic cone-type speaker |
| Speaker Mounting Method | Spring catch Applicable Cable 600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.2 mm 7-core twisted copper wire: 0.75 - 1.25 m㎡ |
| Connection | Push-in connector (Bridging terminal-2 branch type) |
| Finish | Baffle: ABS resin, off-white (RAL 9010 or equivalent color) |
| Dimensions | φ260 × 92 (D) (Exposed section) mm |
| Weight | 820 g (Bracket included) |
