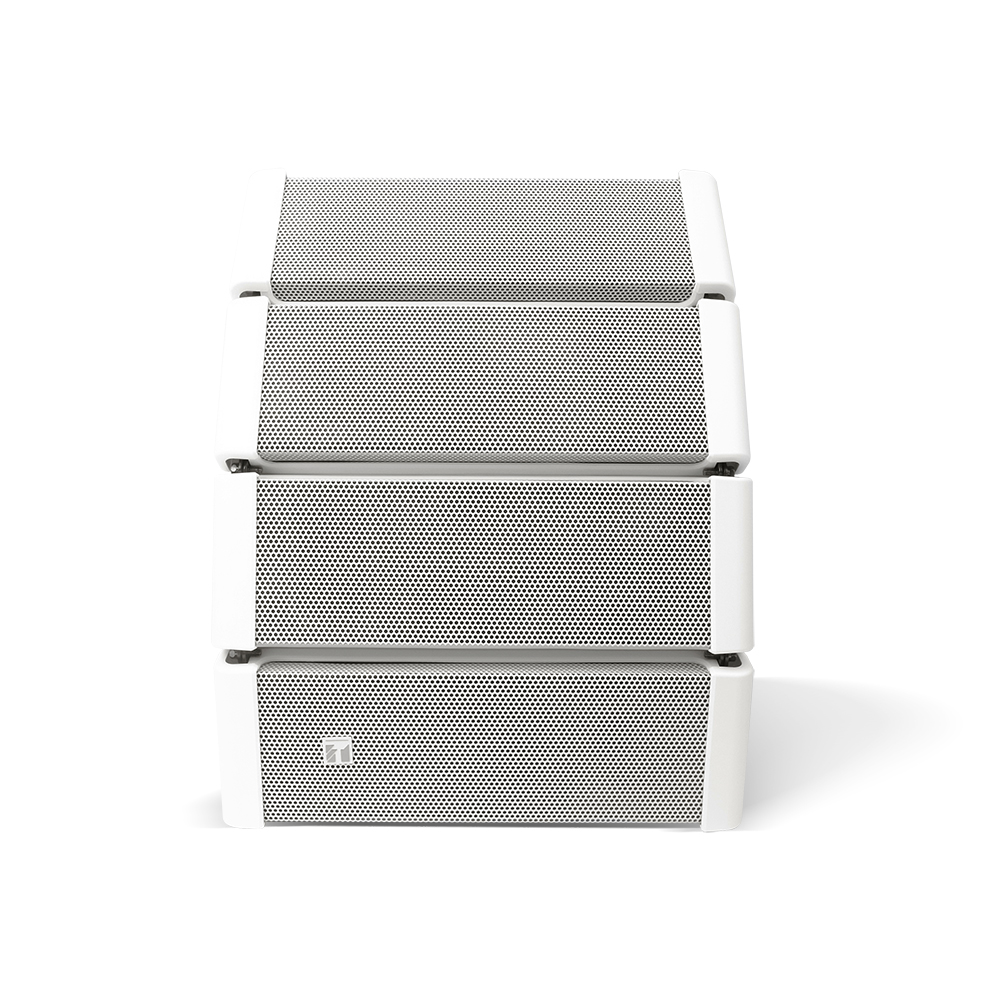

Z-5W-HX2

The Z-5W-HX2 is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The Z-5W-HX2 is designed for indoor use.

Enclosure Bass-reflex type
Power Handling Capacity Continuous: 200 W, Continuous program: 400 W (IEC 60268-5)
Rated Impedance 8 Ω
Sensitivity (1 W, 1 m) 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode)*
Frequency Response 70 Hz - 20 kHz (-10 dB) (60° mode), 75 Hz - 20 kHz (-10 dB) (45° mode)
80 Hz - 20 kHz (-10 dB) (30° mode), 85 Hz - 20 kHz (-10 dB) (15° mode)
Crossover Frequency 4 kHz
Directivity Angle Horizontal: 100゜ (2 kHz or more)
Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more),
15゜ (3.2 kHz or more) variable
Speaker Component Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12
Input Terminal Speakon NL4MP × 2 and M4 screw terminal
Finish Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white
Dimensions 408 (W) × 546 (H) × 342 (D) mm
Weight 16 kg
Accessory Hanging bracket …x2, Hex. wrench …x1
Option Matching transformer: MT-200
Speaker mounting bracket: ZY-PF1W, ZY-CW1W, ZY-WM1W, ZY-WM2W, ZY-CN1W
Speaker stand adapter: ZY-ST1
* Factory preset : 60° mode
